Home >> Chevrolet >> 2002 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> HVAC Systems - Manual >> HVAC Control Module C2

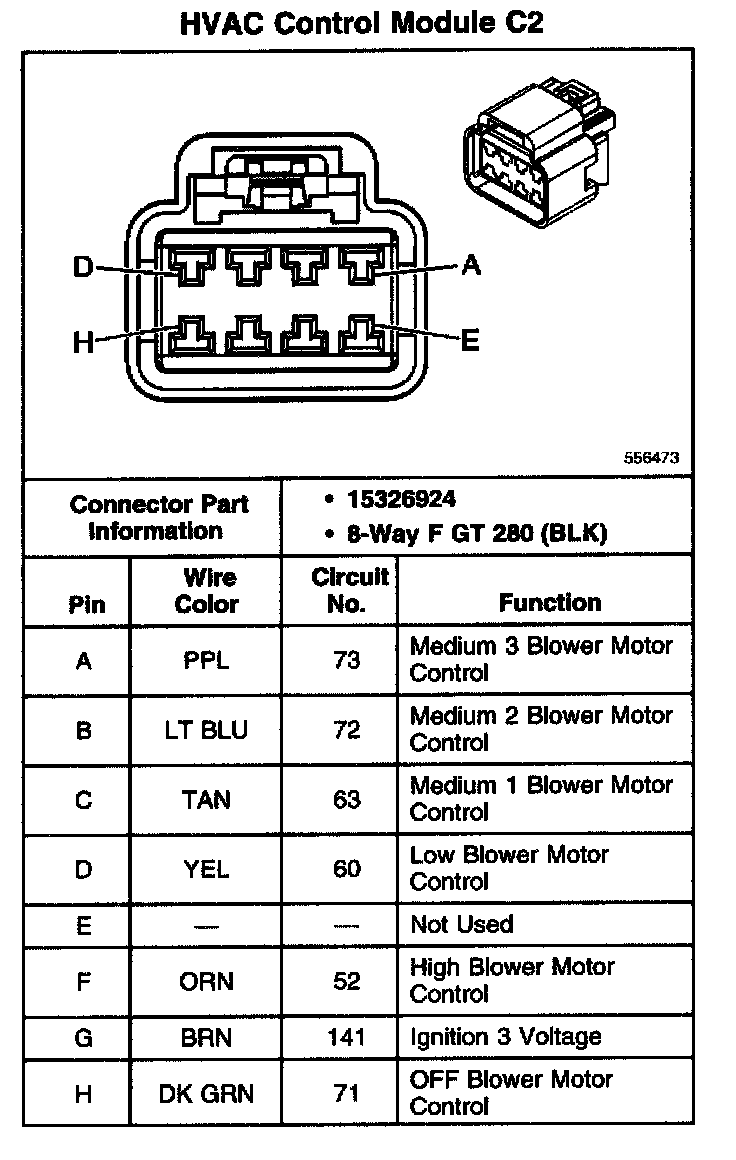

HVAC Control Module C2

HVAC Control Module C2:
