Electrical Diagrams

Schematic and Routing Diagrams

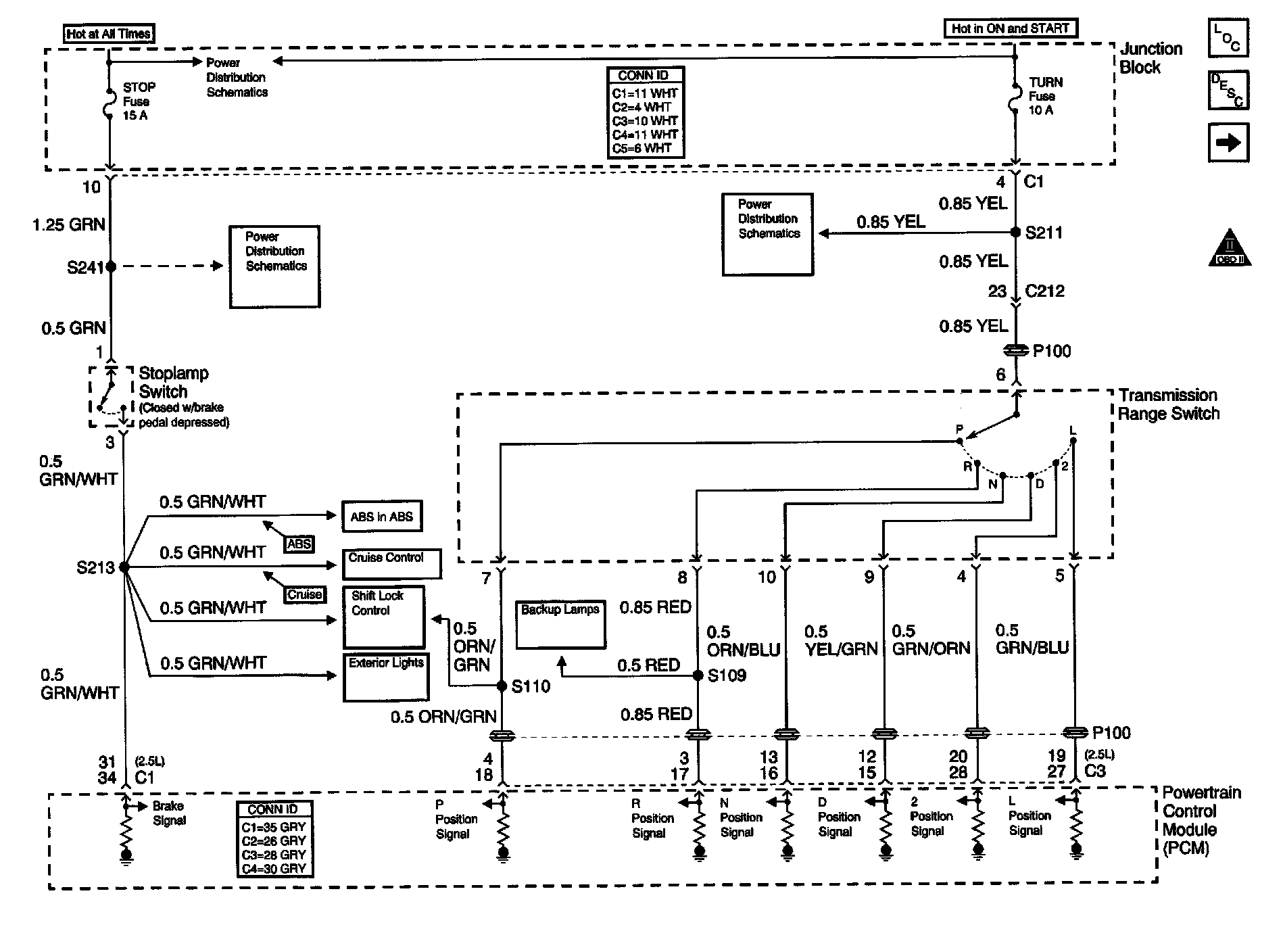

Transmission Range Switch





Shift Solenoids and Speed Sensors

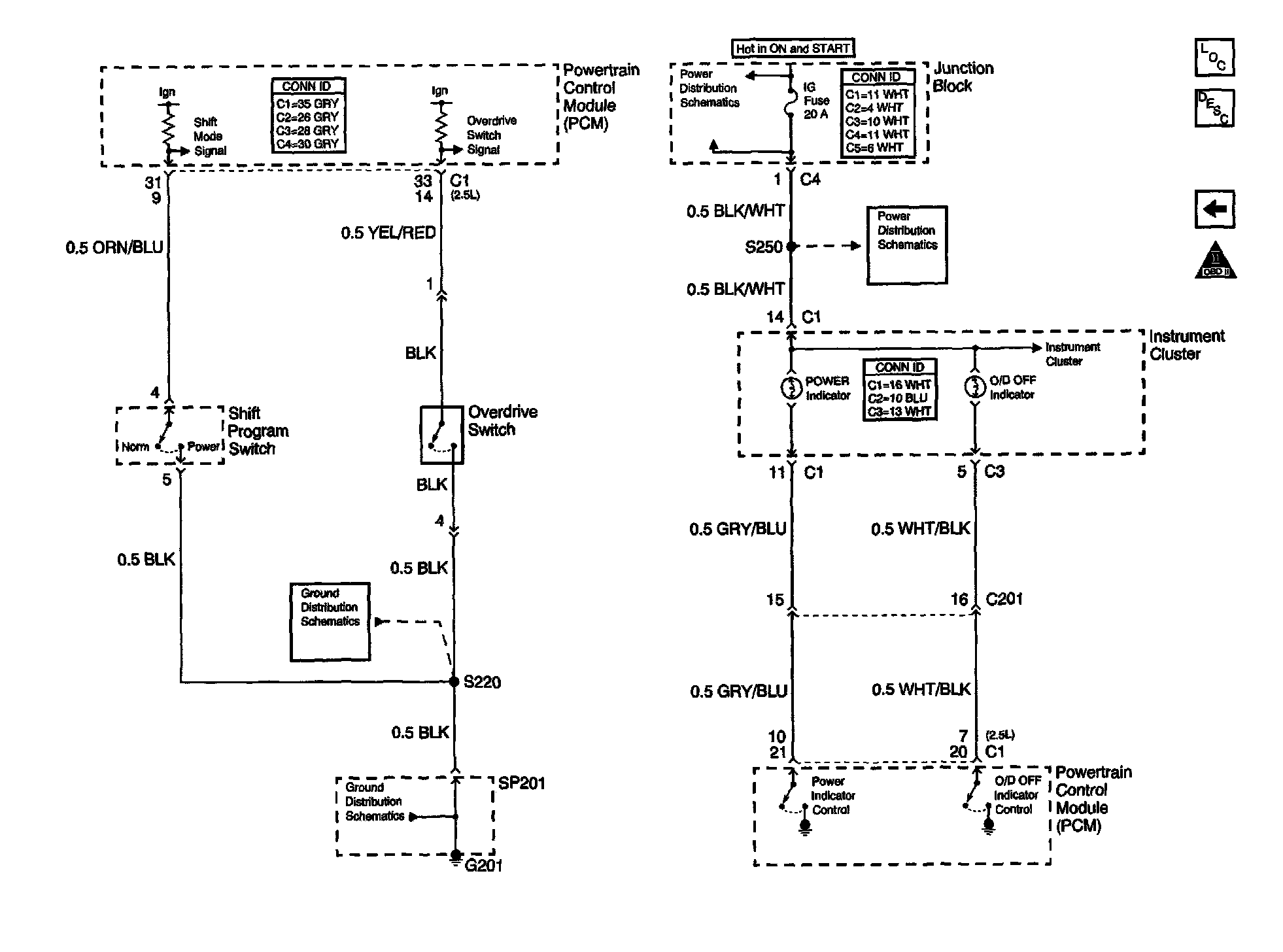

Overdrive and Shift Program Switches
