Shift Interlock, A/T

Automatic Transmission Shift Lock Control Connector End Views





Shift Lock Diode

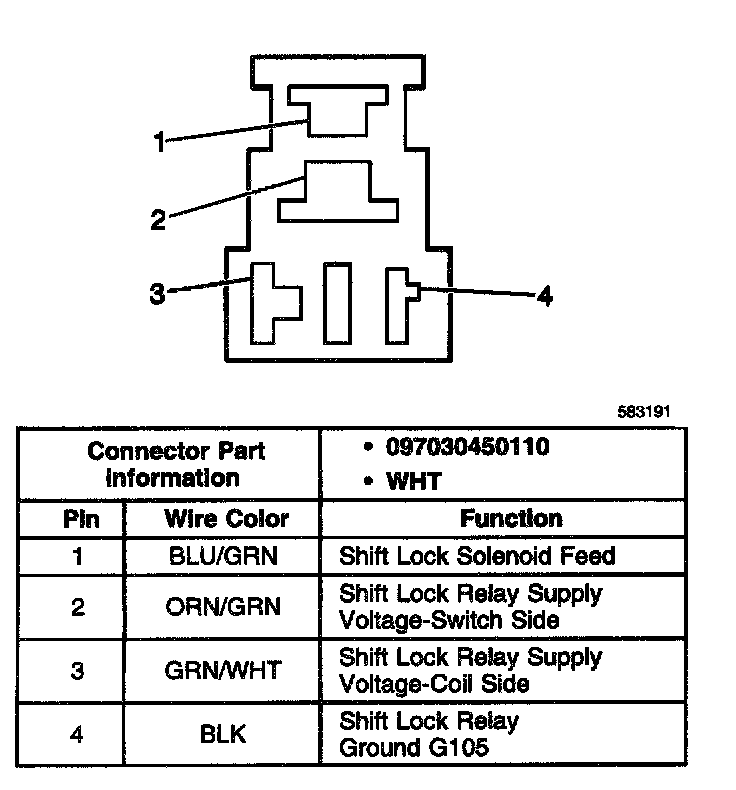

Shift Lock Relay

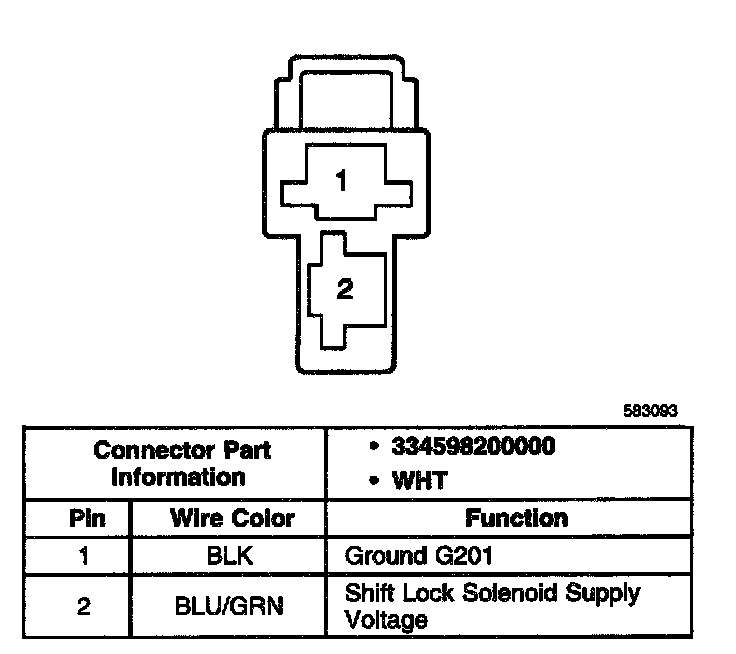

Shift Lock Solenoid

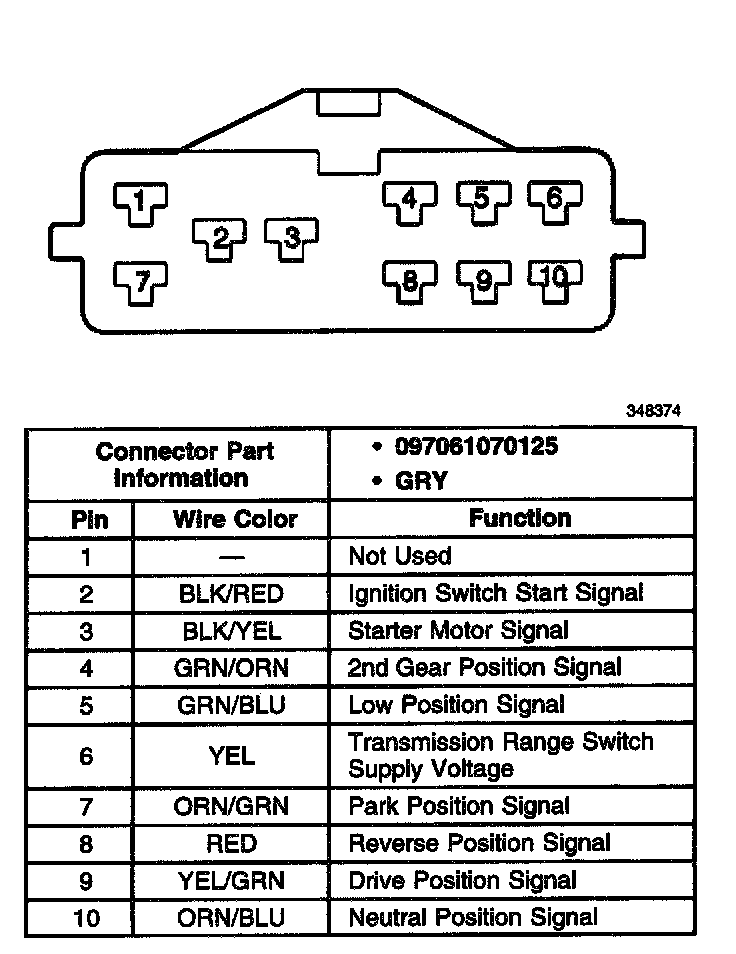

Transmission Range Switch
