Home >> Chevrolet >> 2002 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank Unit

Fuel Tank Unit

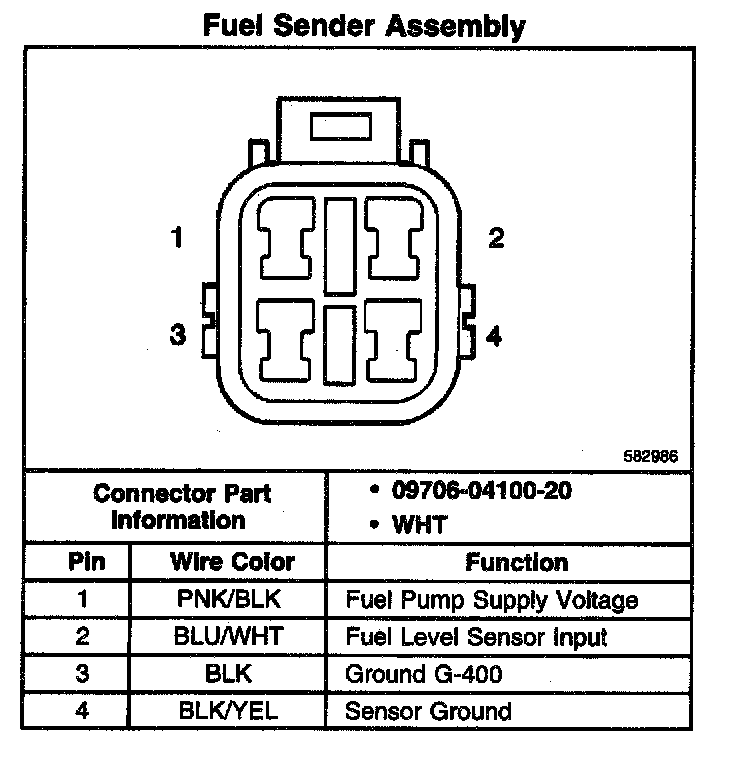

Fuel Sender Assembly:
