Power Door Systems Component Views

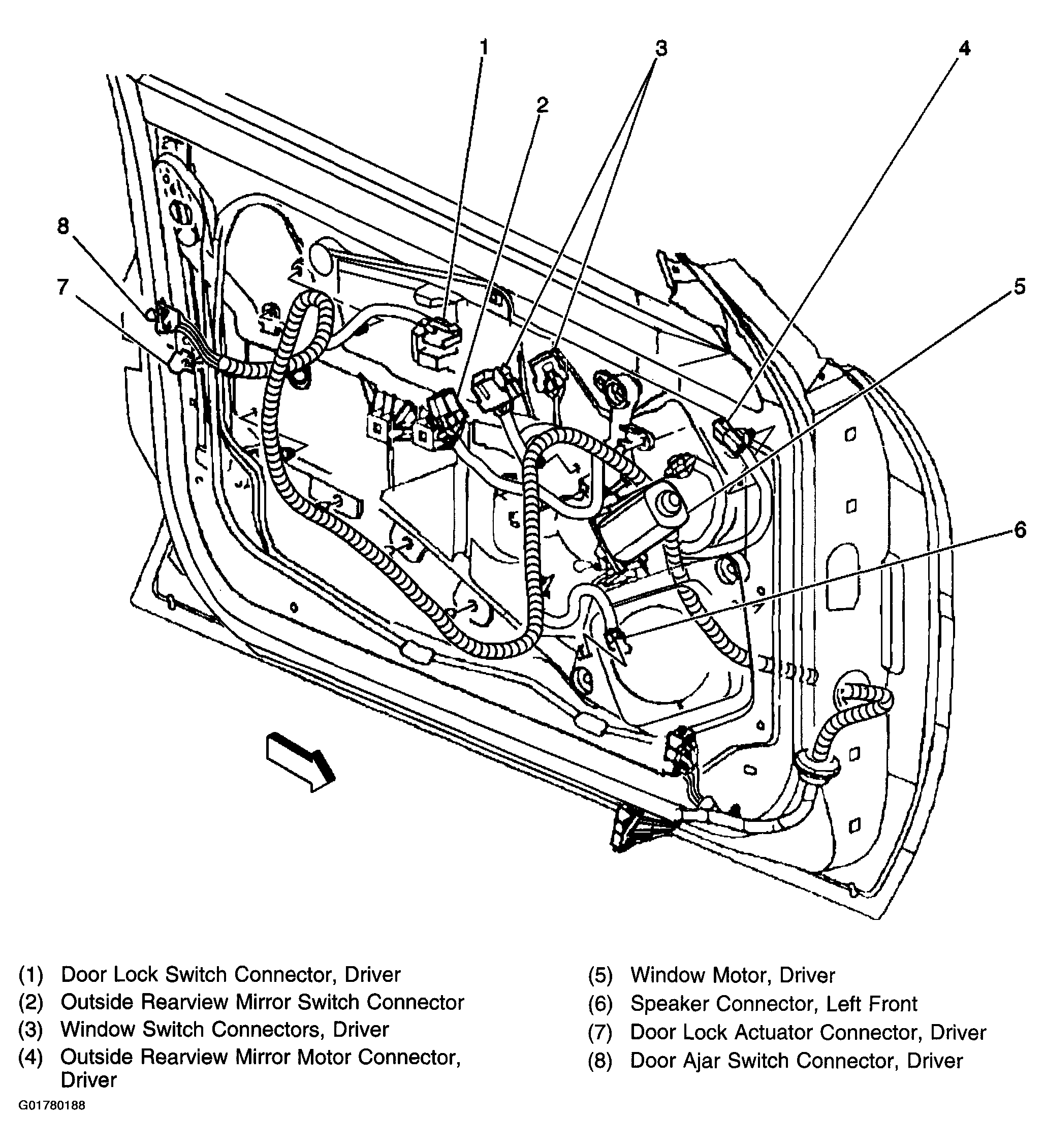

Fig 1: Identifying Left Door
G01780188Courtesy of GENERAL MOTORS CORP.

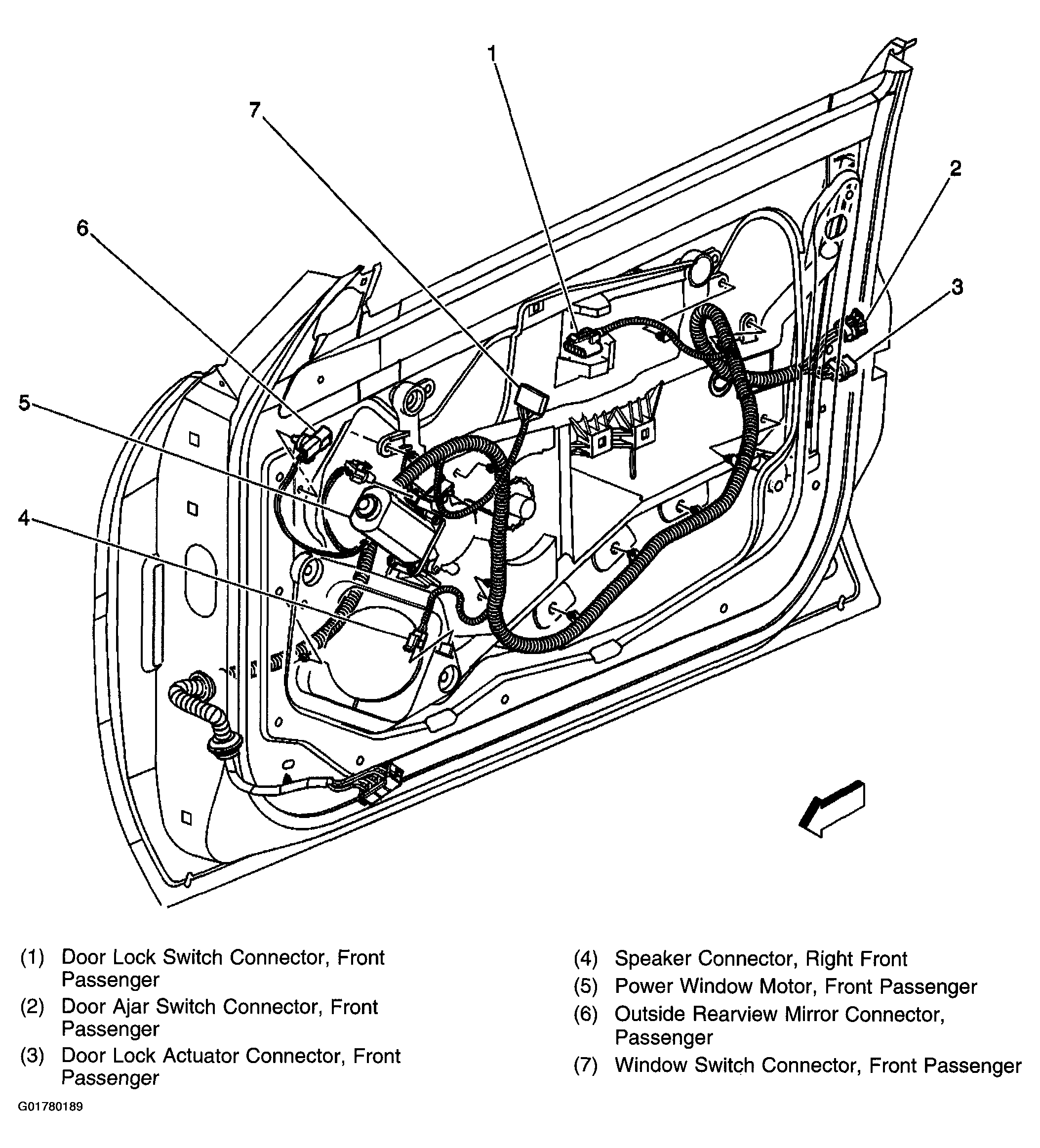

Fig 2: Identifying Right Door
G01780189Courtesy of GENERAL MOTORS CORP.

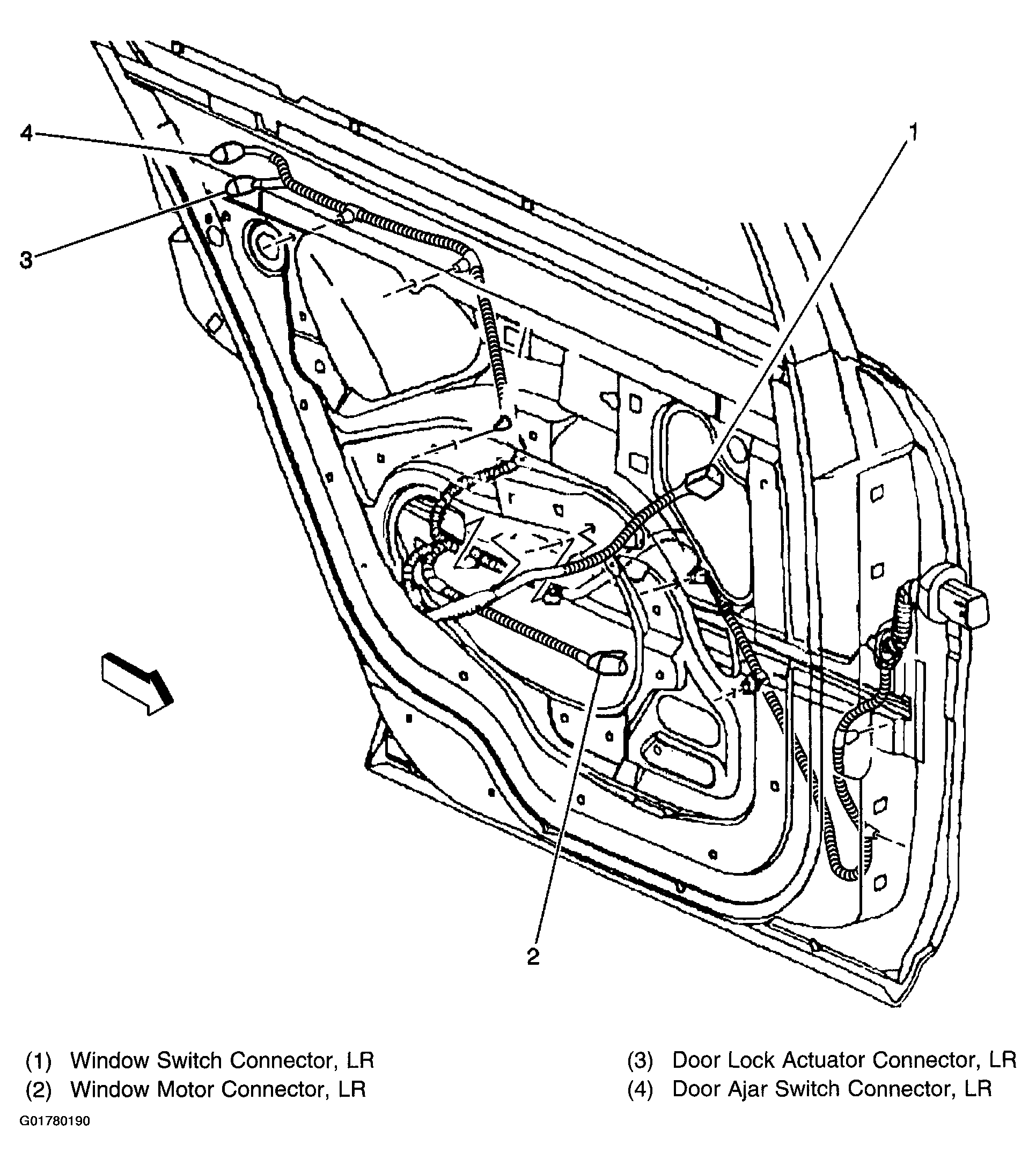

Fig 3: Identifying Left Rear Door (Right Rear Door Similar)
G01780190Courtesy of GENERAL MOTORS CORP.
