Compressor Control Valve Assembly Removal (V5 - Conventional Mount)

TOOLS REQUIRED
J 5403 Snap Ring Pliers




1. Remove the control valve retaining ring using the J 5403.

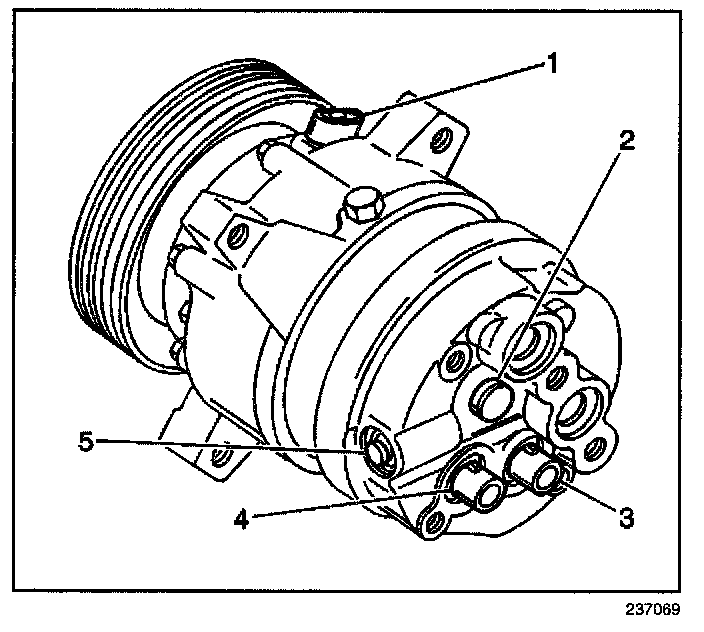

2. Remove the control valve assembly (5).
