Home >> Chevrolet >> 2002 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle

Automatic Transmission/Transaxle

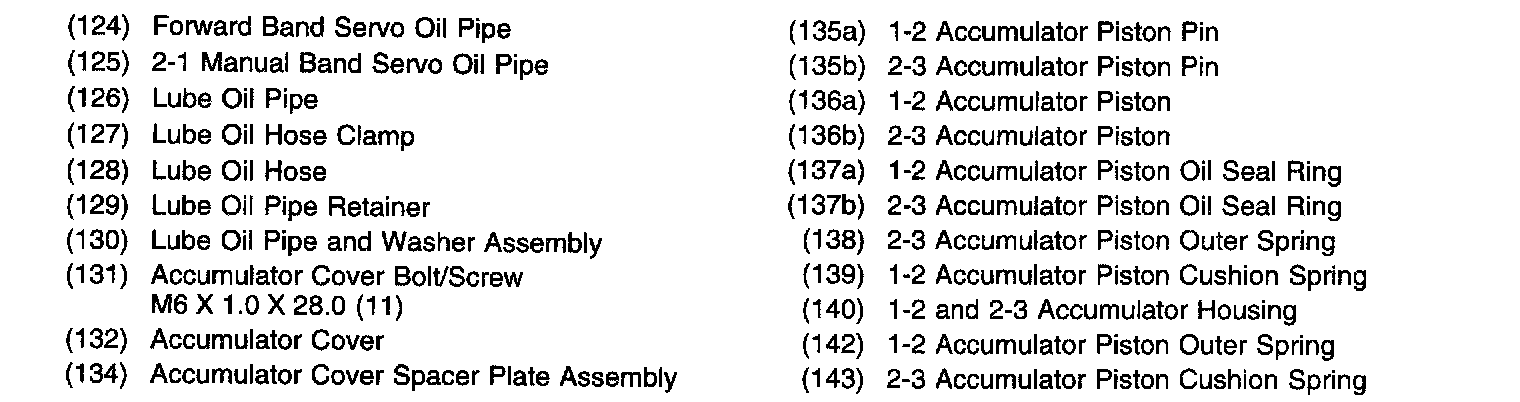

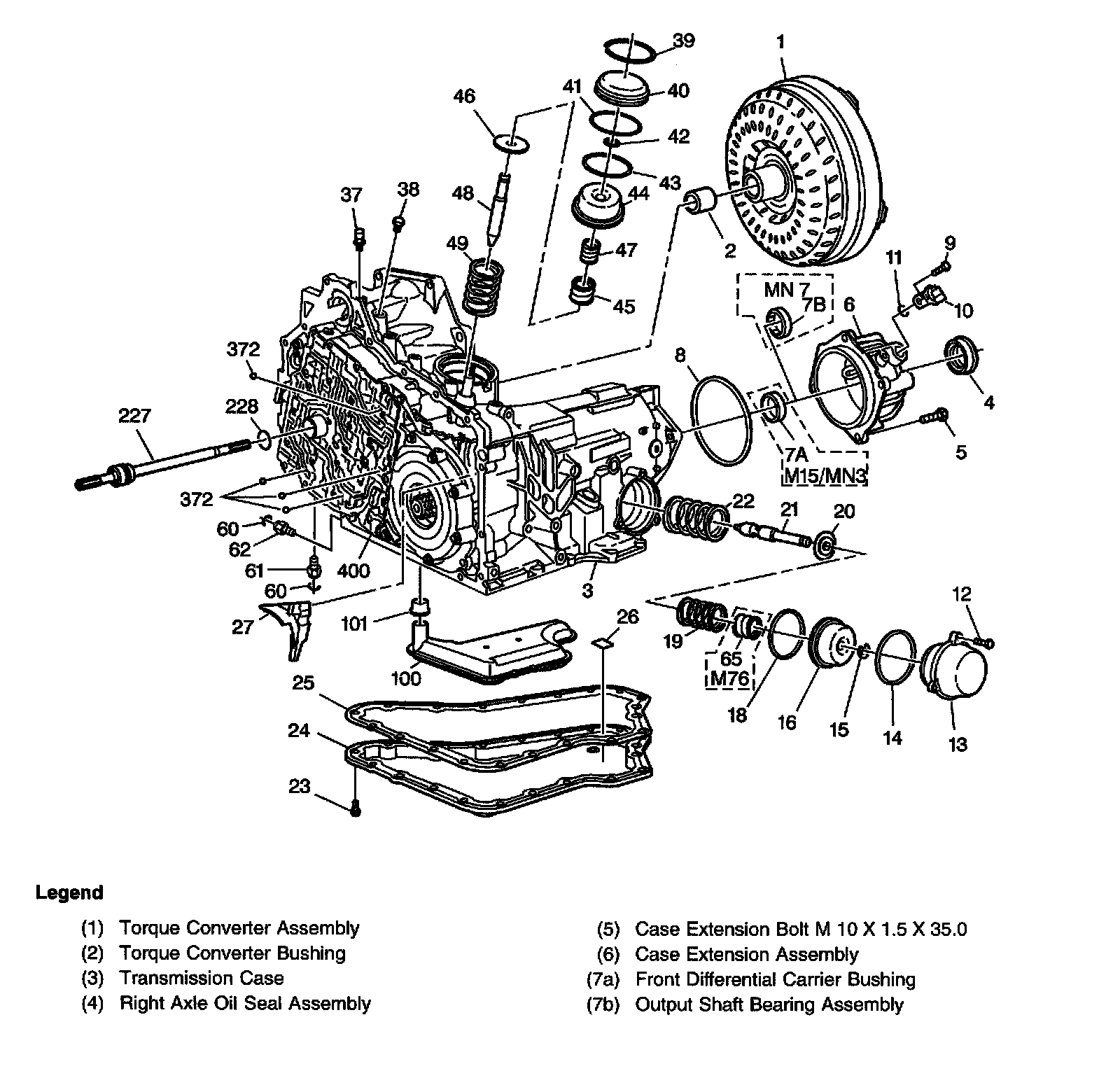

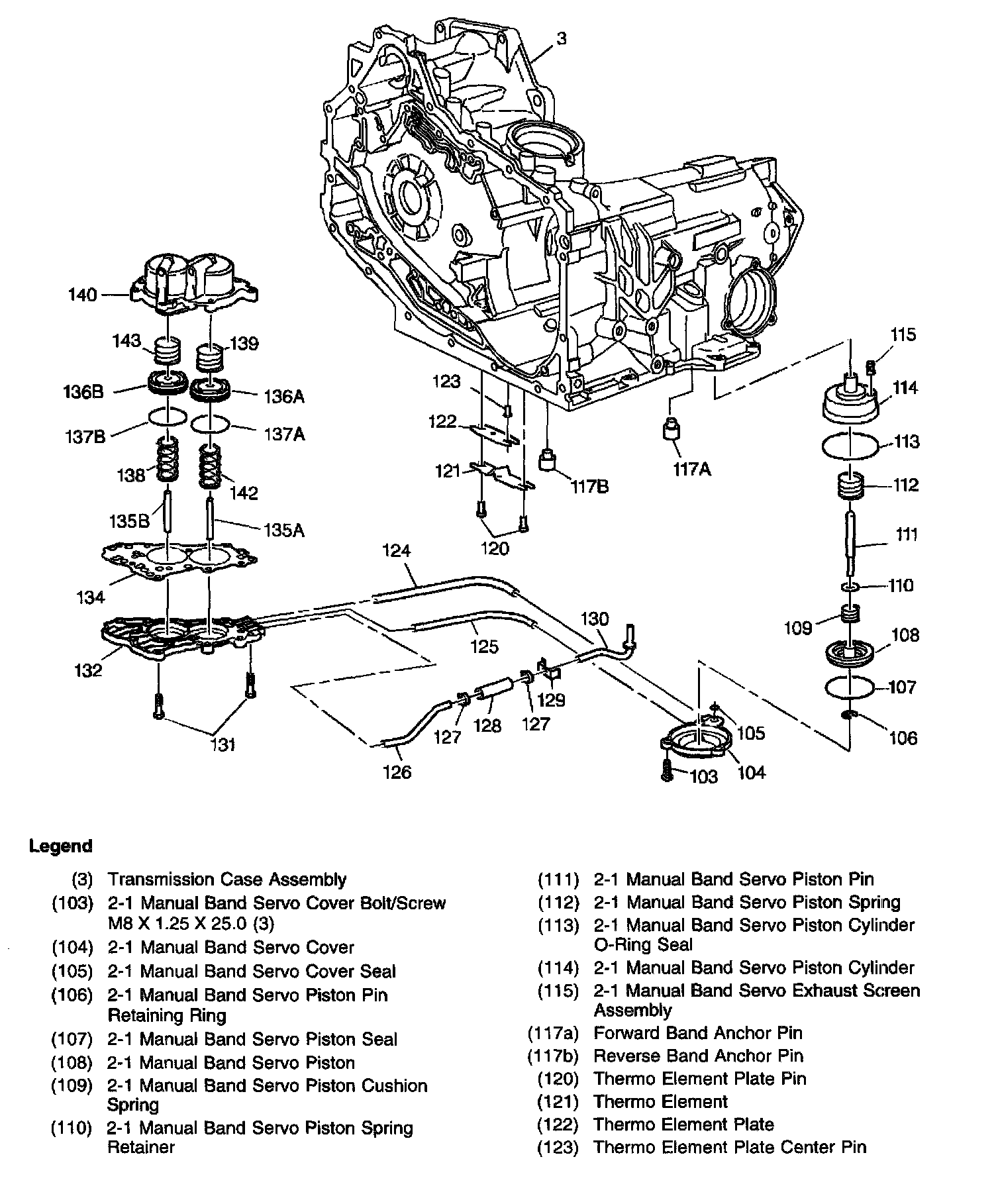

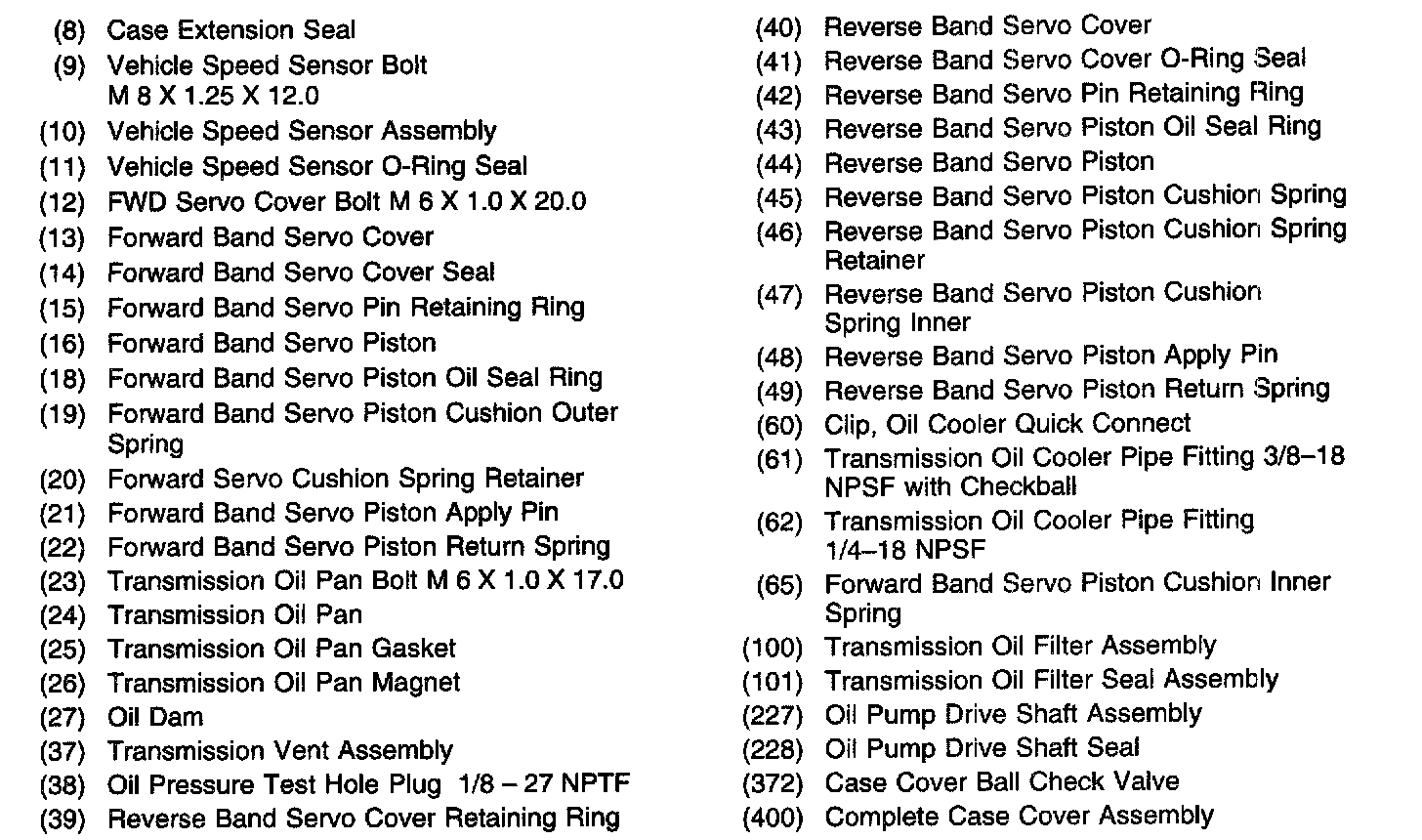

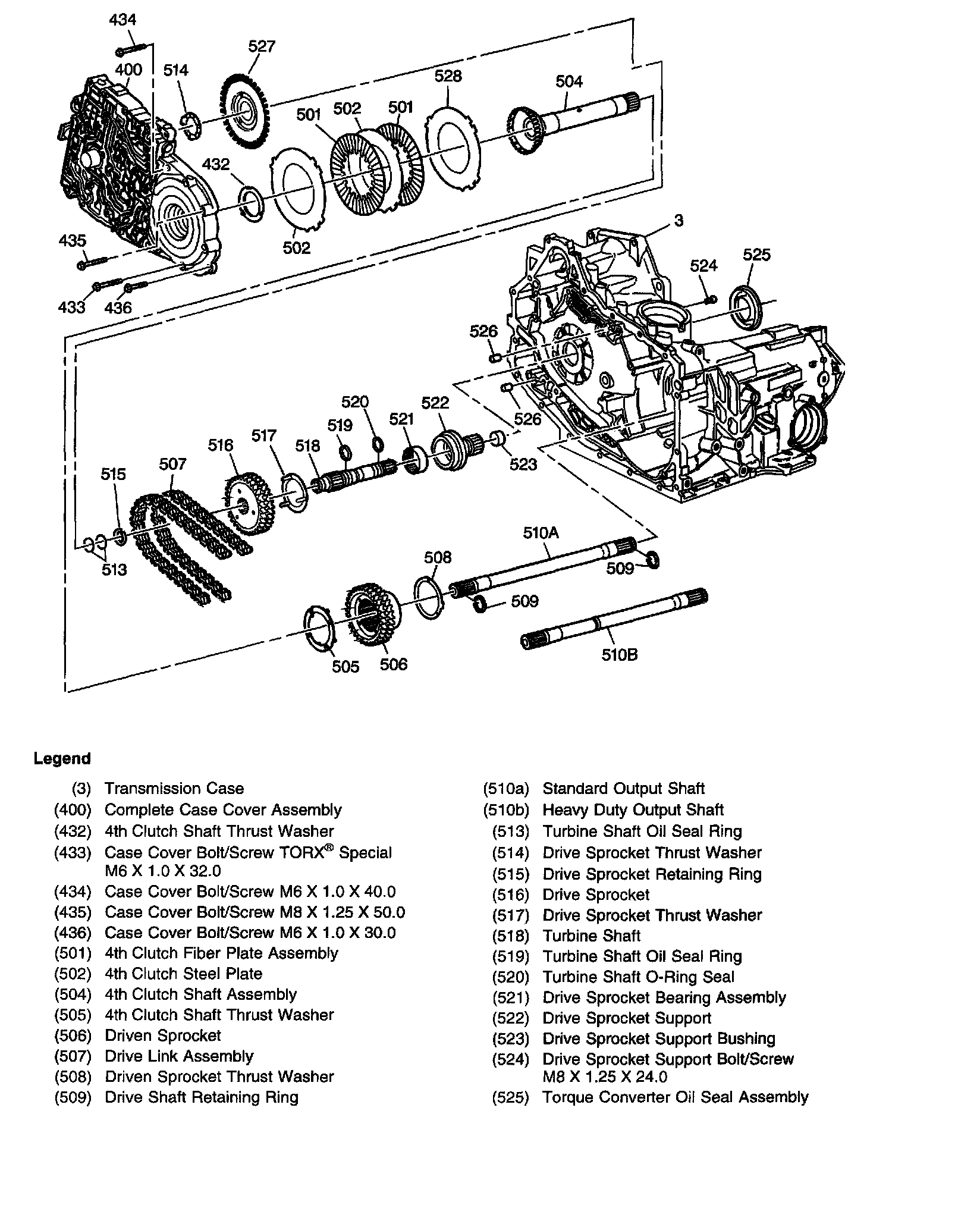

Case and Associated Parts (1 of 4)









Case and Associated Parts (2 of 4)









Case and Associated Parts (3 of 4)









Case and Associated Parts (4 of 4)

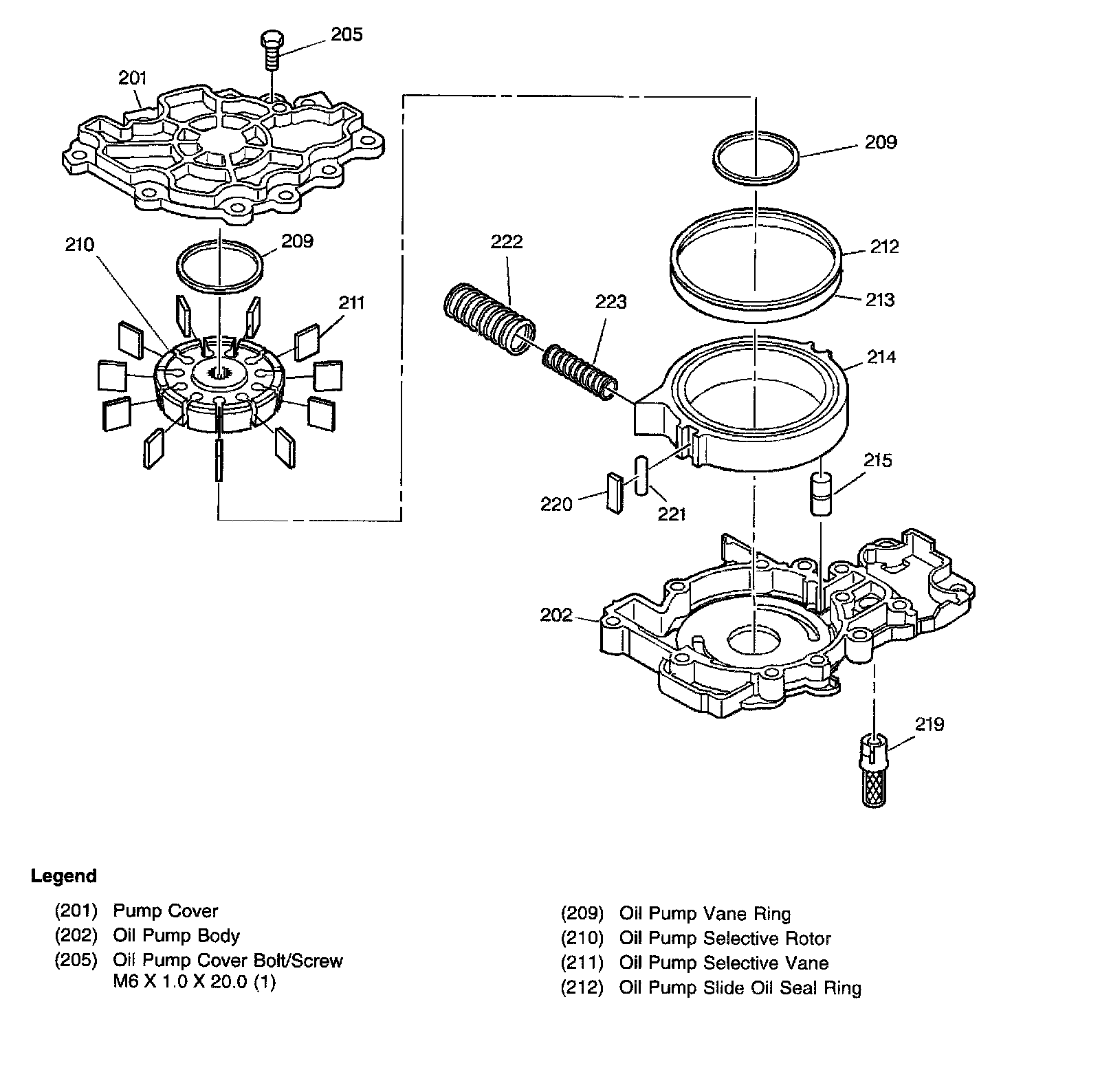

Oil Pump Assembly

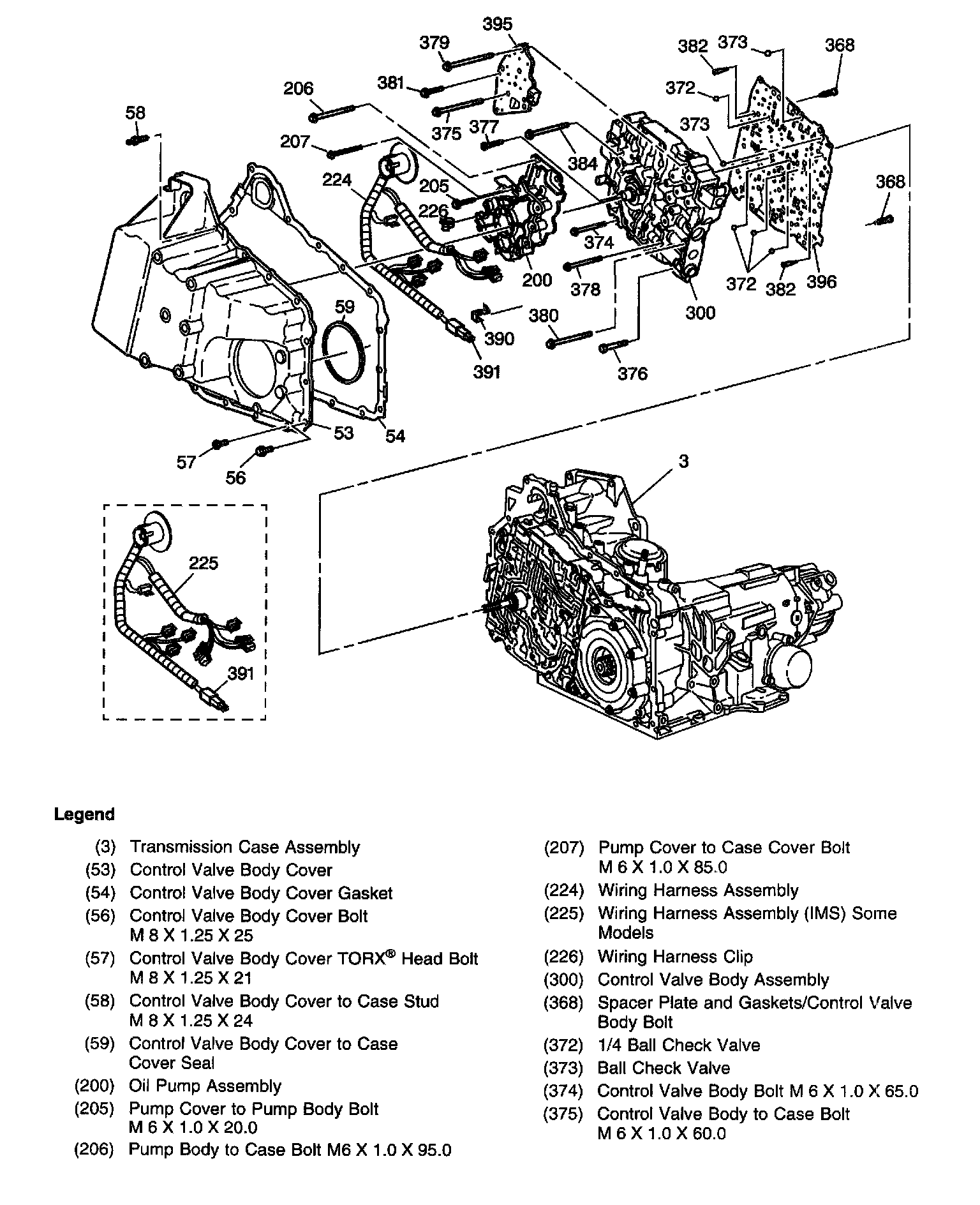

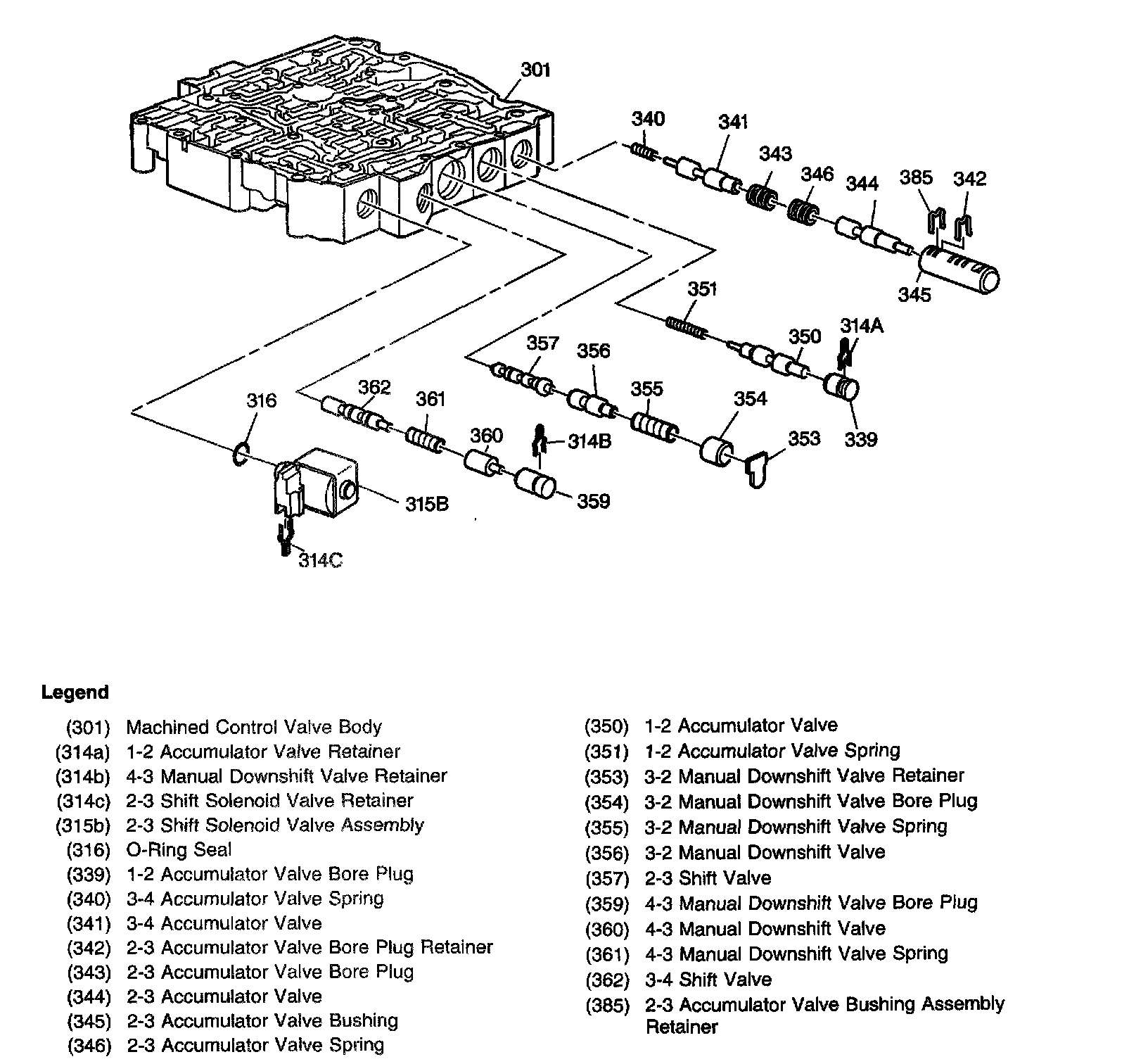

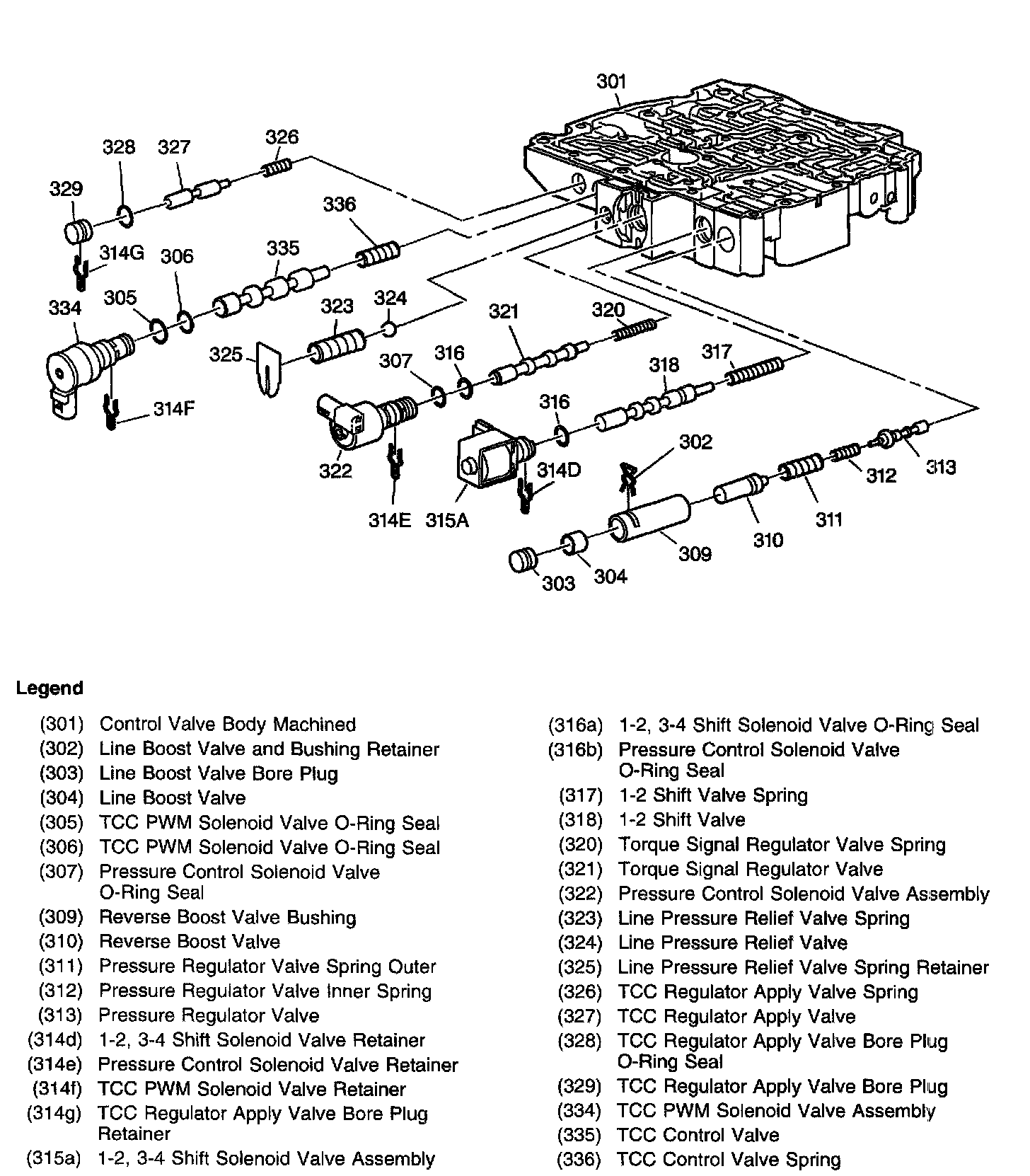

Control Valve Body Assembly (1 of 2)

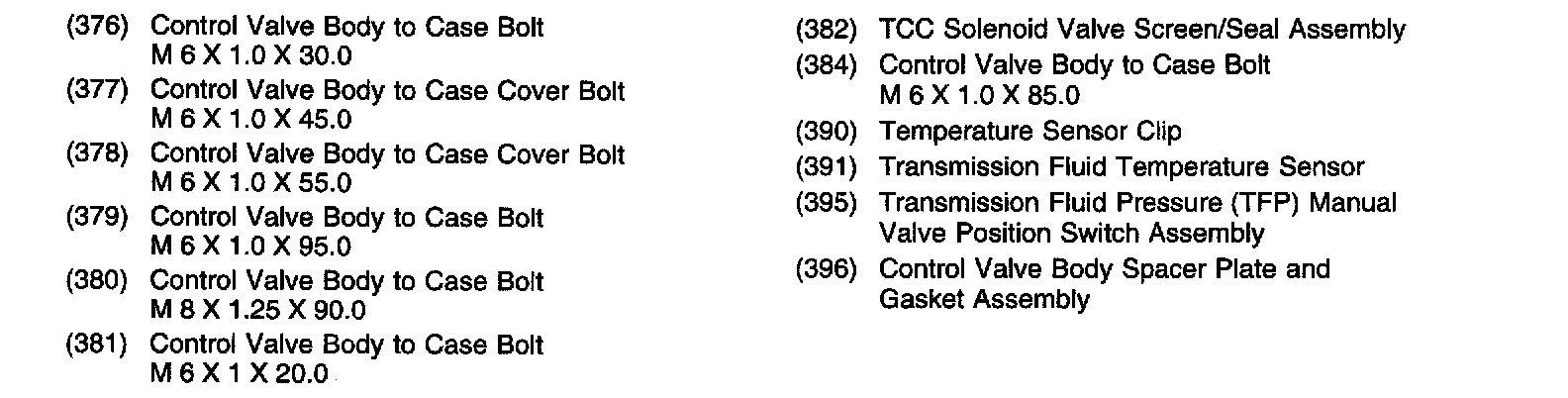

Control Valve Body Assembly (2 of 2)

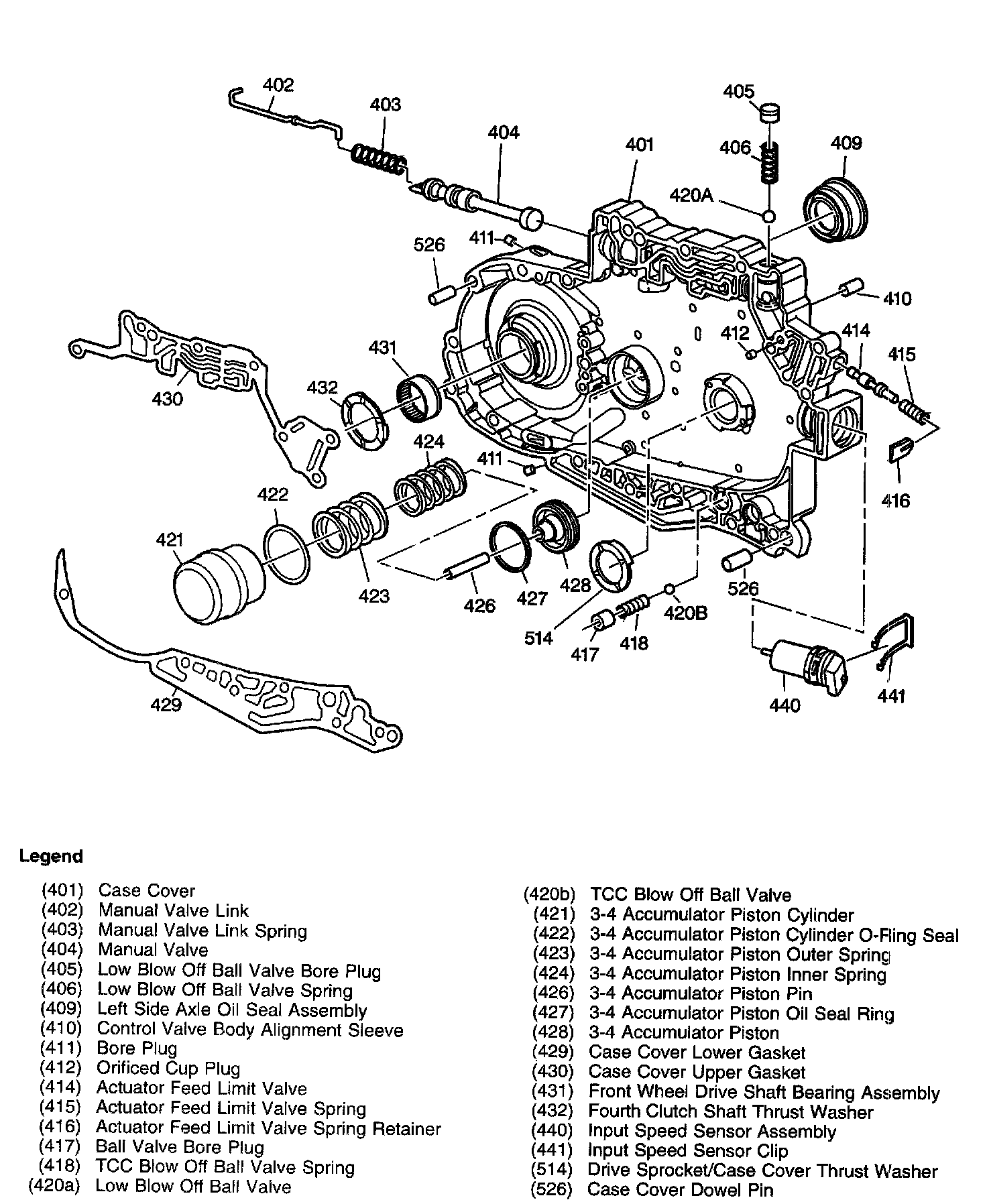

Case Cover Assembly

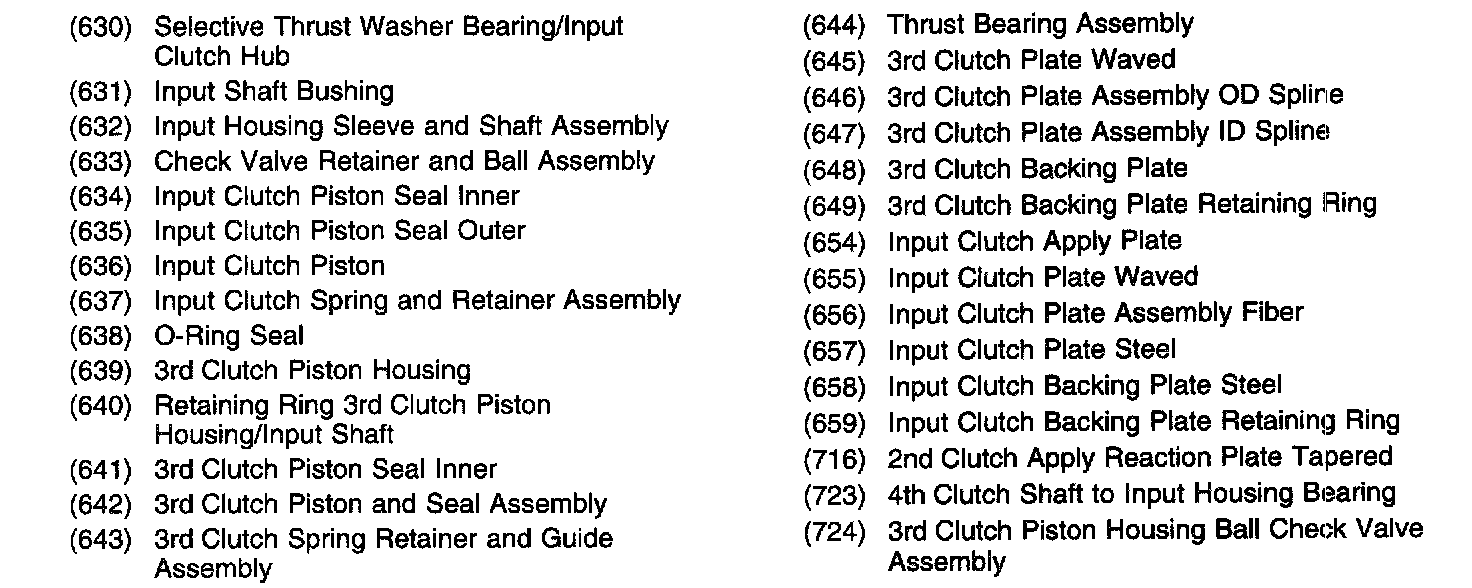

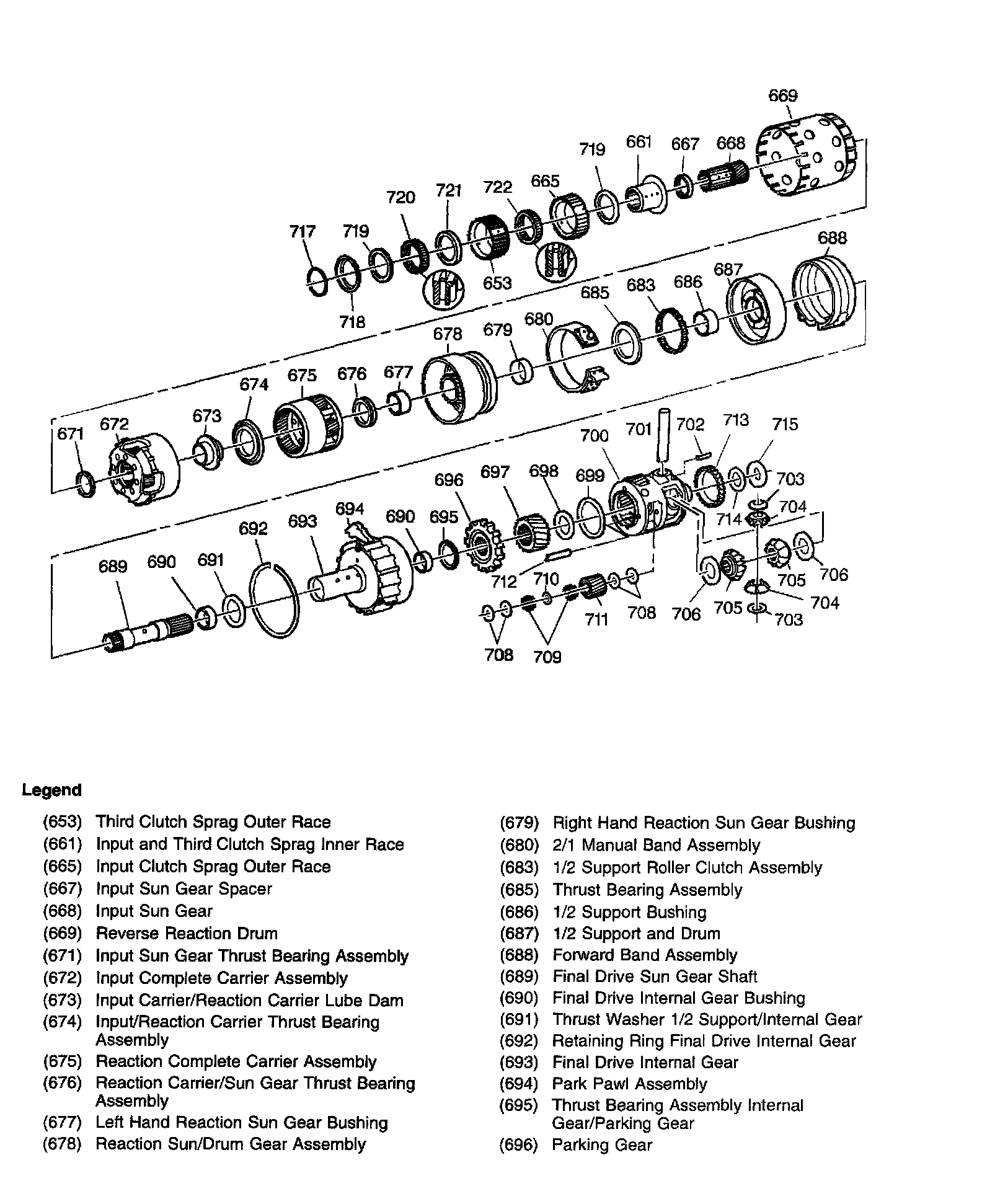

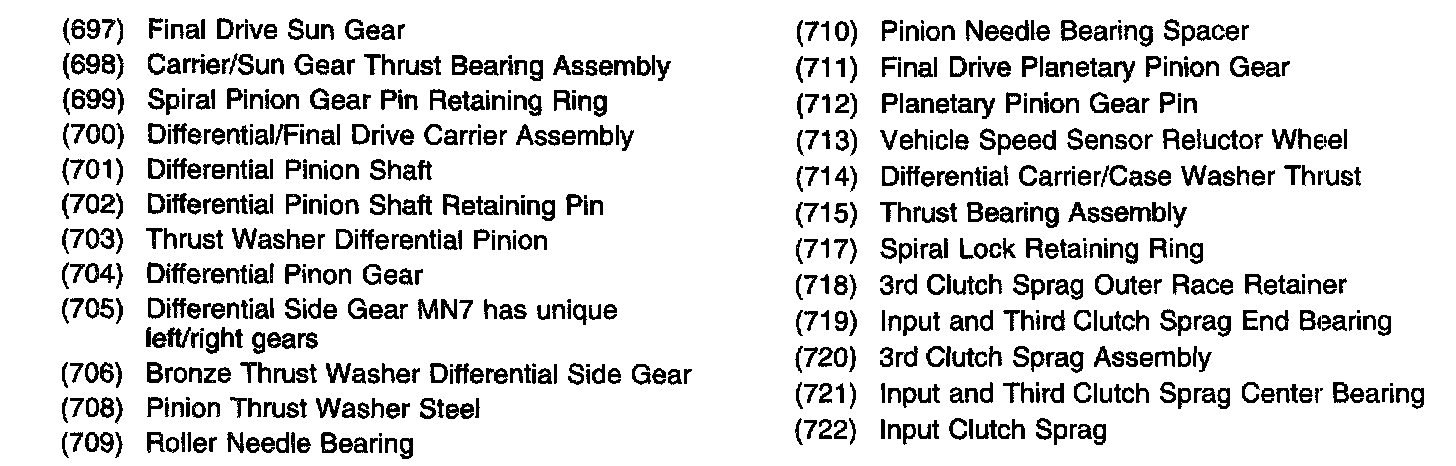

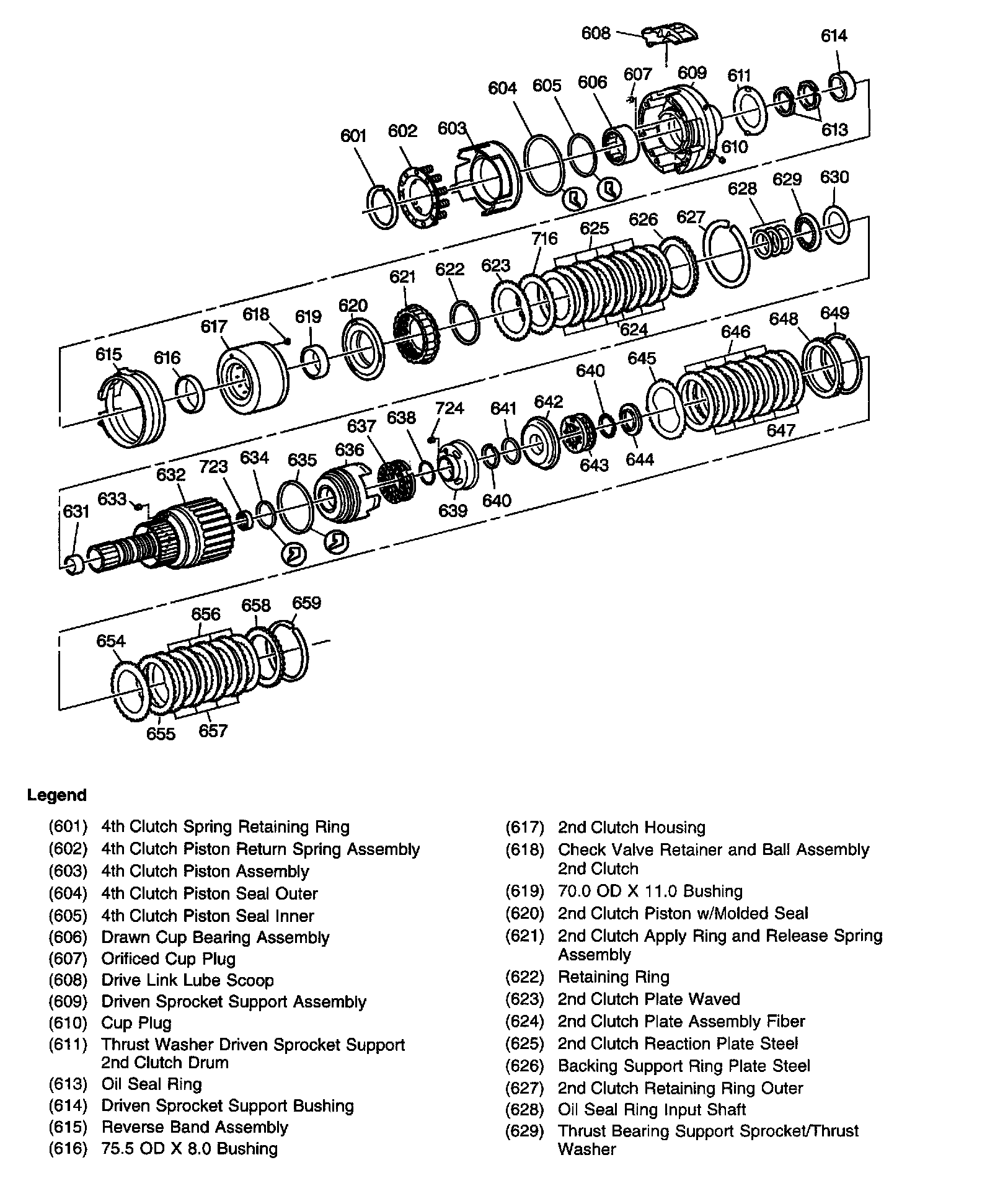

Internal Components (1 of 2)









Internal Components (2 of 2)

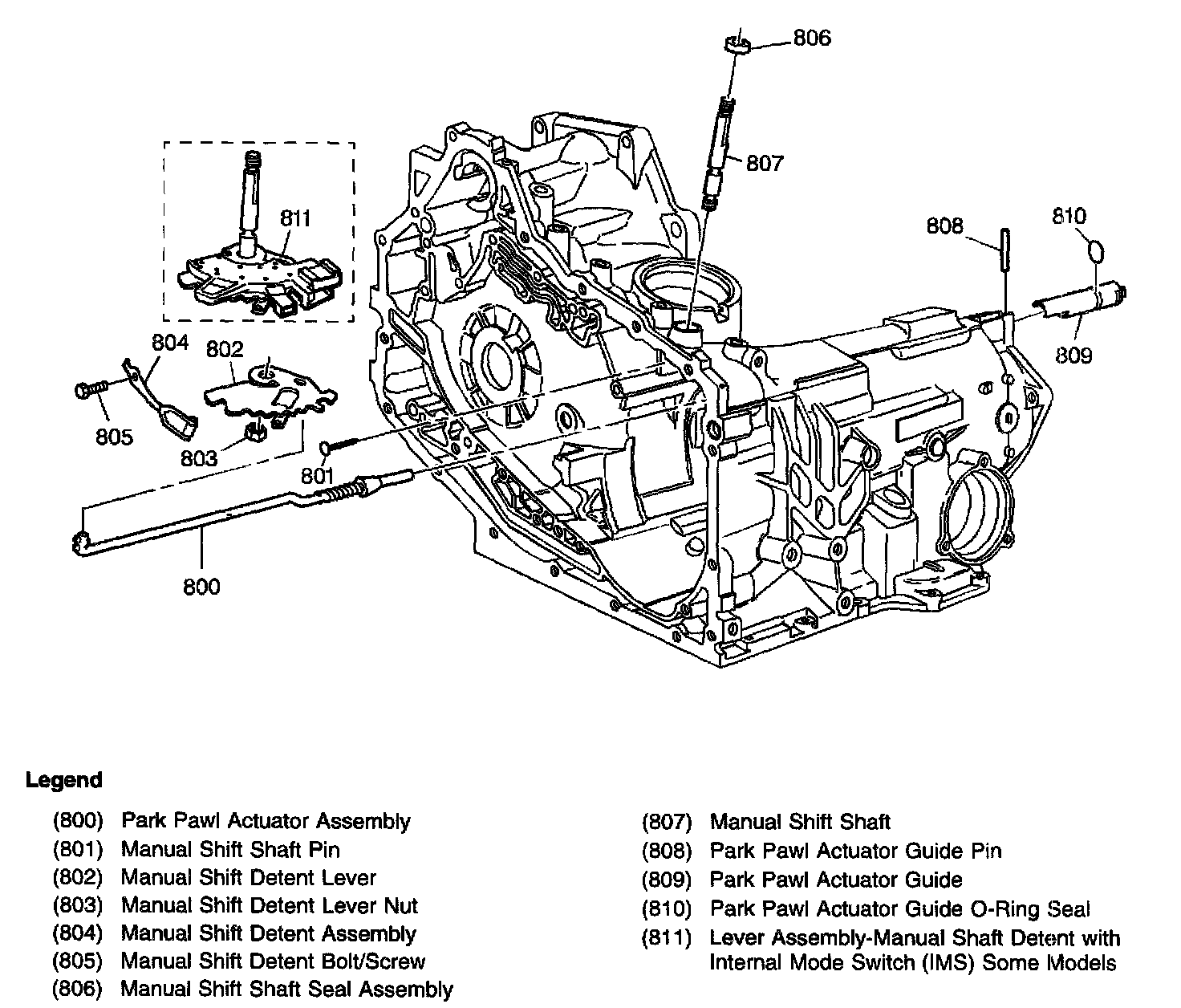

Manual Shaft and Parking System Assembly
