Electronic Brake Control Module

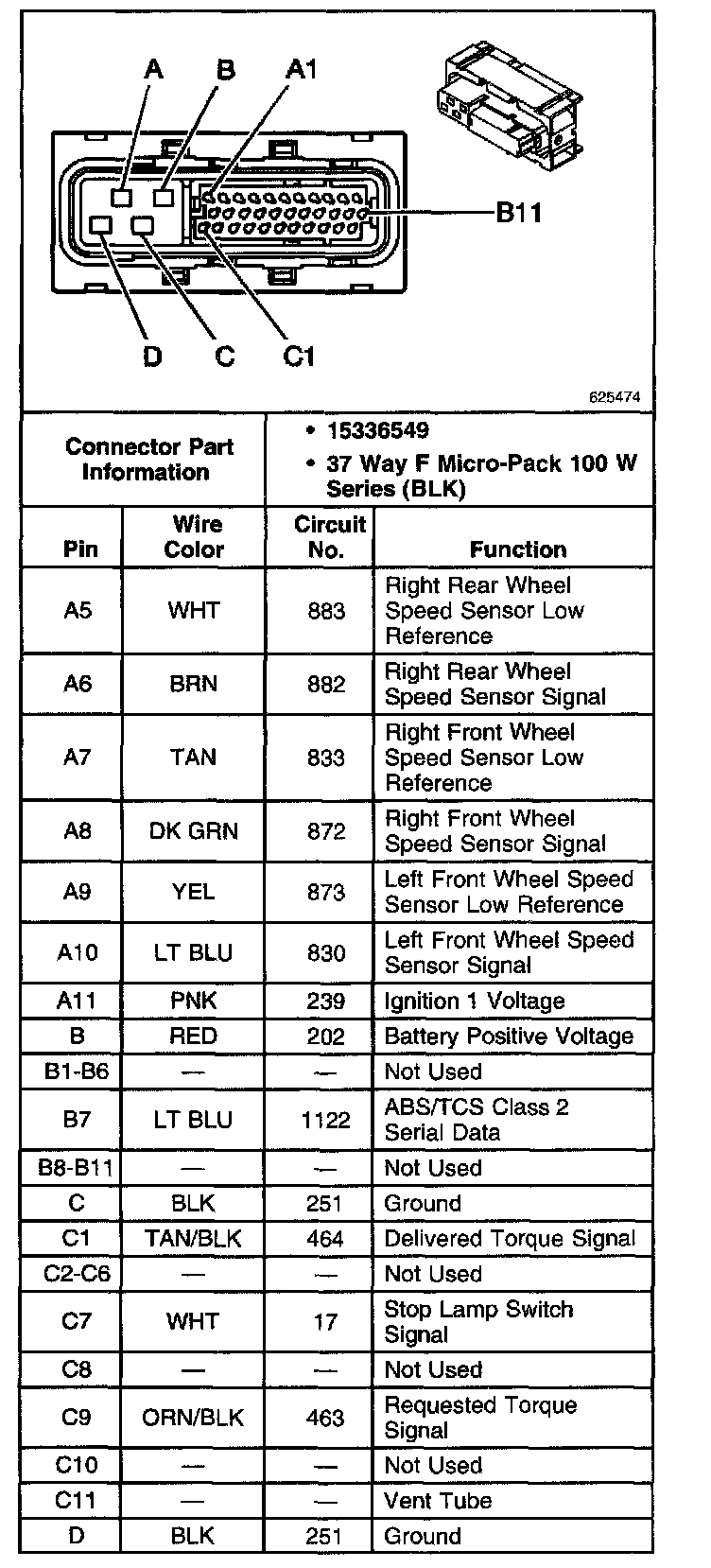

Electronic Brake Control Module (EBCM)





Part 1 of 2





Part 2 of 2
