Home >> Chevrolet >> 2002 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

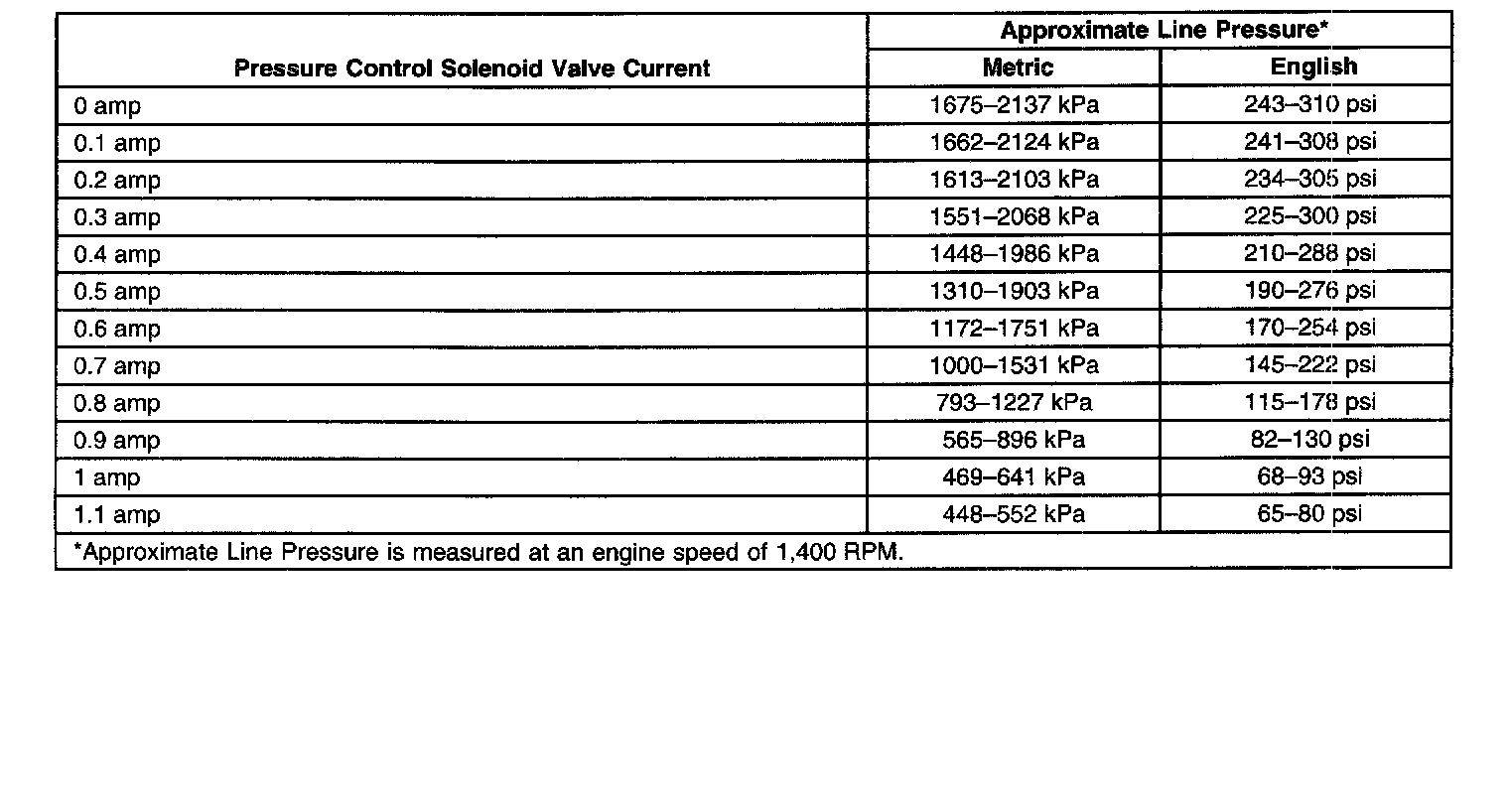

Line Pressure

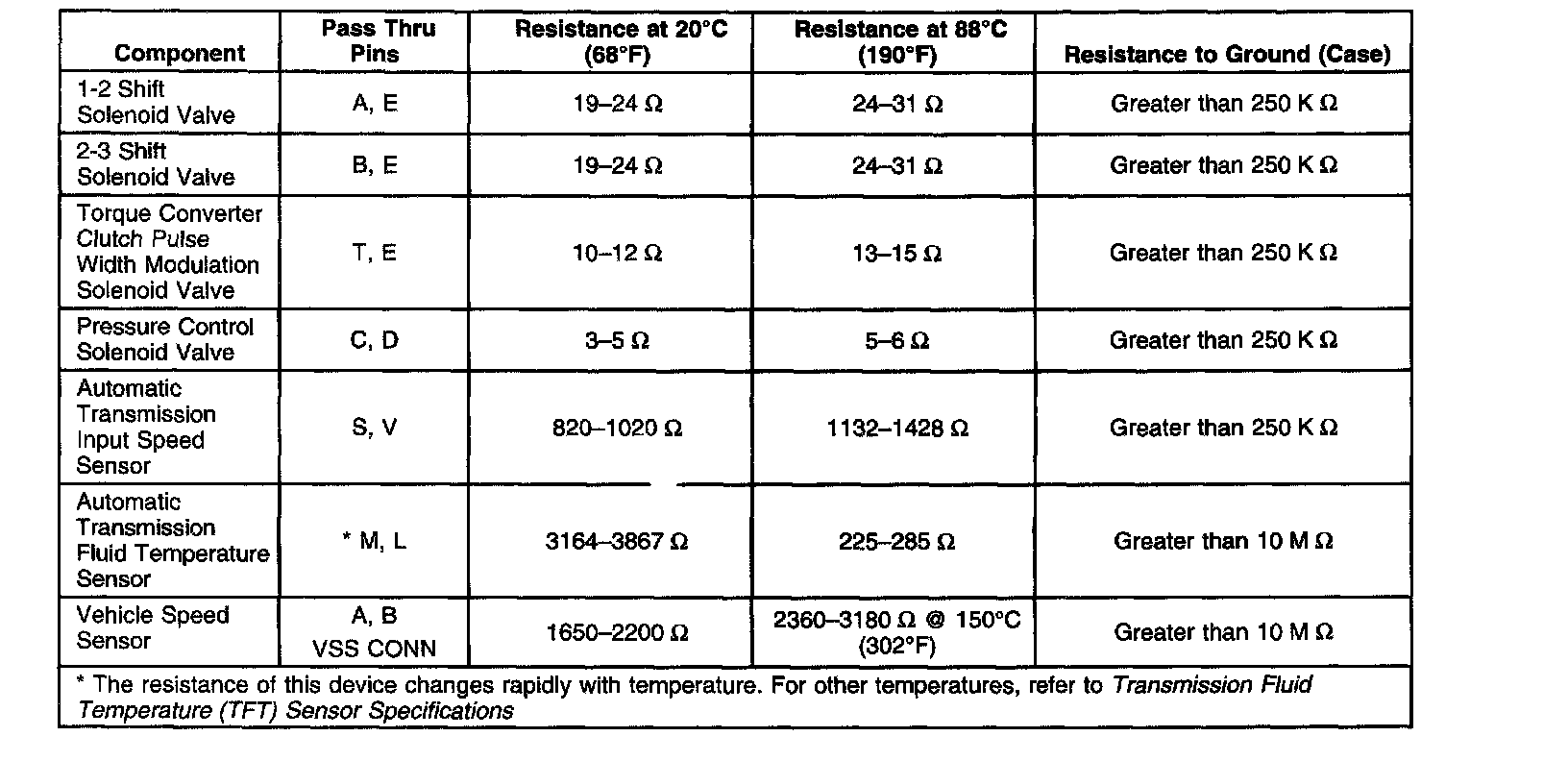

Component Resistance
