Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor anchor Replacement

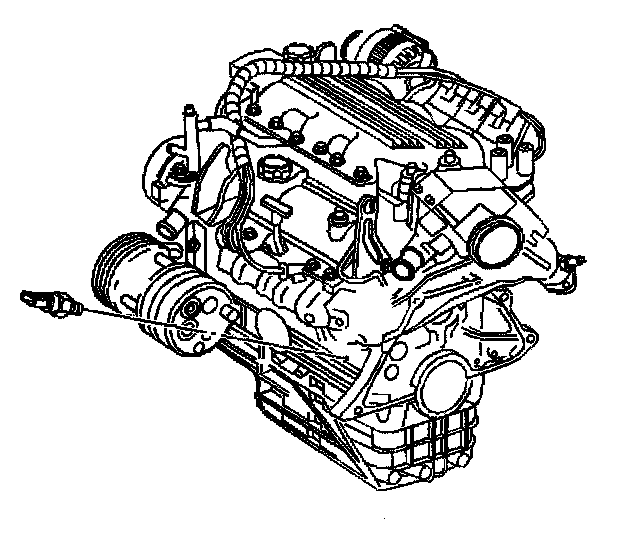

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Disconnect the engine oil pressure switch electrical connector.
3. Remove the oil pressure switch.

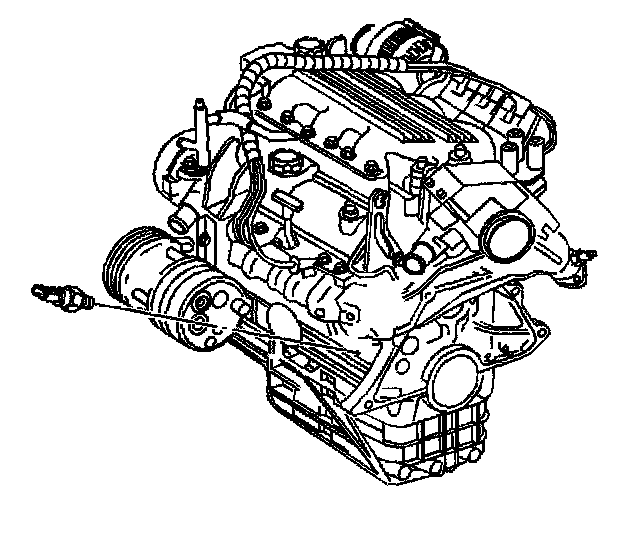

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the engine oil pressure switch.
Tighten the switch to 16 Nm (12 ft. lbs.)
2. Connect the engine oil pressure switch electrical connector.
3. Lower the vehicle.
