Power Window Switch
>>
Window Switch-Front Passenger
Window Switch-Front Passenger

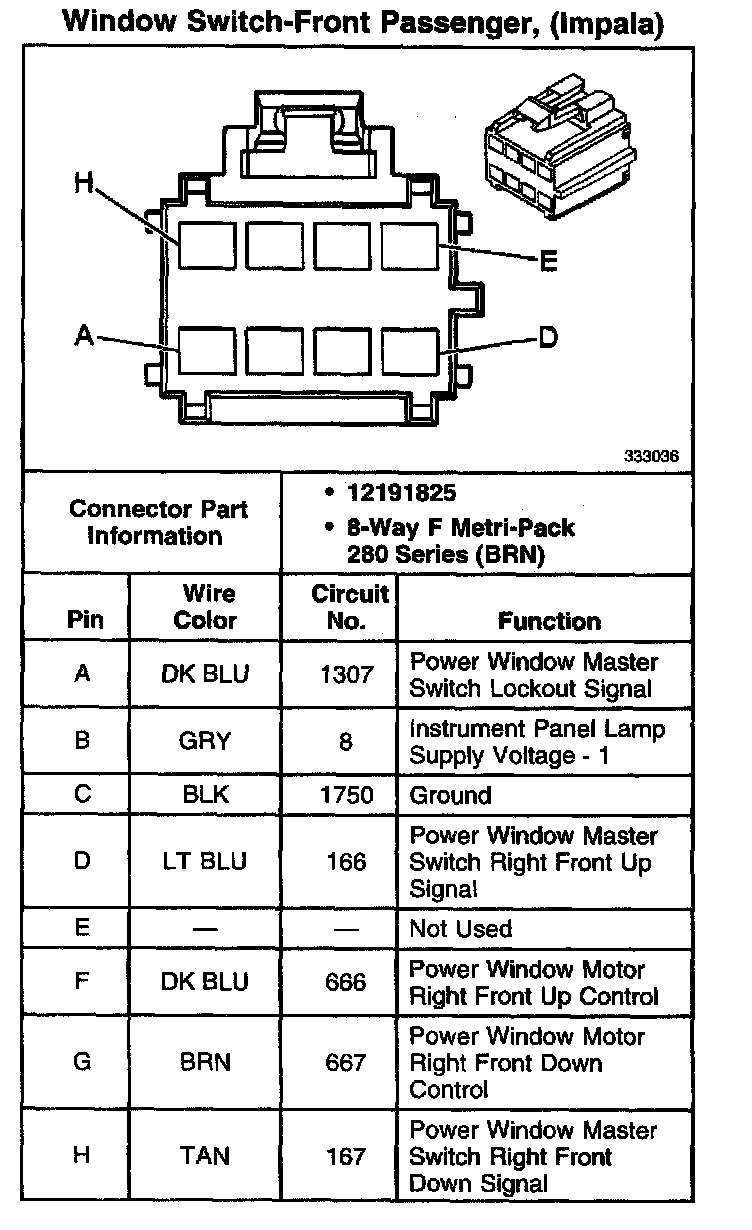

Window Switch-Front Passenger, (Impala):
