Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

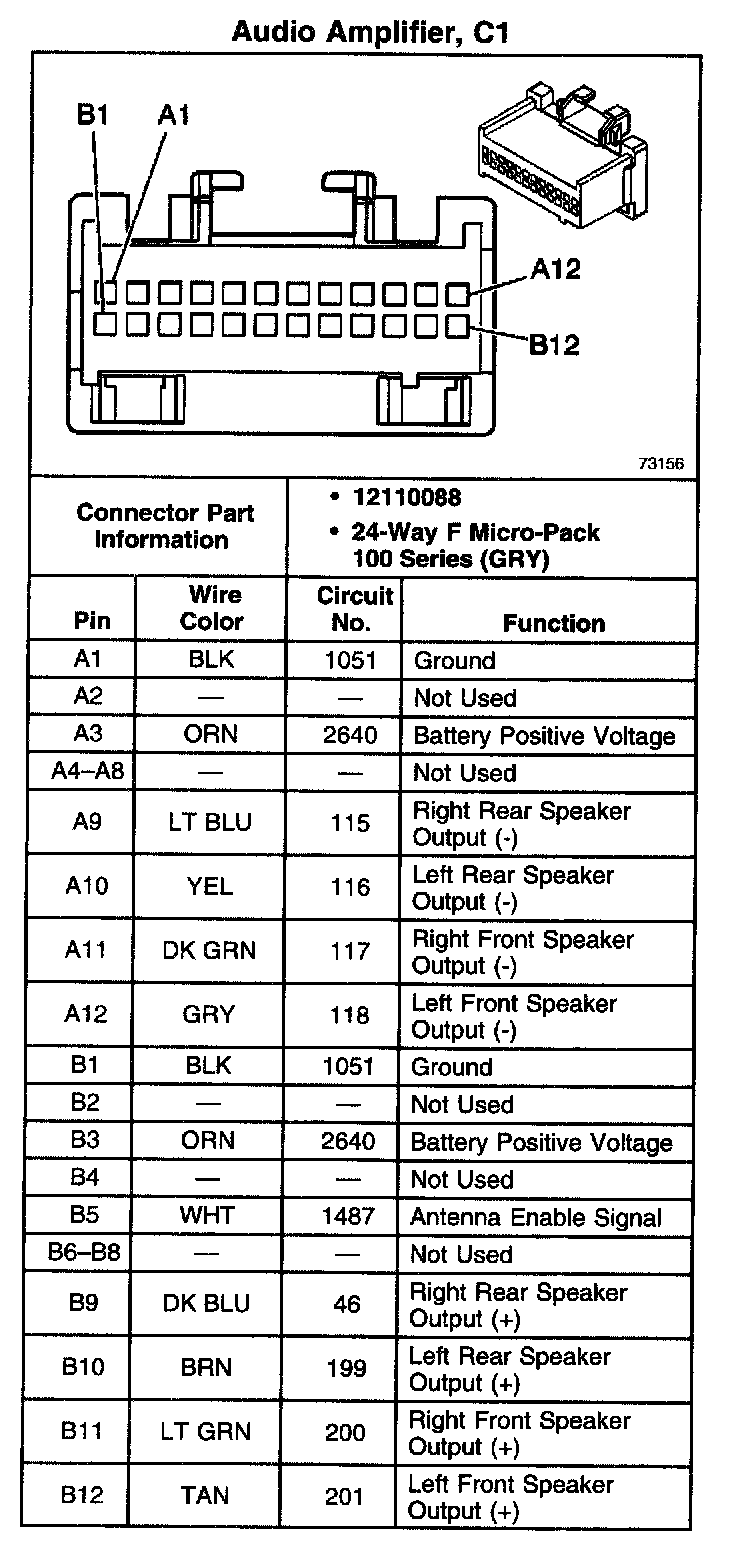

Audio Amplifier, C1:

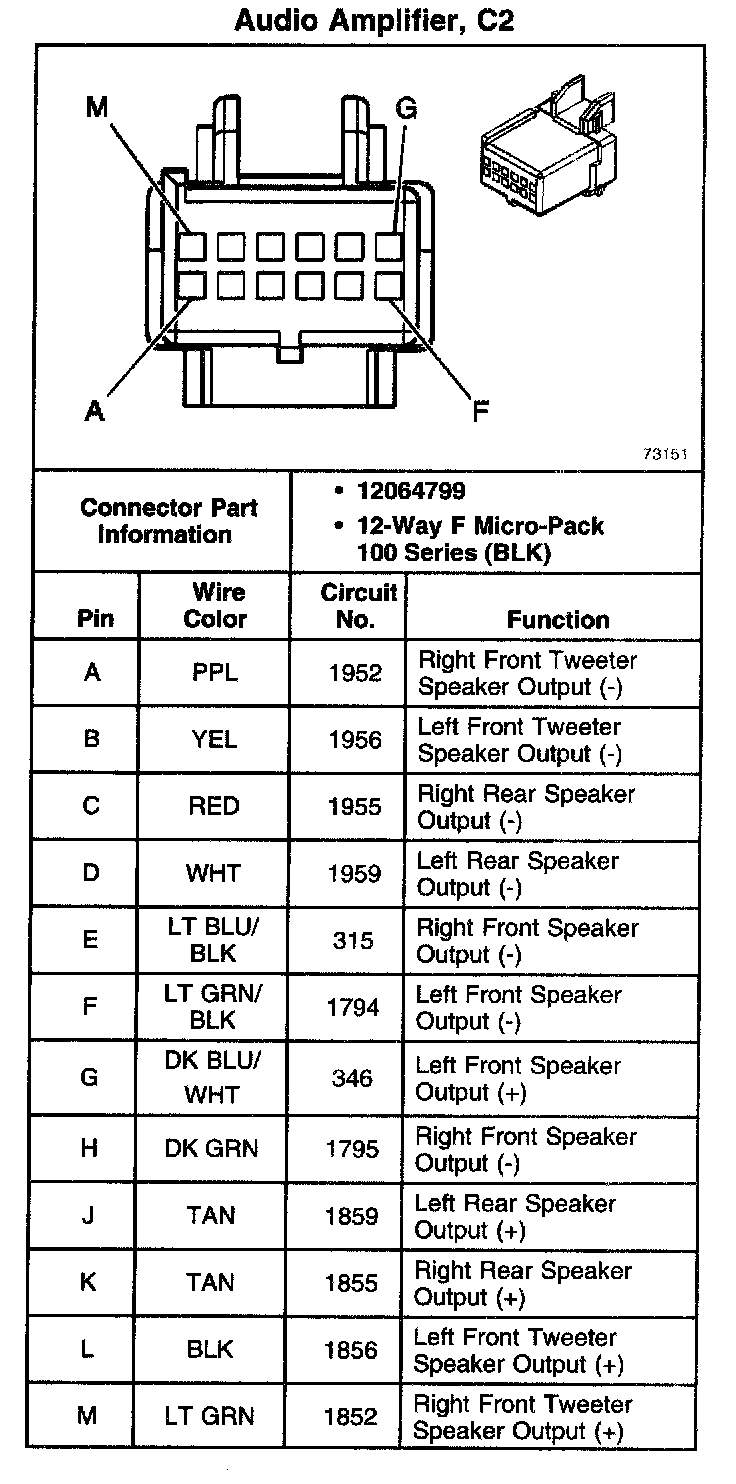

Audio Amplifier, C2:
