Pressure Sensor Connector End View

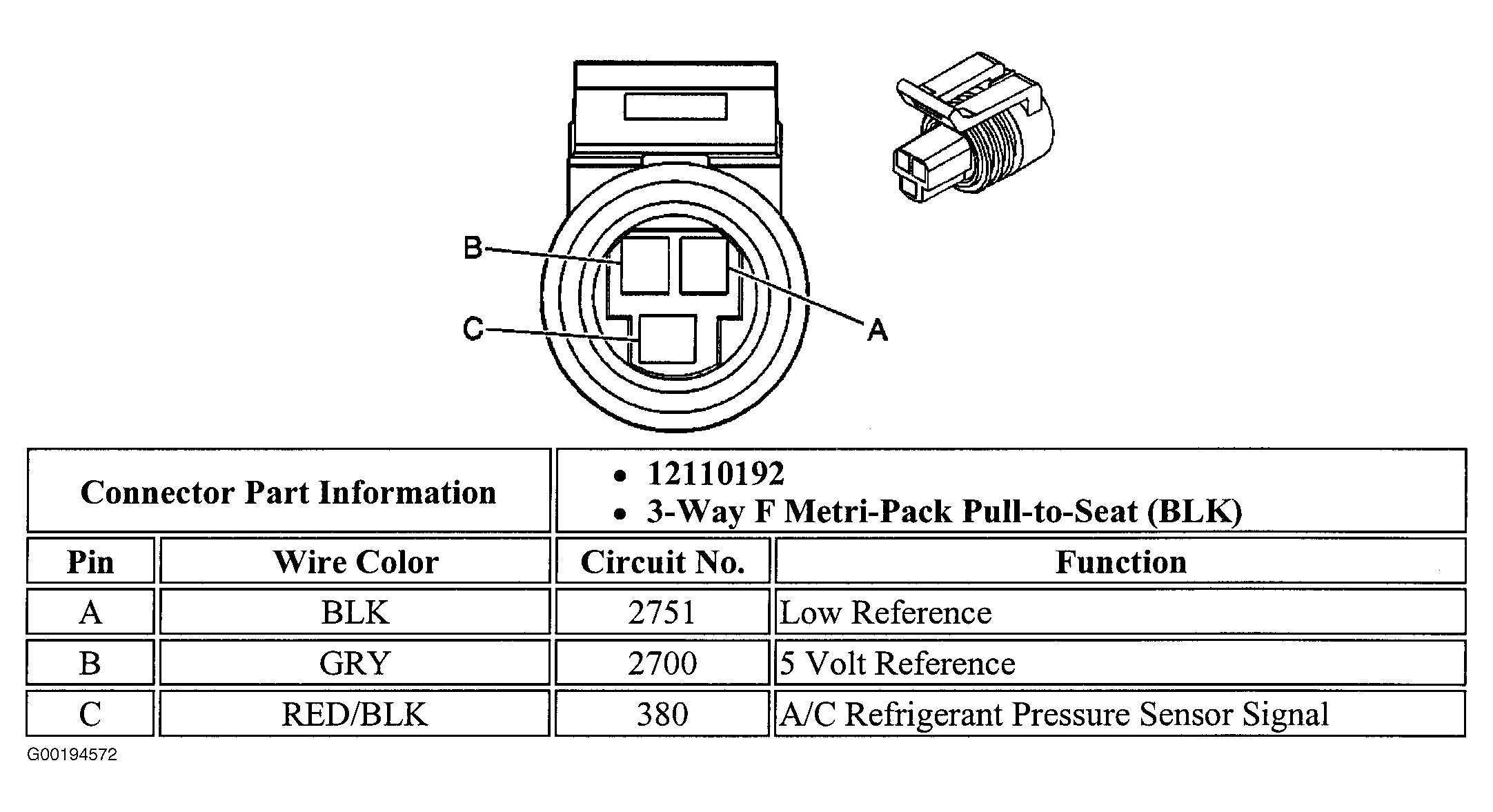

Fig 1: Pressure Sensor

G00194572

Courtesy of GENERAL MOTORS CORP.
