Ambient Light Sensor Connector End View

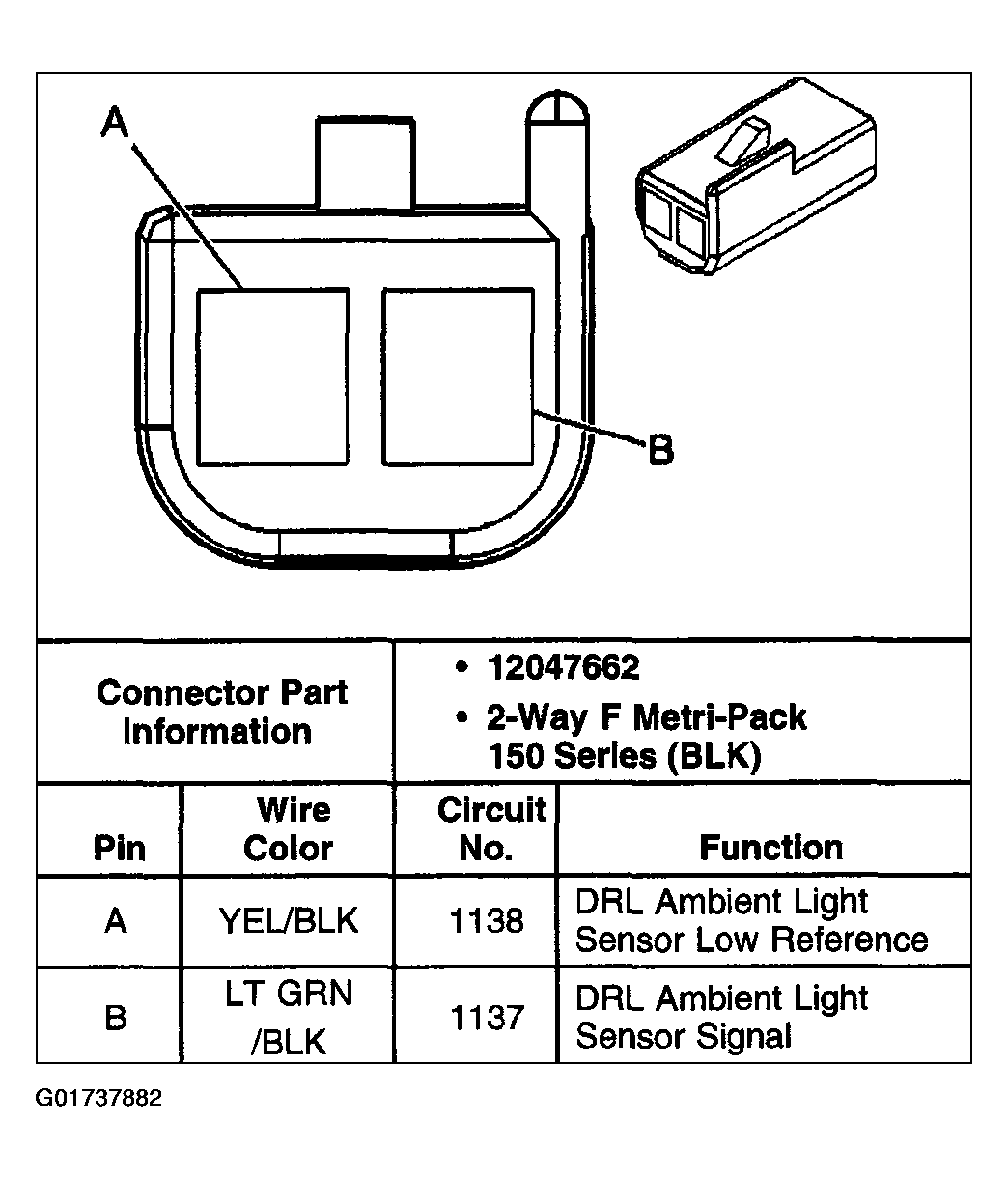

Fig 1: Ambient Light Sensor

G01737882

Courtesy of GENERAL MOTORS CORP.
