Data Link Communications Connector End Views

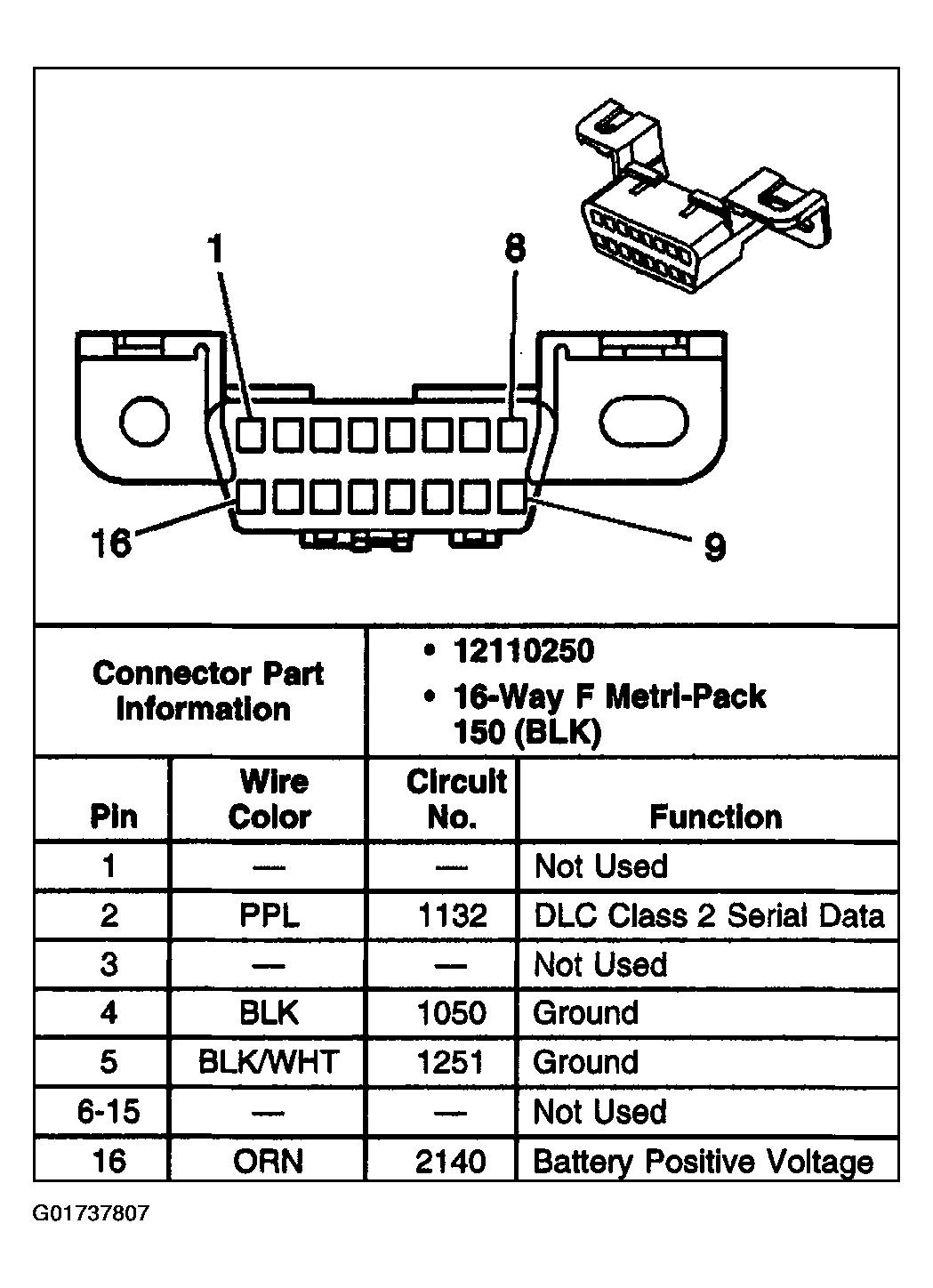

Fig 1: Identifying Data Link Connector (DLC) Terminals
G01737807Courtesy of GENERAL MOTORS CORP.

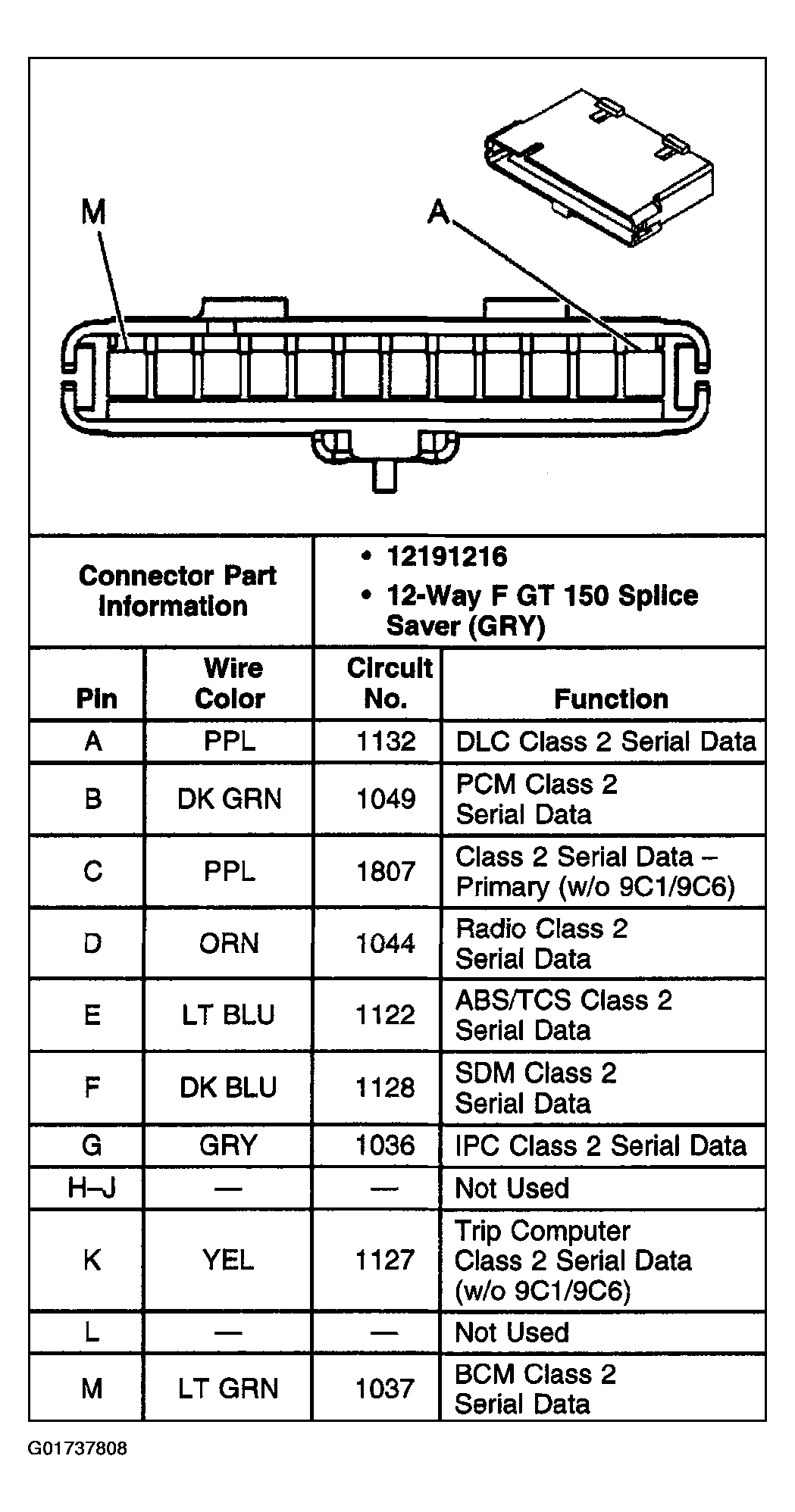

Fig 2: Identifying Splice Pack SP205 Terminals
G01737808Courtesy of GENERAL MOTORS CORP.
