System Specifications

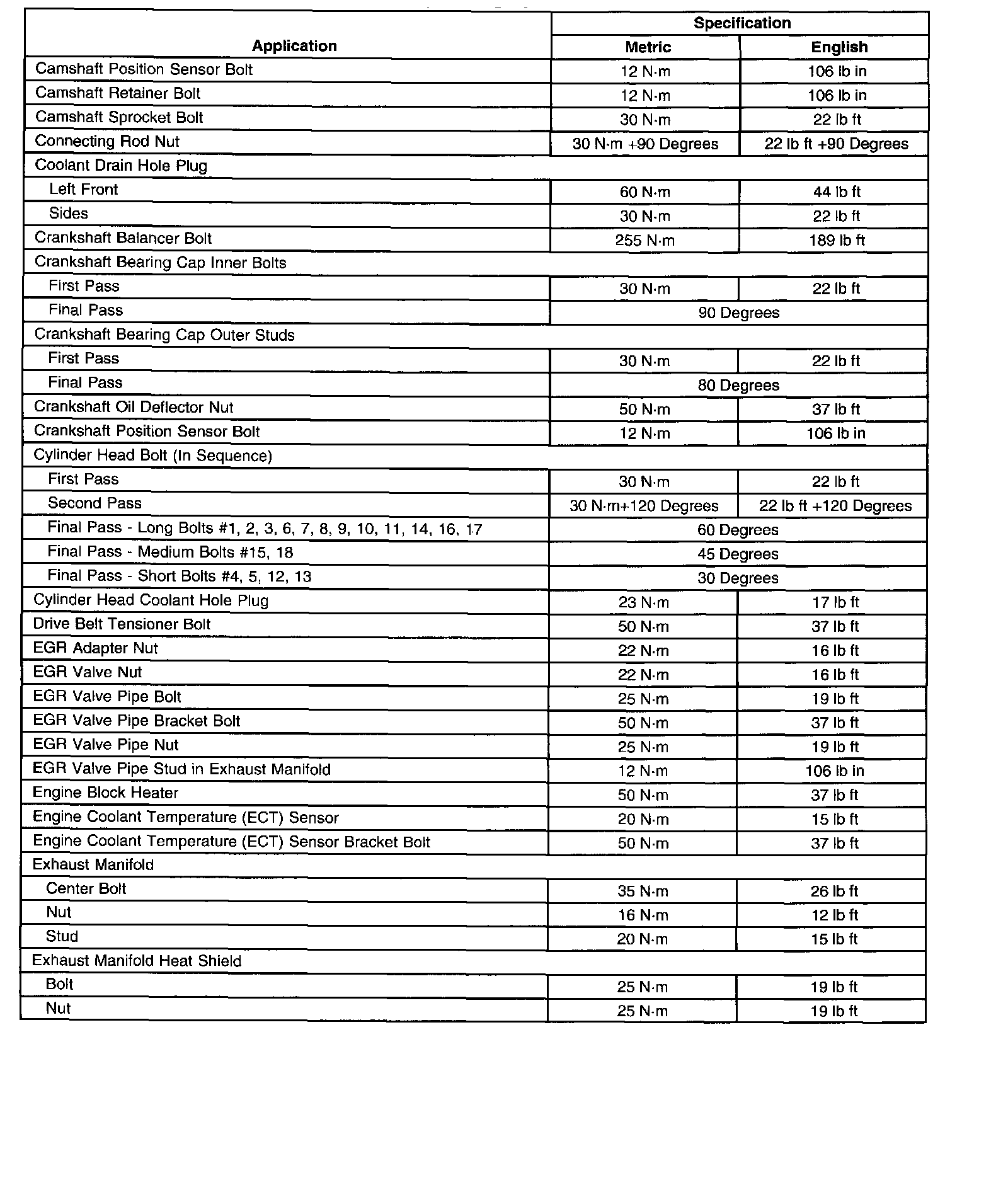

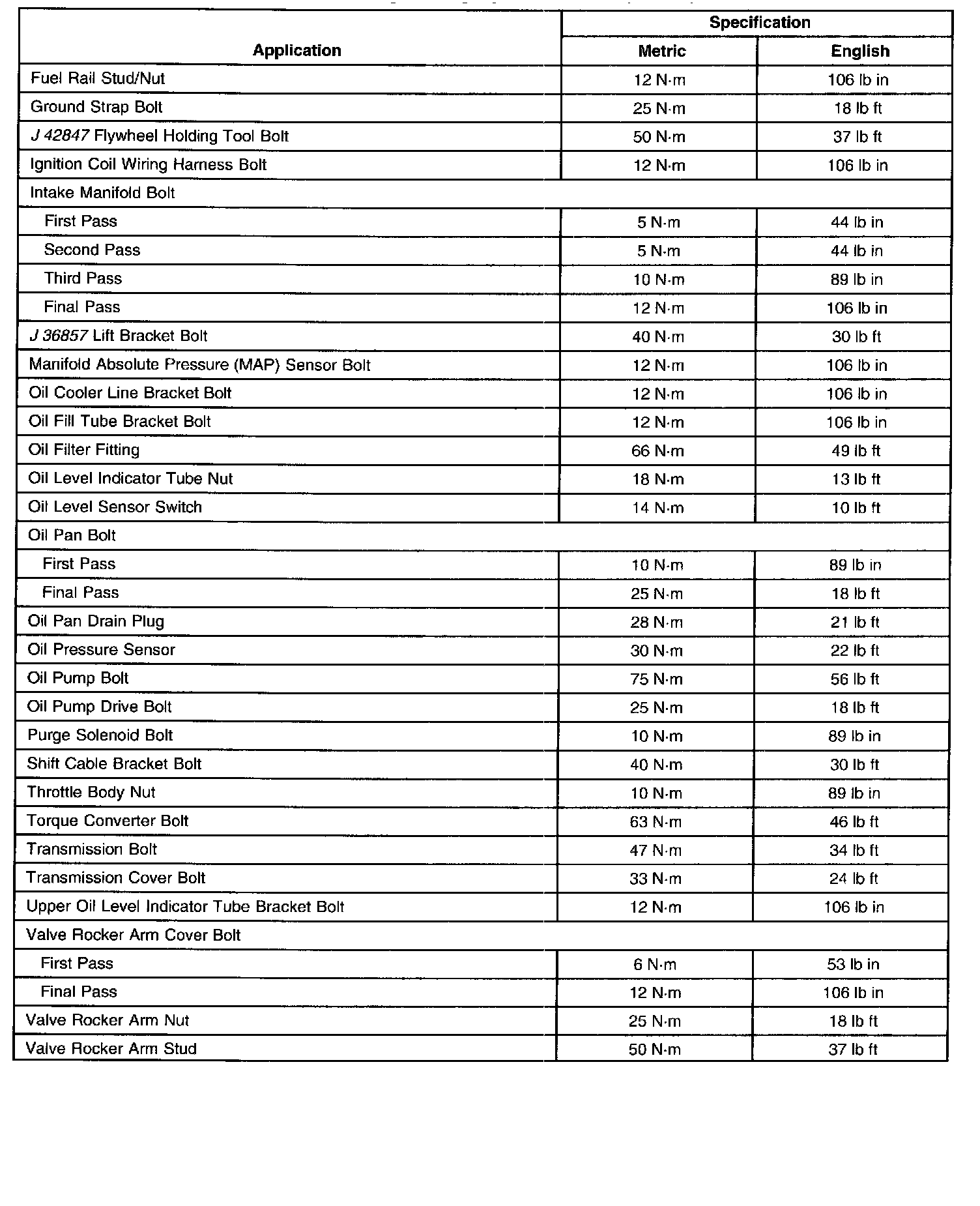

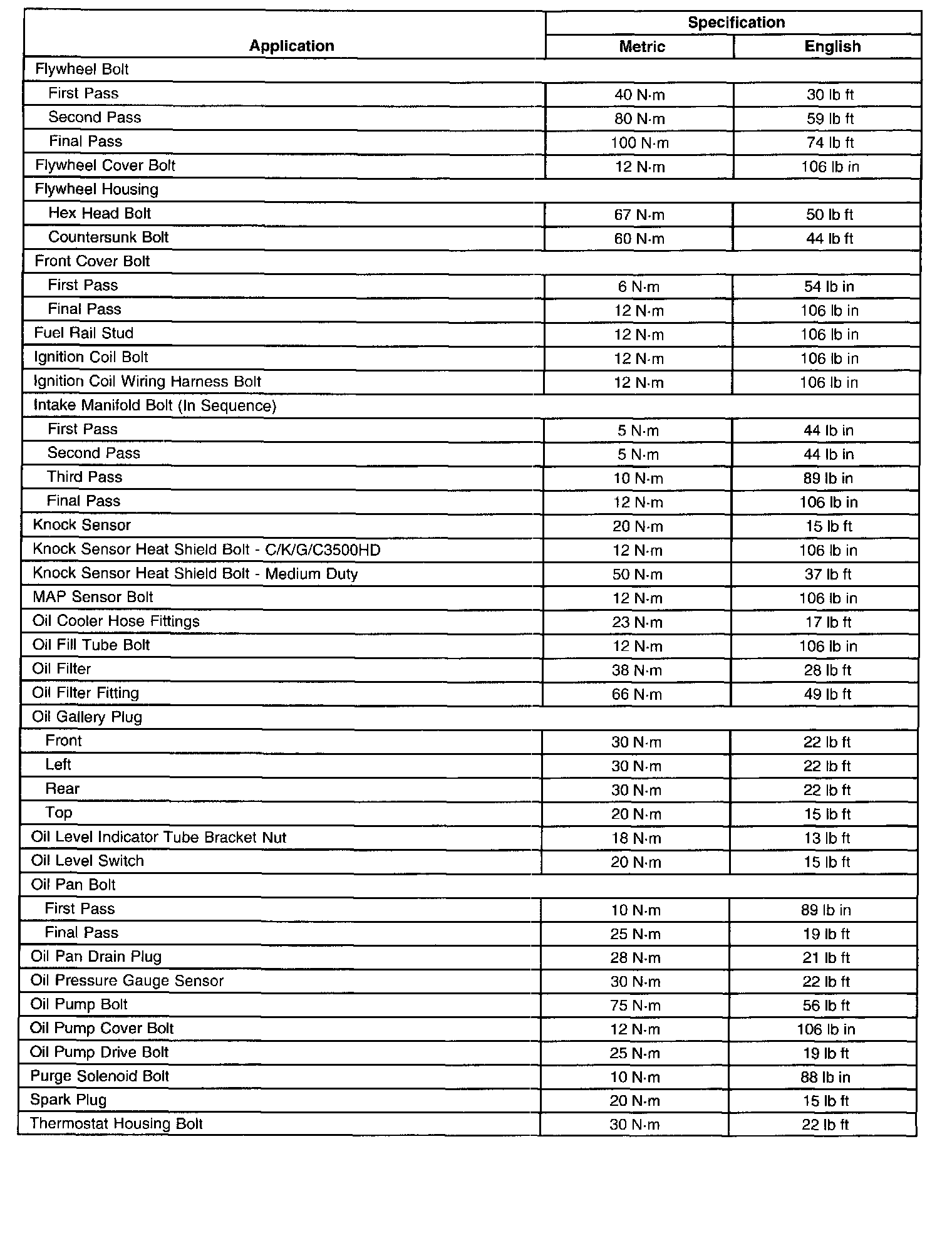

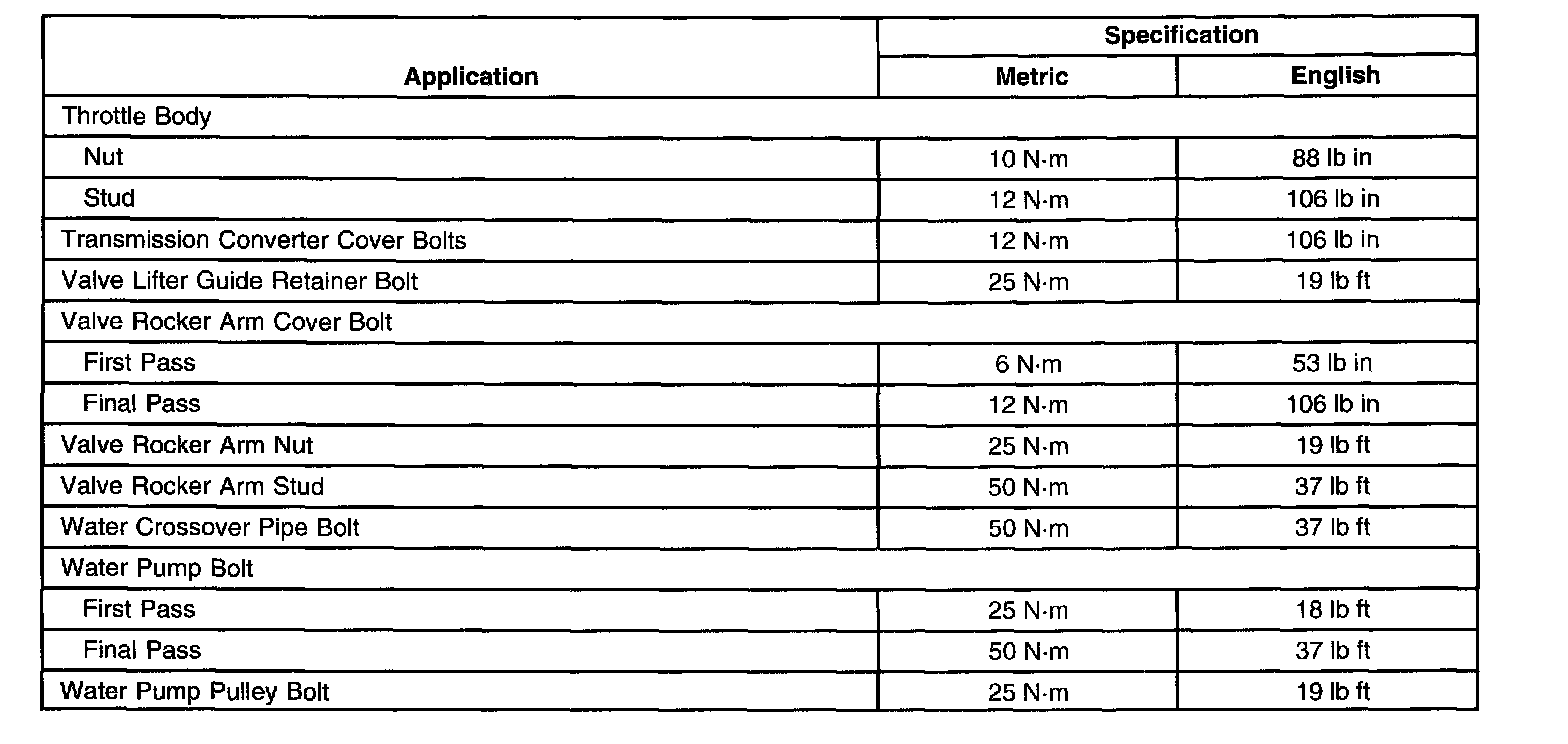

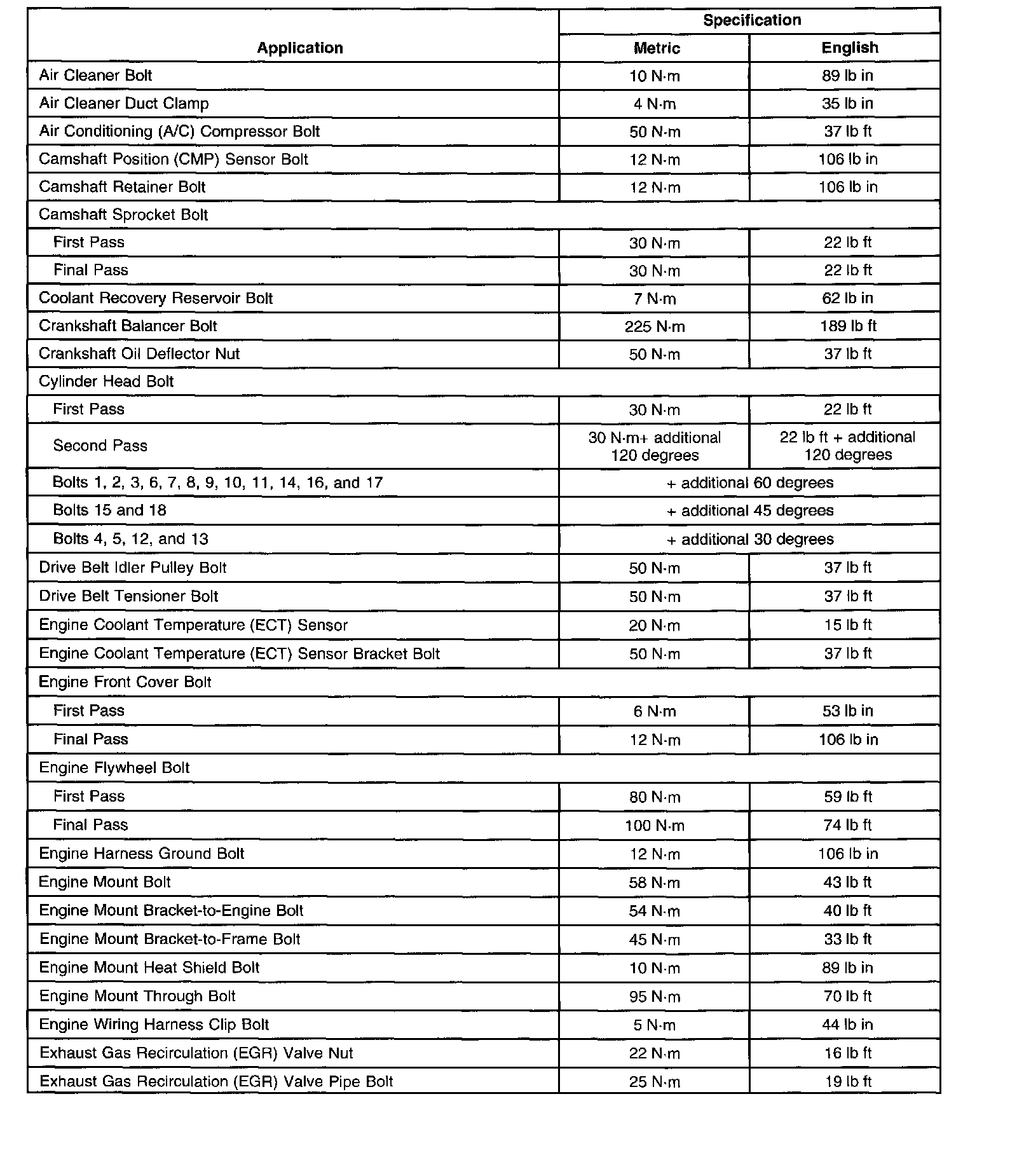

Fastener Tightening Specifications








General











Overhaul

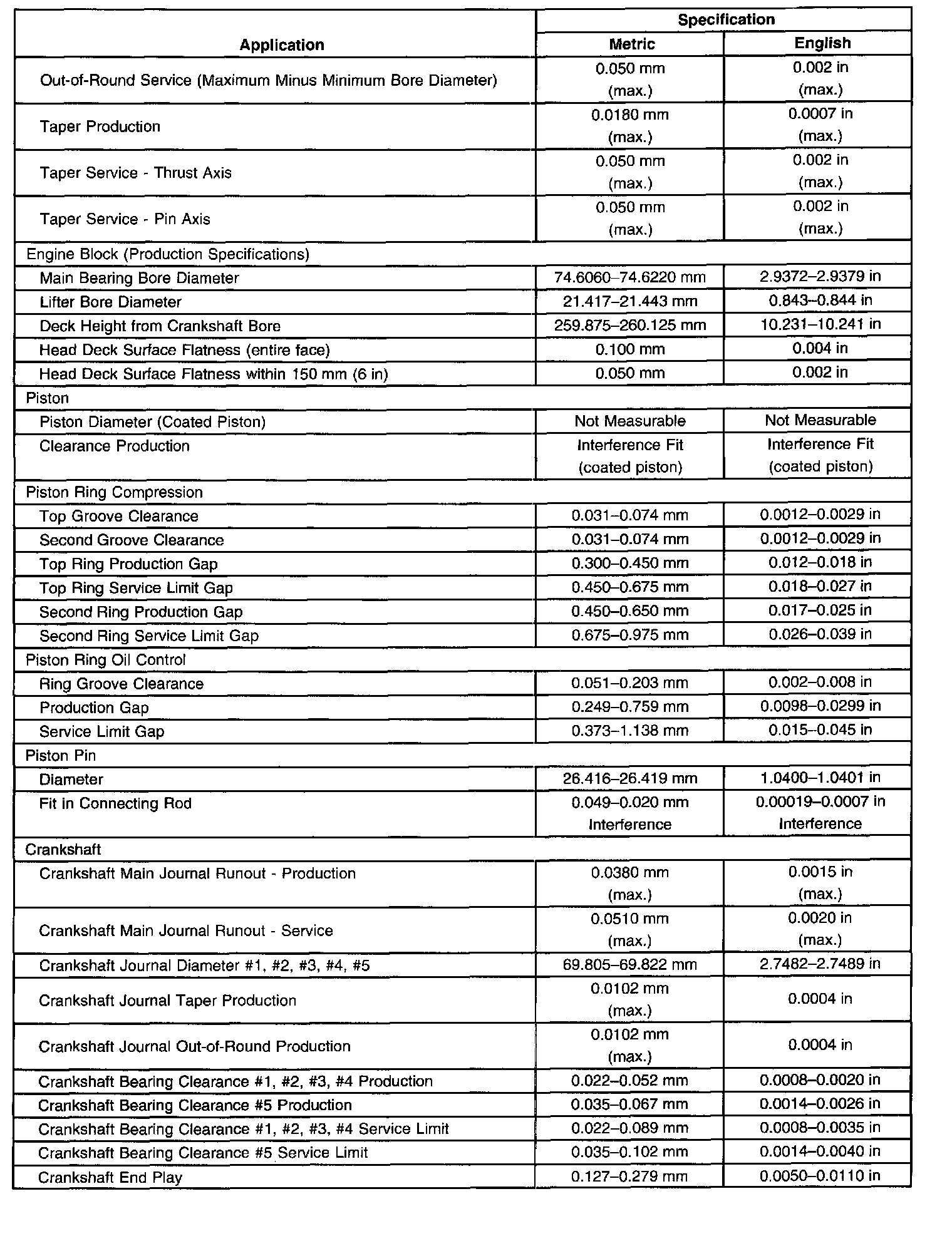

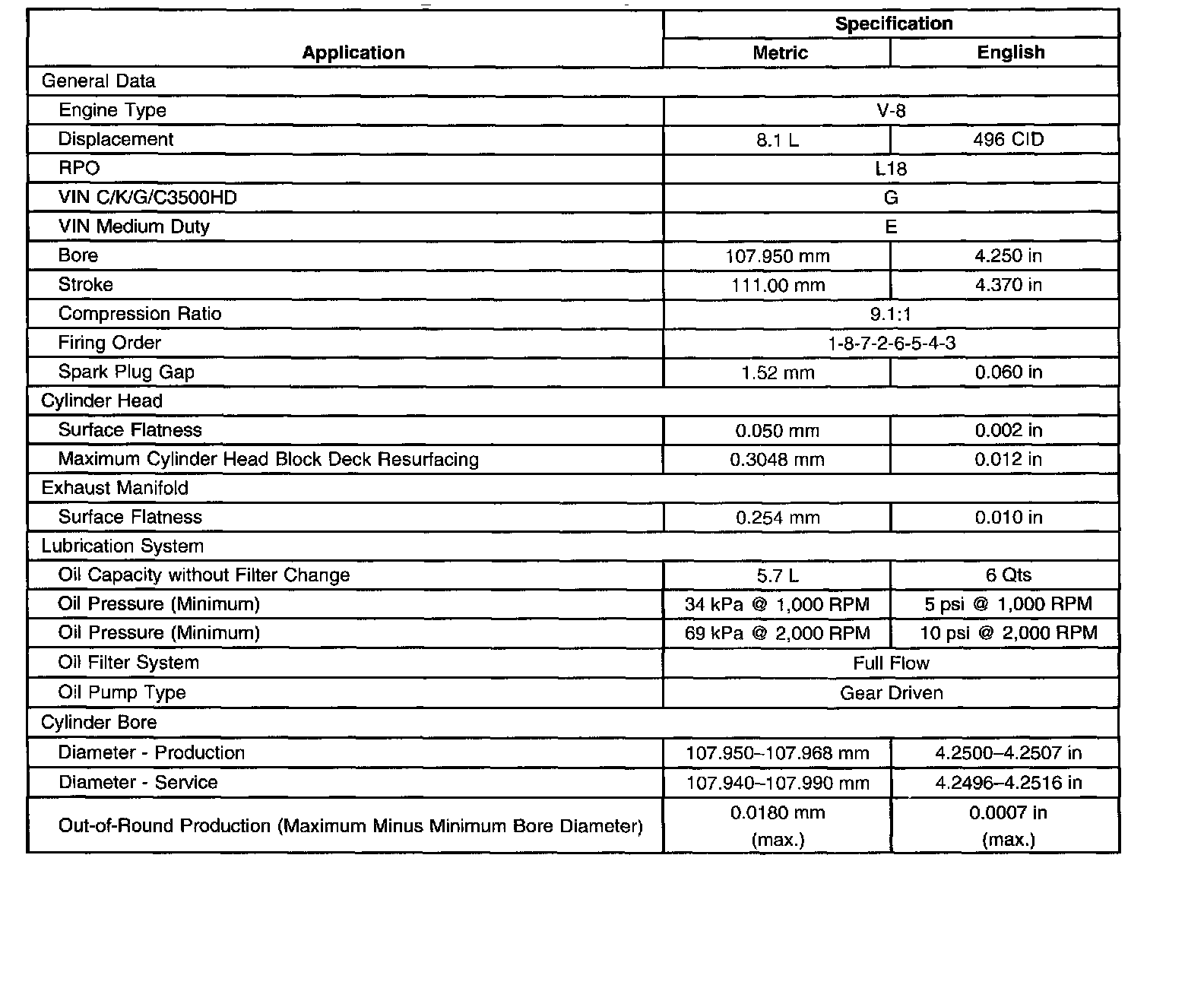

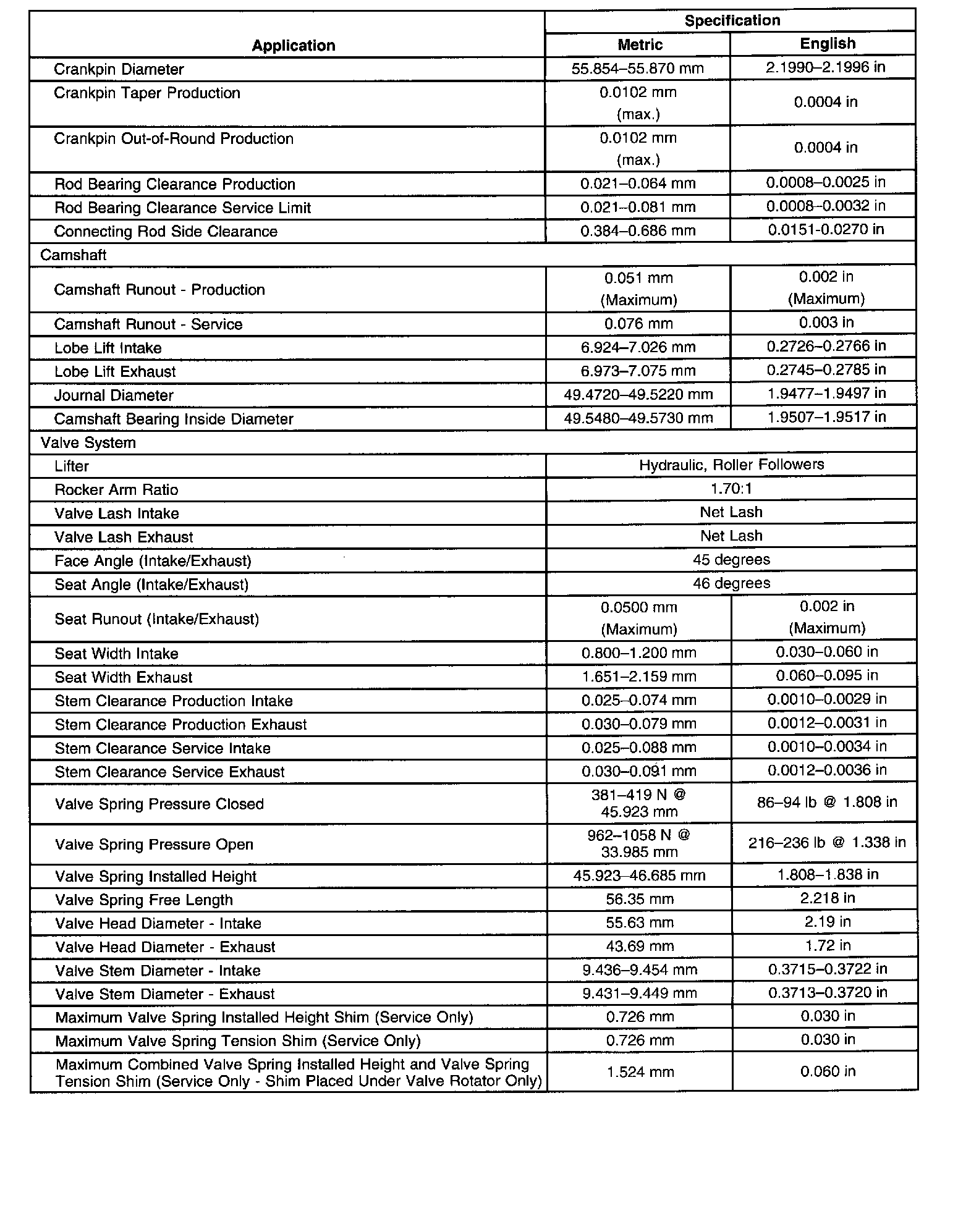

Engine Mechanical Specifications





General











Overhaul

Tightening Sequence

Flywheel
Refer to the procedure Service and Repair





Intake Manifold
Refer to the procedure Service and Repair

Exhaust Manifold
Refer to the procedure Service and Repair





Cylinder Head
Refer to the procedure Service and Repair
