LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Engine Block and Components

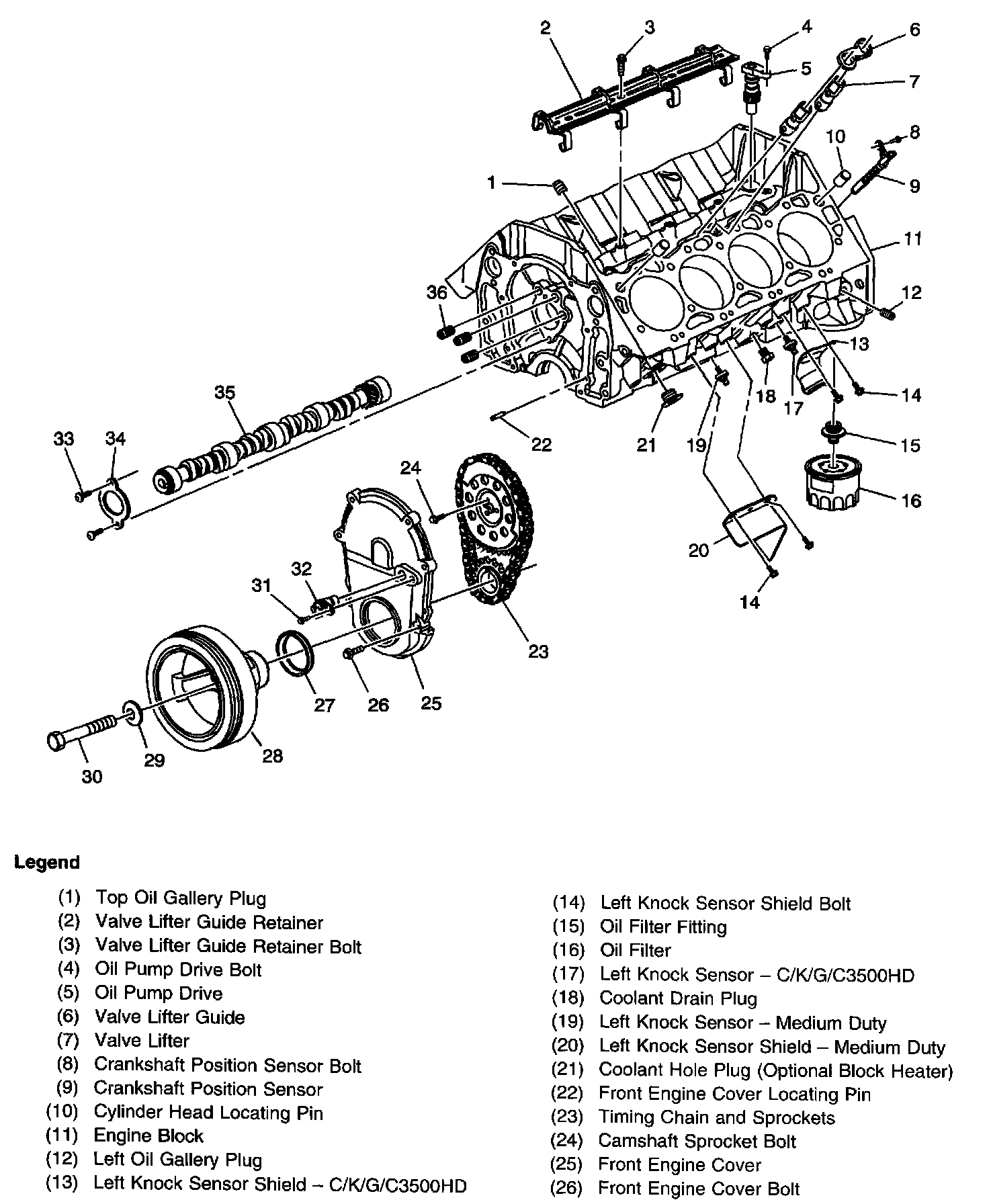

Lower Engine Block and Components

Lower Engine Block and Components





Part 1 of 2





Part 2 of 2
