Differential Assembly
>>
Rear Axle Disassembled Views
Rear Axle Disassembled Views
Rear Axle Disassembled Views

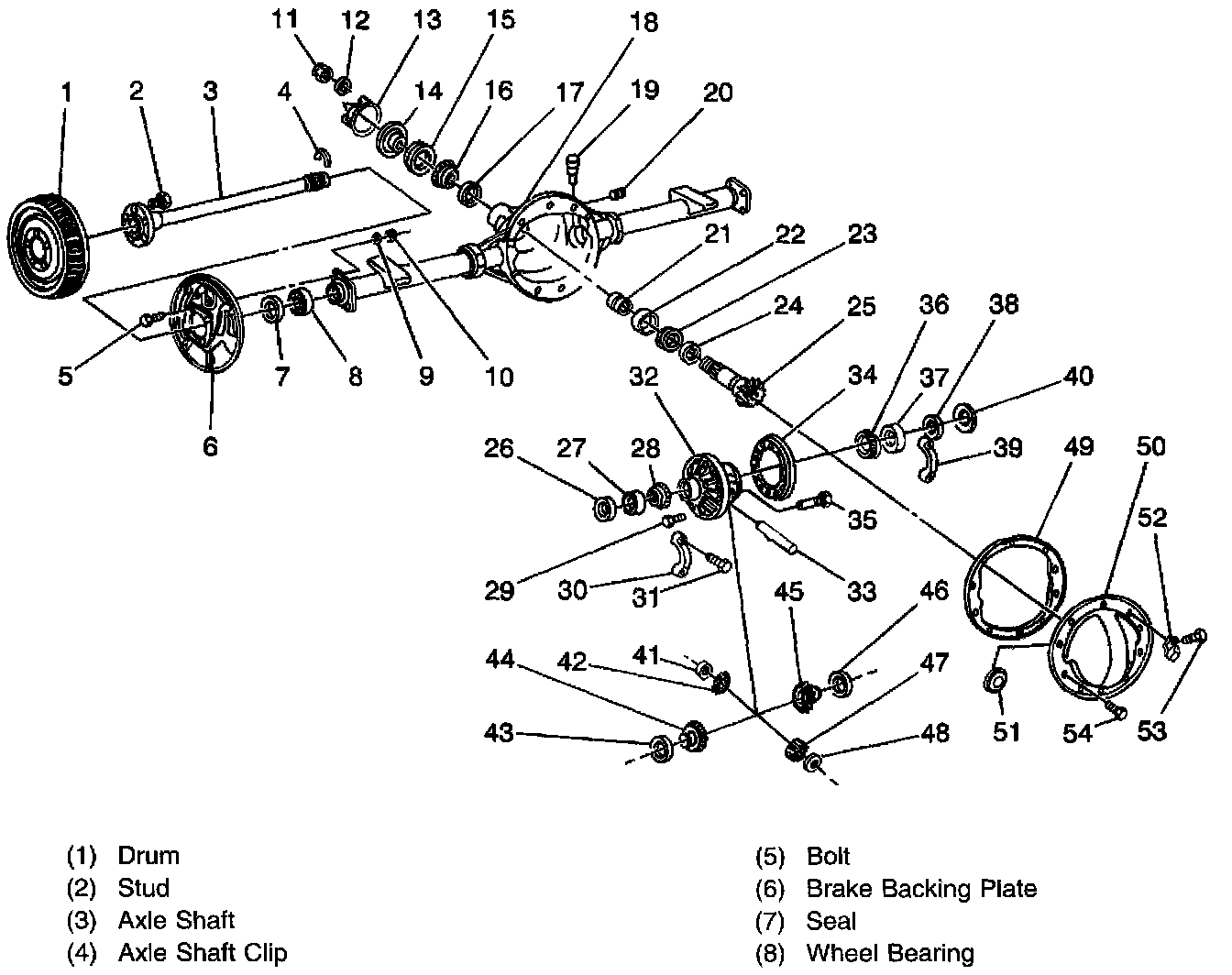

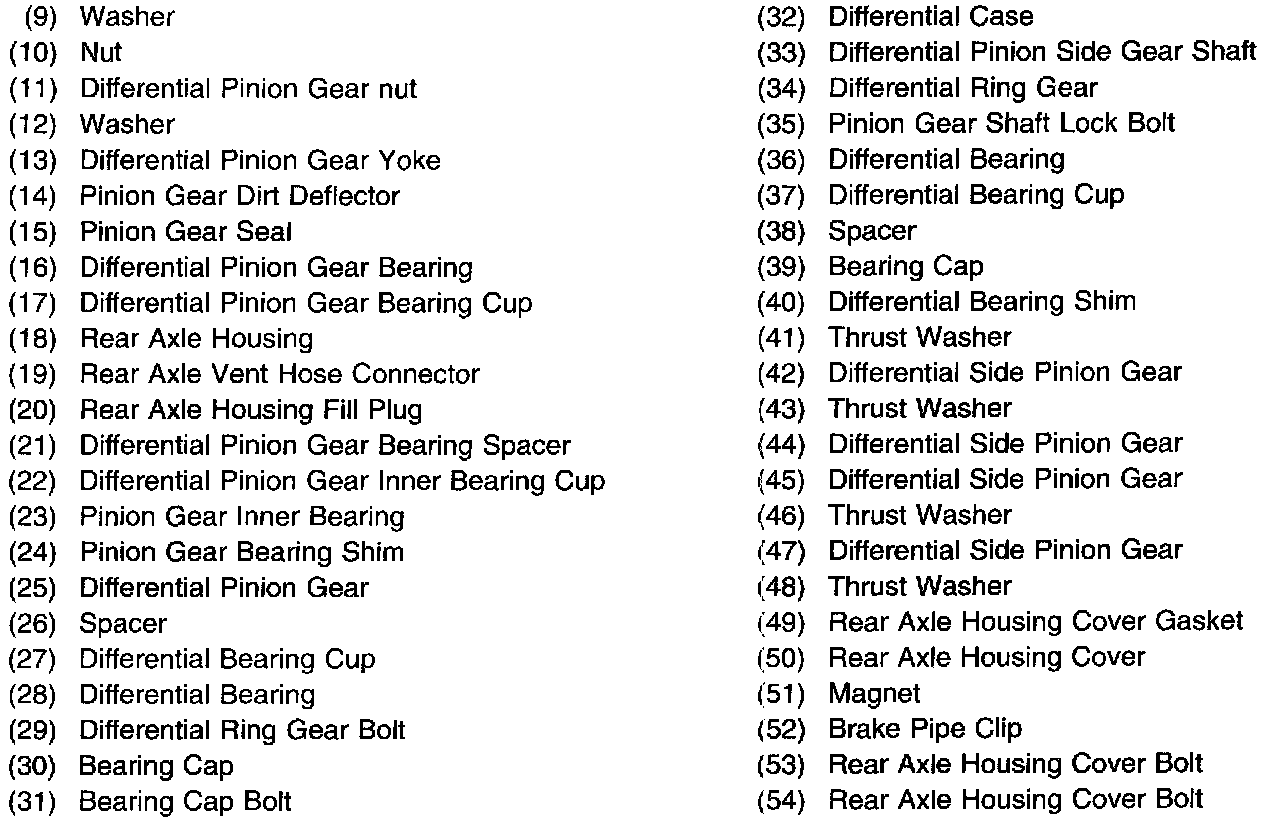

8.6 Inch Rear Drive Axle

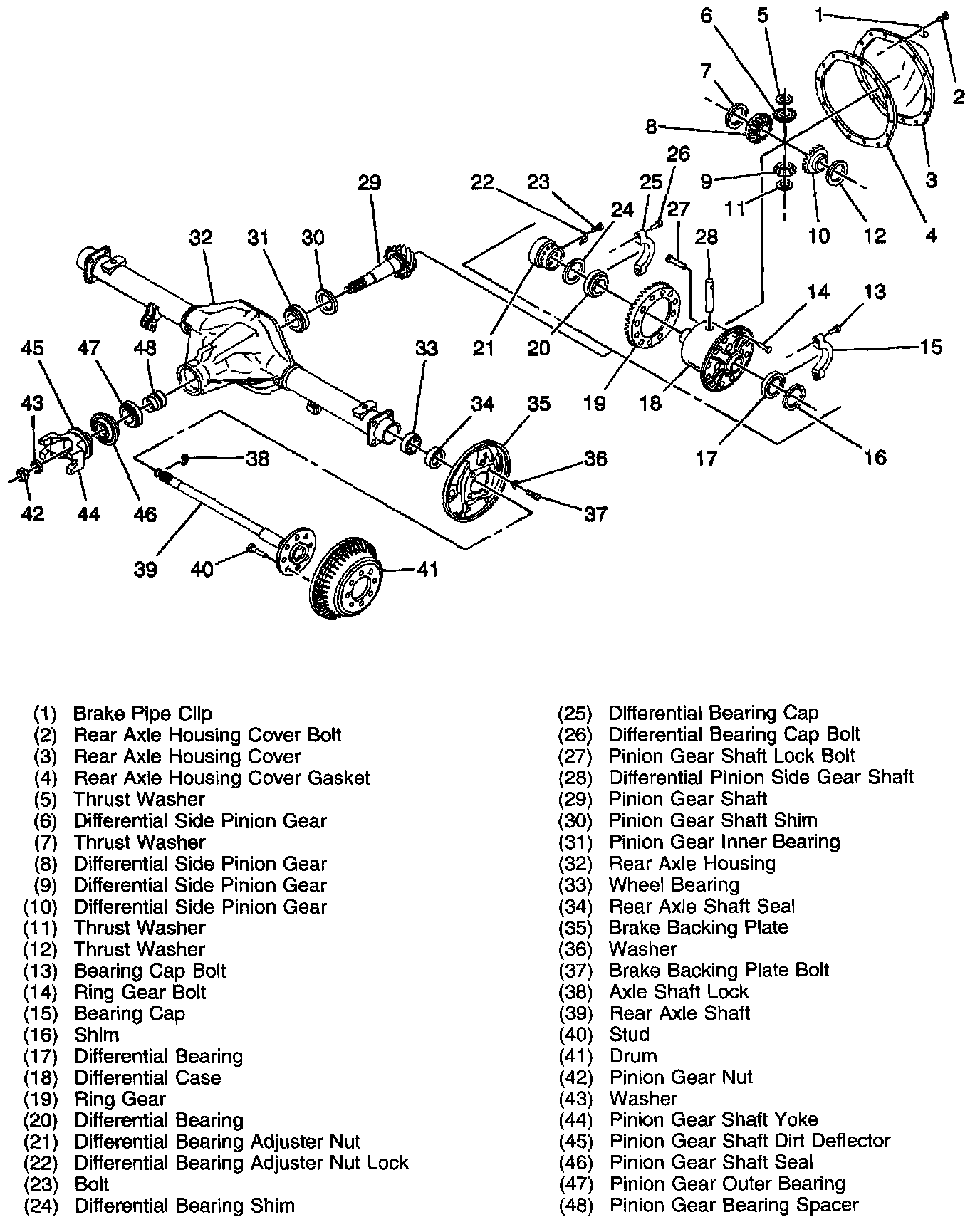

9.5 Inch Rear Drive Axle
