Fuse Block
>>
IP Fuse Block Connector
IP Fuse Block Connector

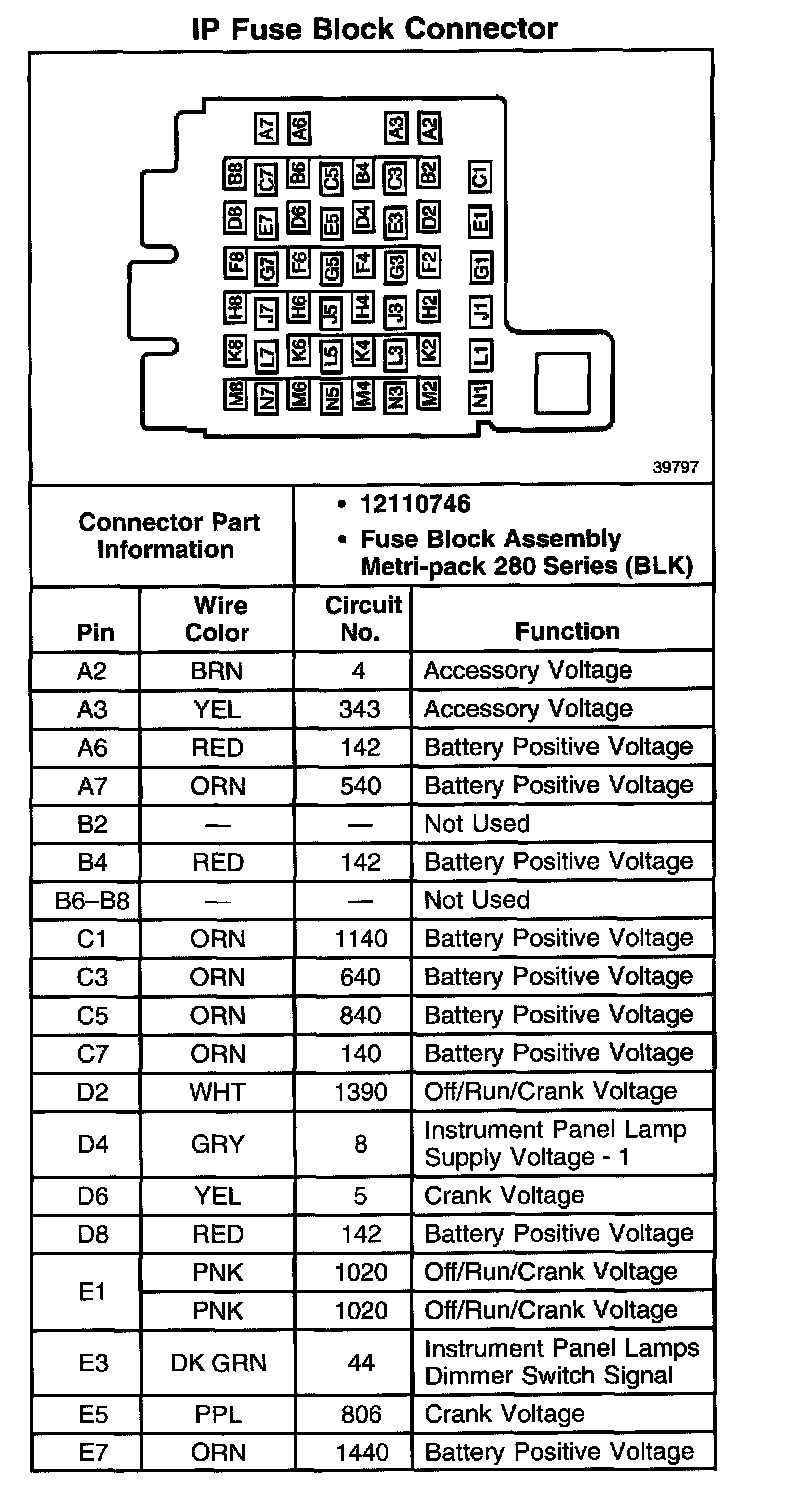

IP Fuse Block Connector Part 1:

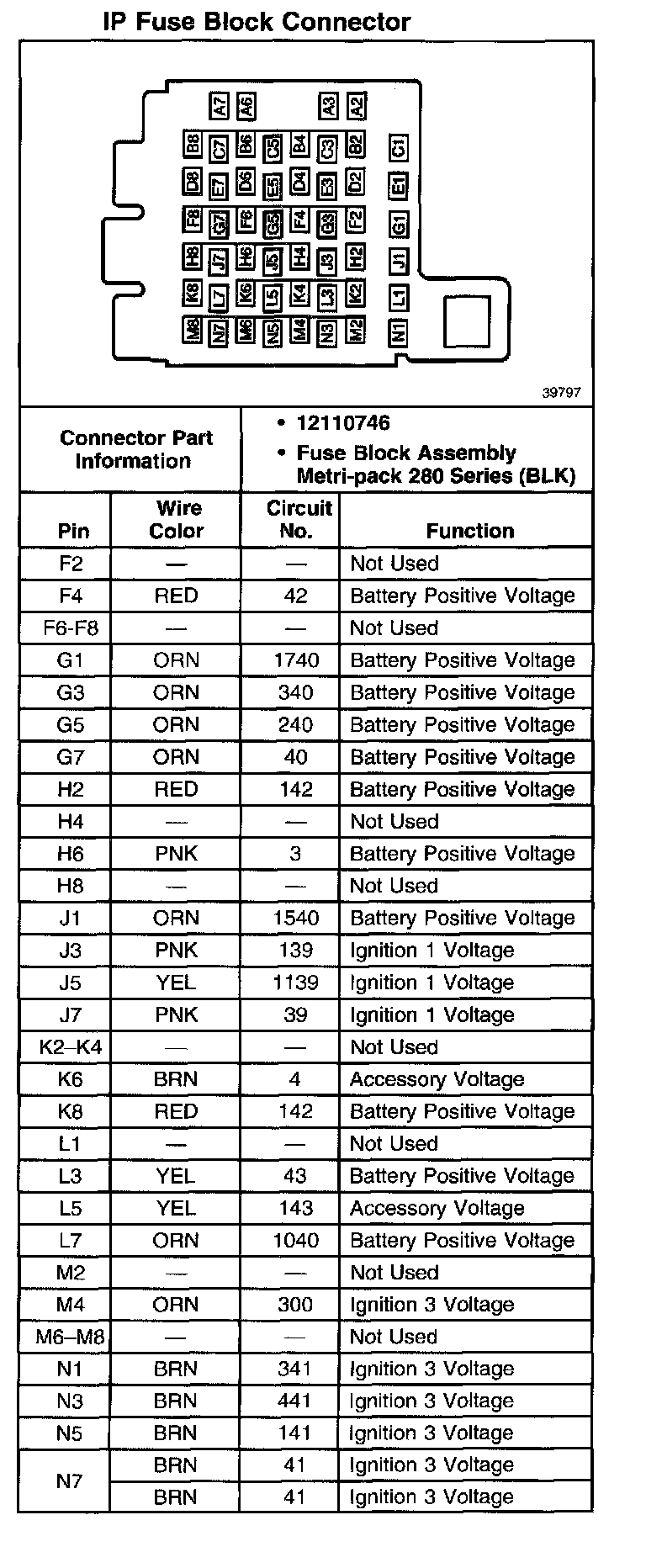

IP Fuse Block Connector Part 2:
