Coolant Temperature Sensor/Switch (For Computer)

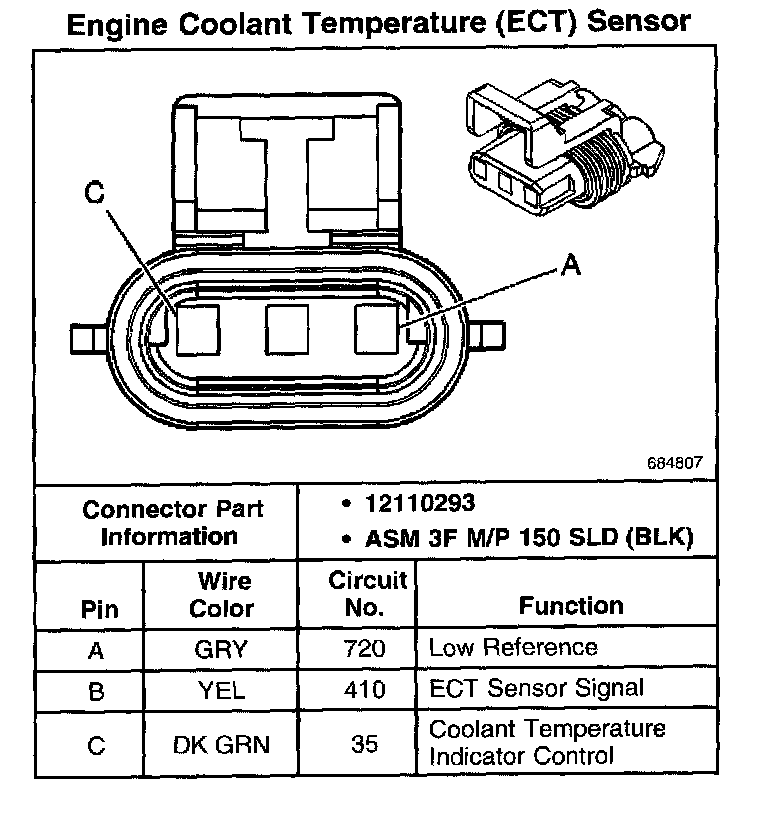

Engine Coolant Temperature (ECT) Sensor:



Engine Coolant Temperature Gage Sensor:
