Home >> Chevrolet >> 2002 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

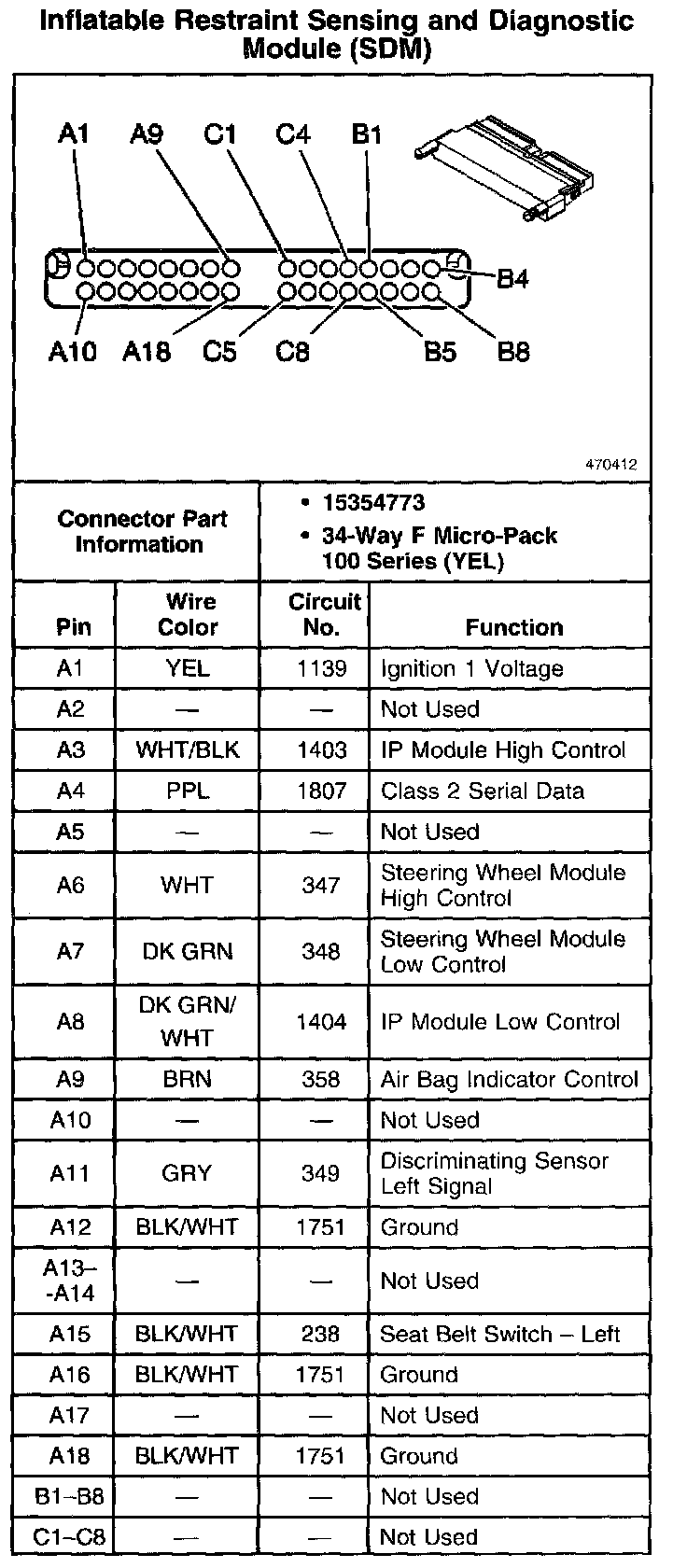

Inflatable Restraint Sensing And Diagnostic Module (SDM):
