Power, Ground TAC Motor, Module and TP Sensor

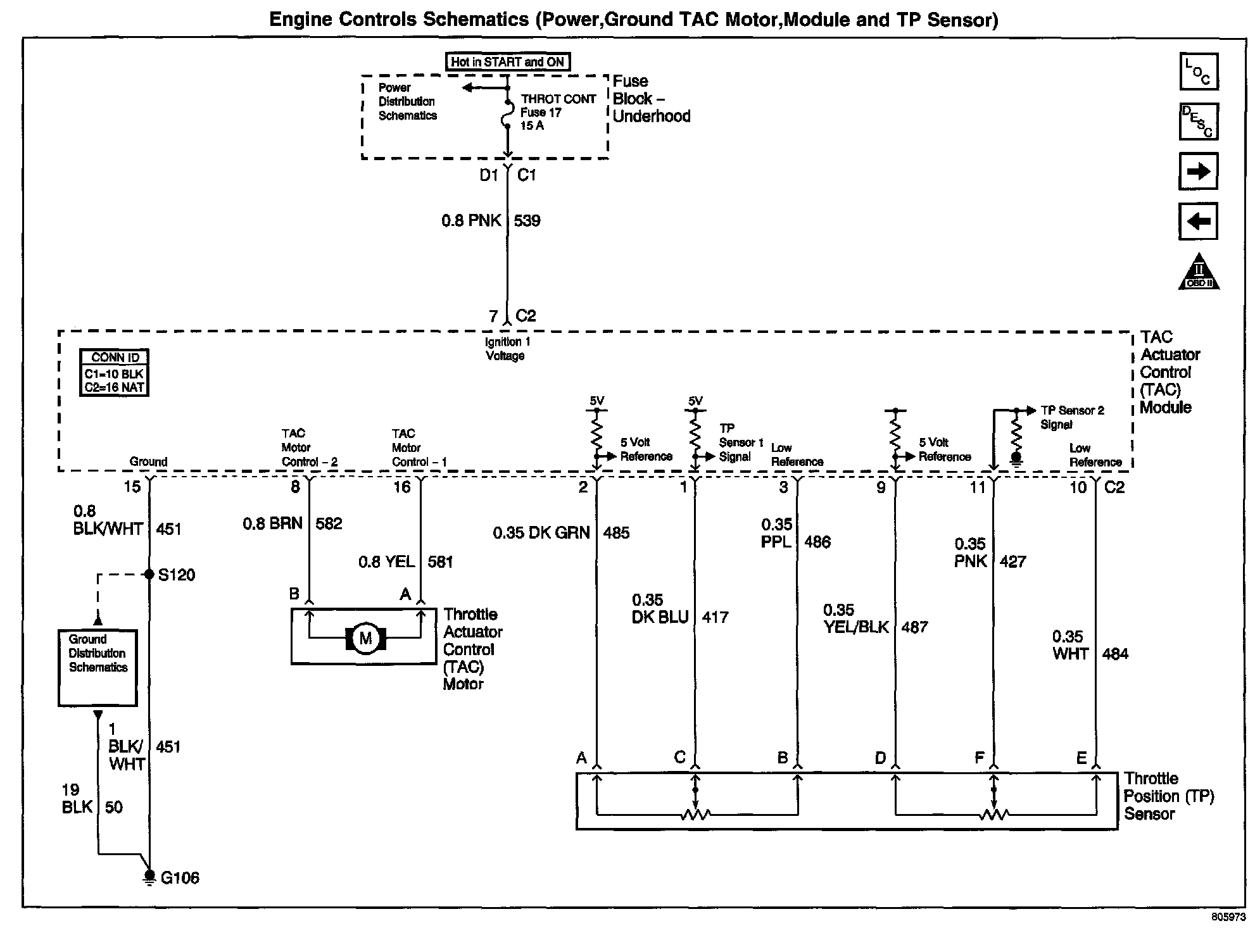

Engine Controls Schematics: Power, Ground TAC Motor, Module And TP Sensor:
