C1 (Blue)
C1 (Blue)

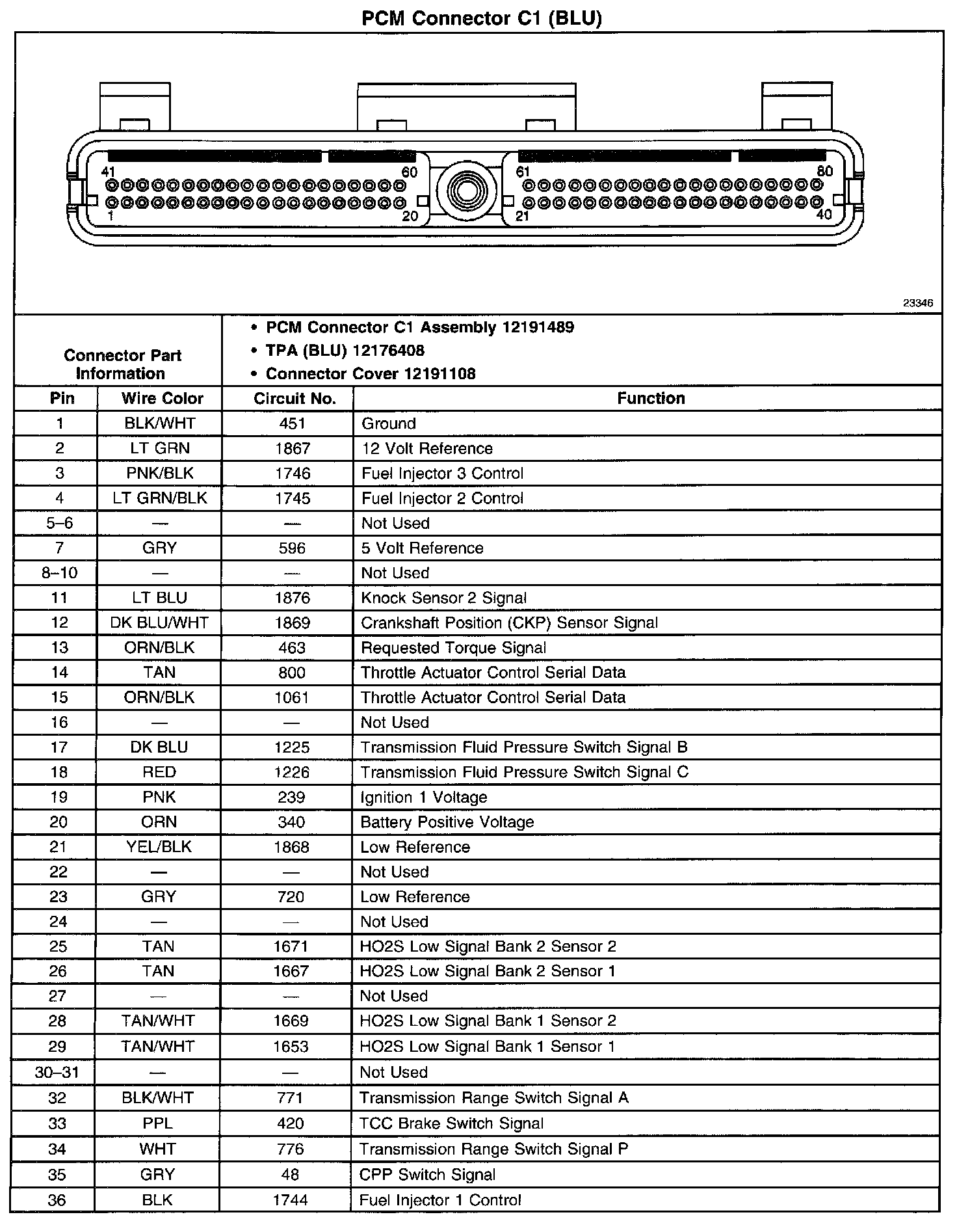

PCM Connector C1 (BLU) Part 1:

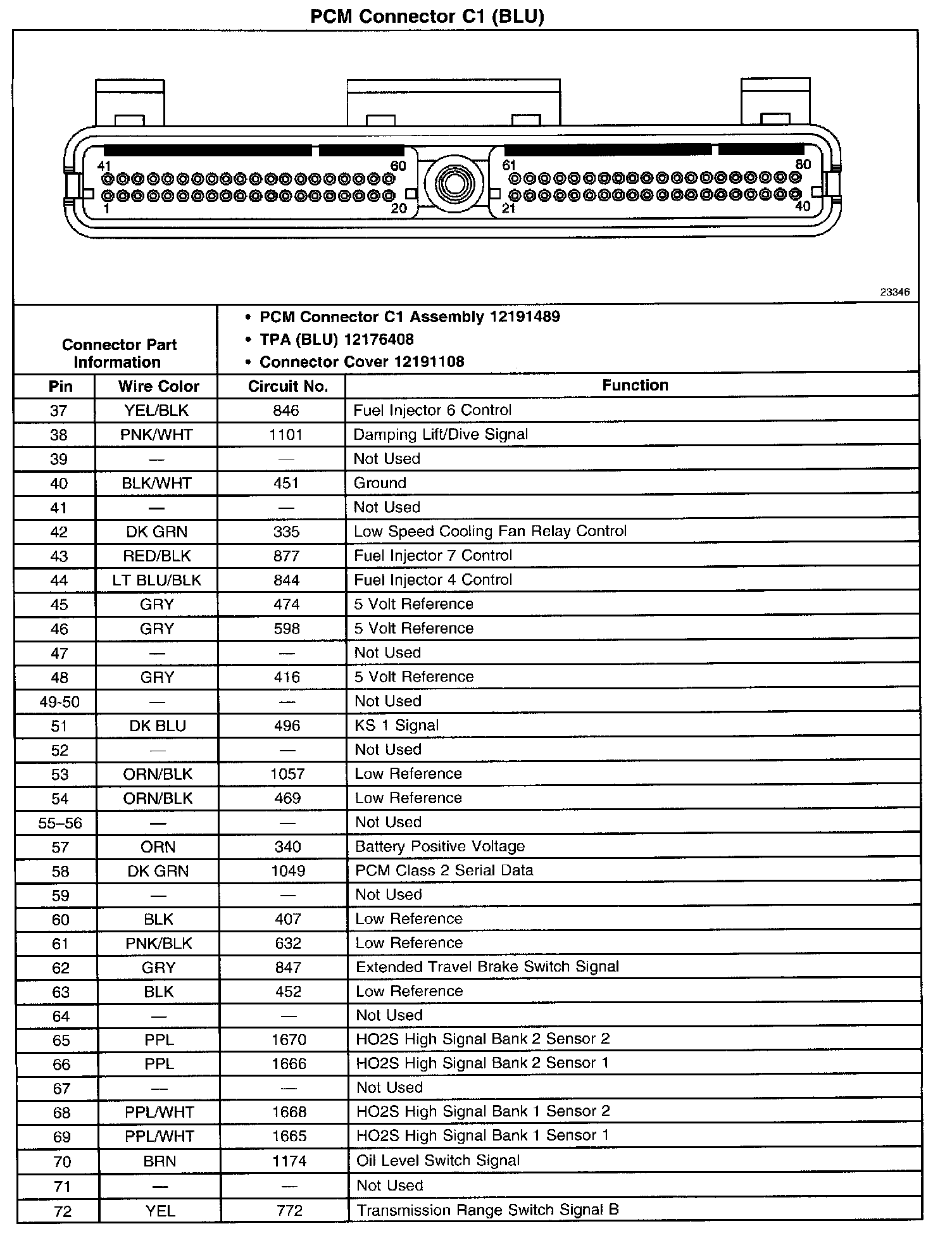

PCM Connector C1 (BLU) Part 2:

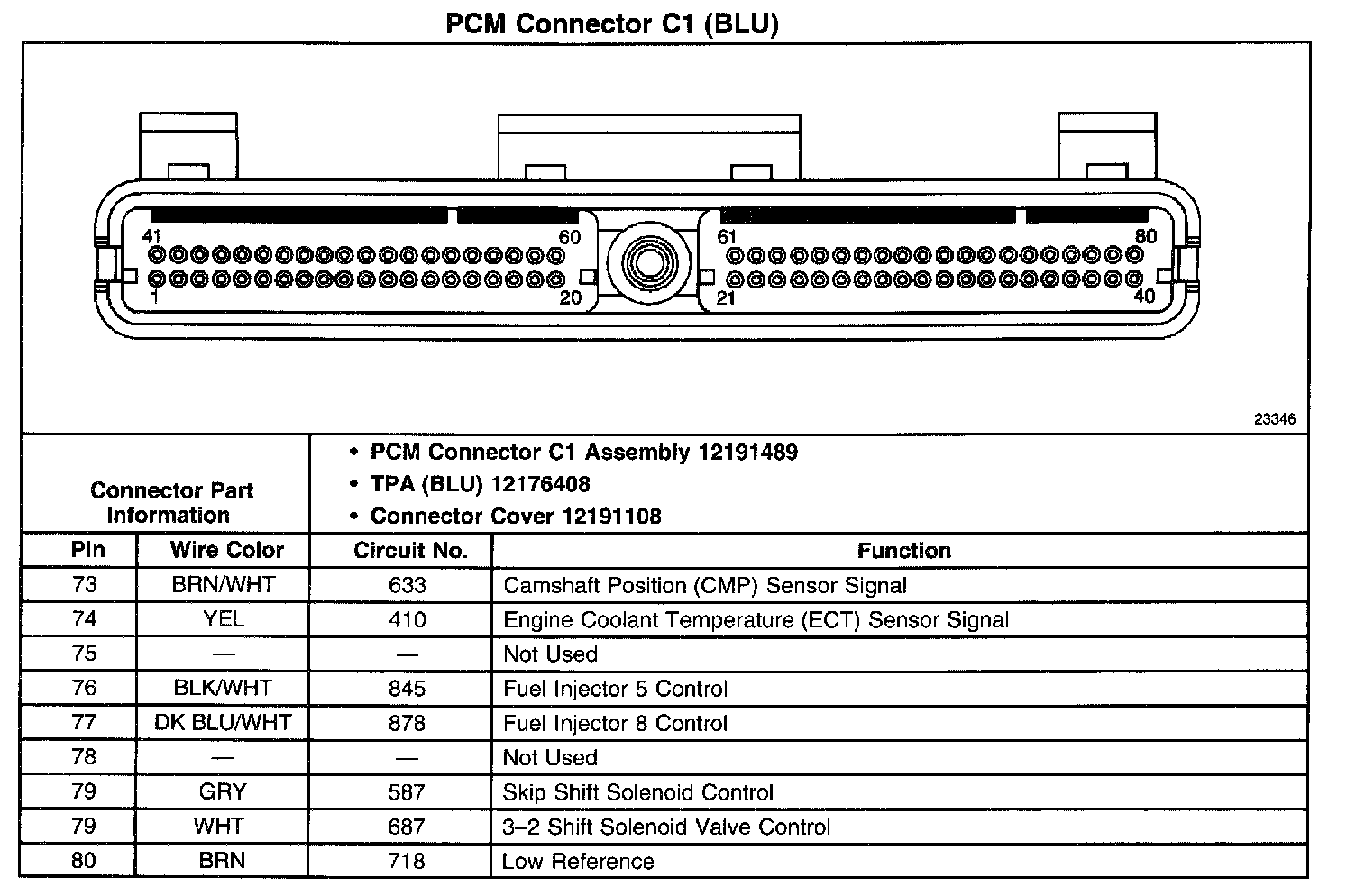

PCM Connector C1 (BLU) Part 3:
