Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Drive Pinion Assembly

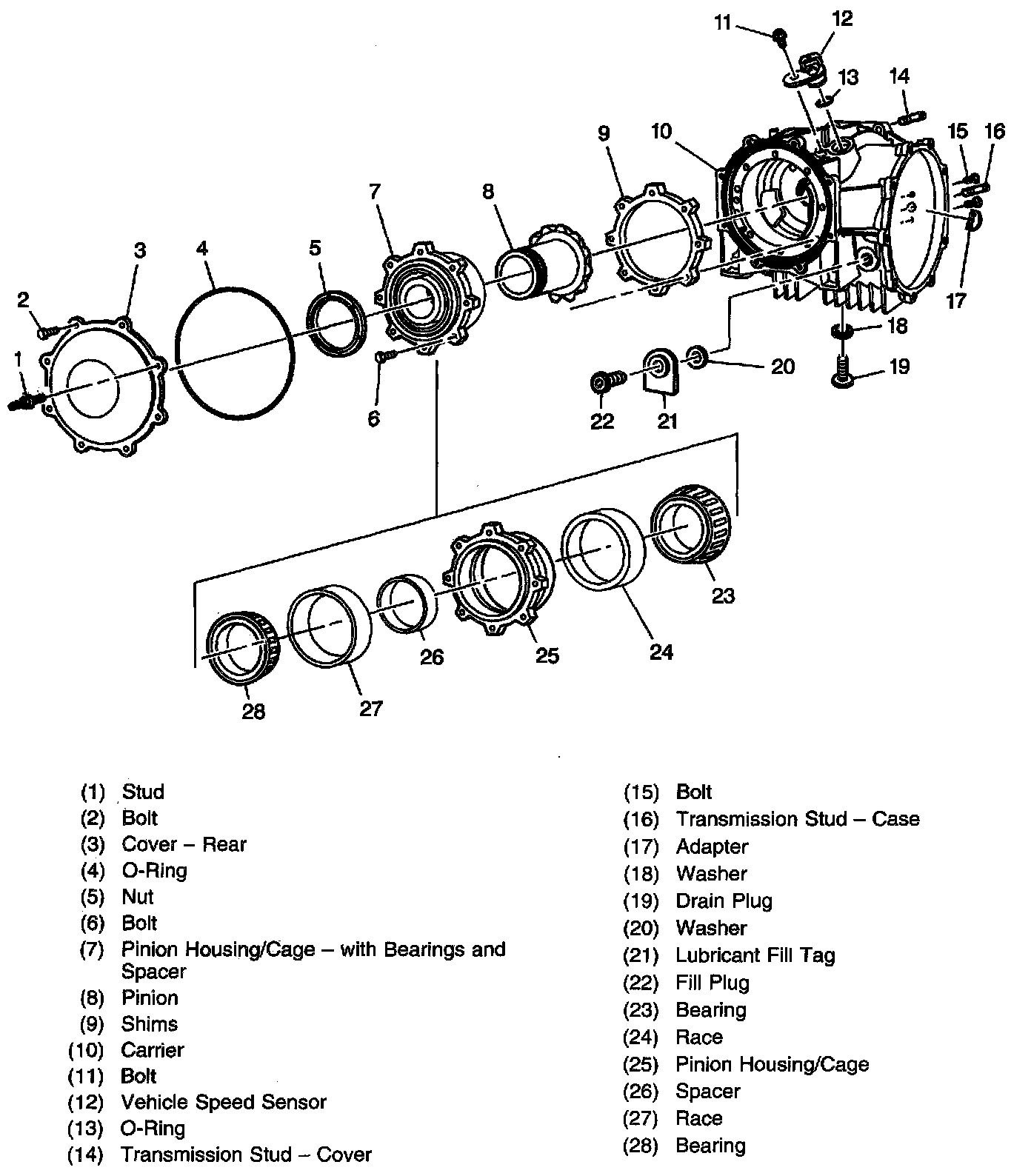

Drive Pinion Assembly
