Electronic Ignition Controls

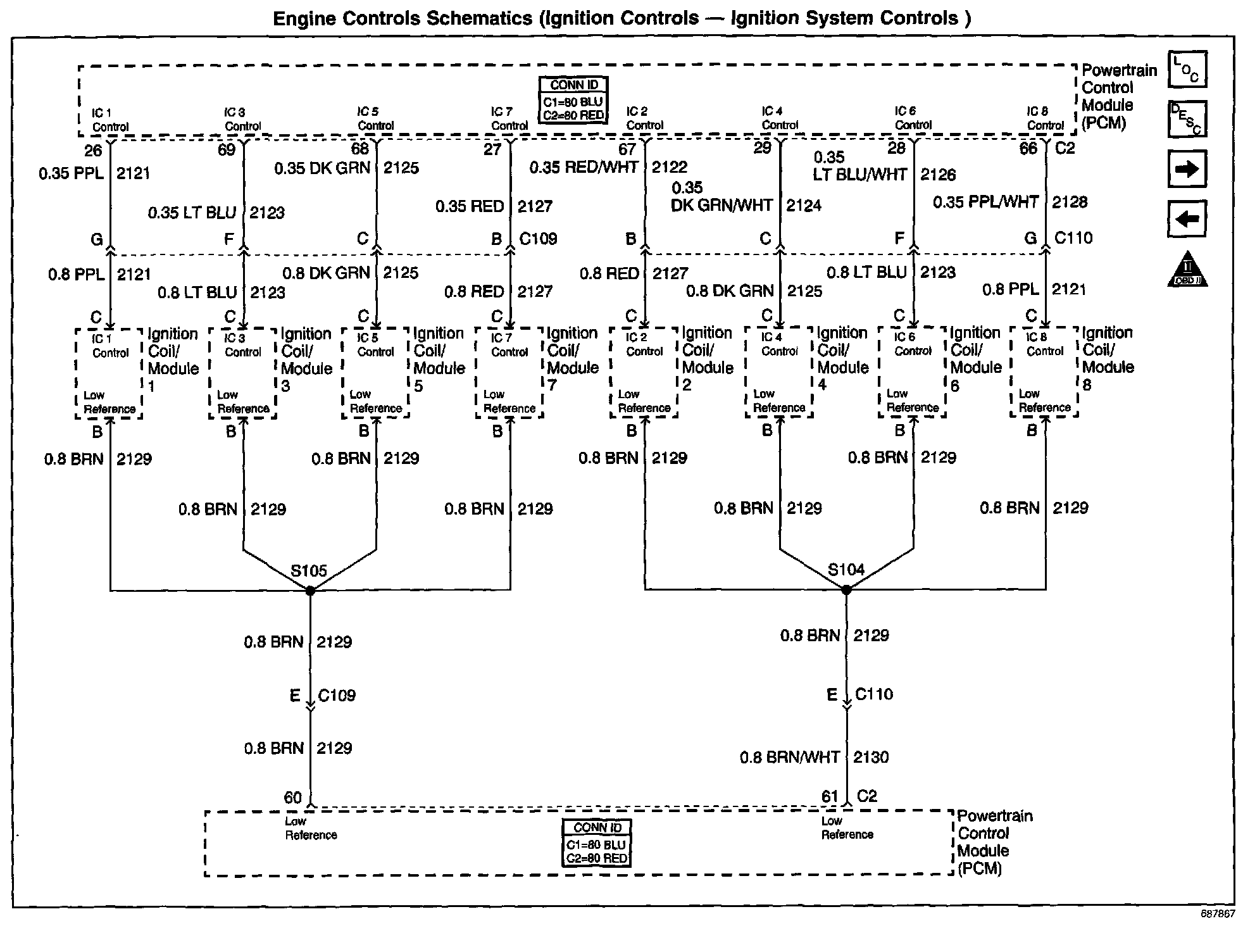

Engine Controls Schematics: Ignition Controls - Ignition System Controls:
