Module Power, Ground, Serial Data and MIL

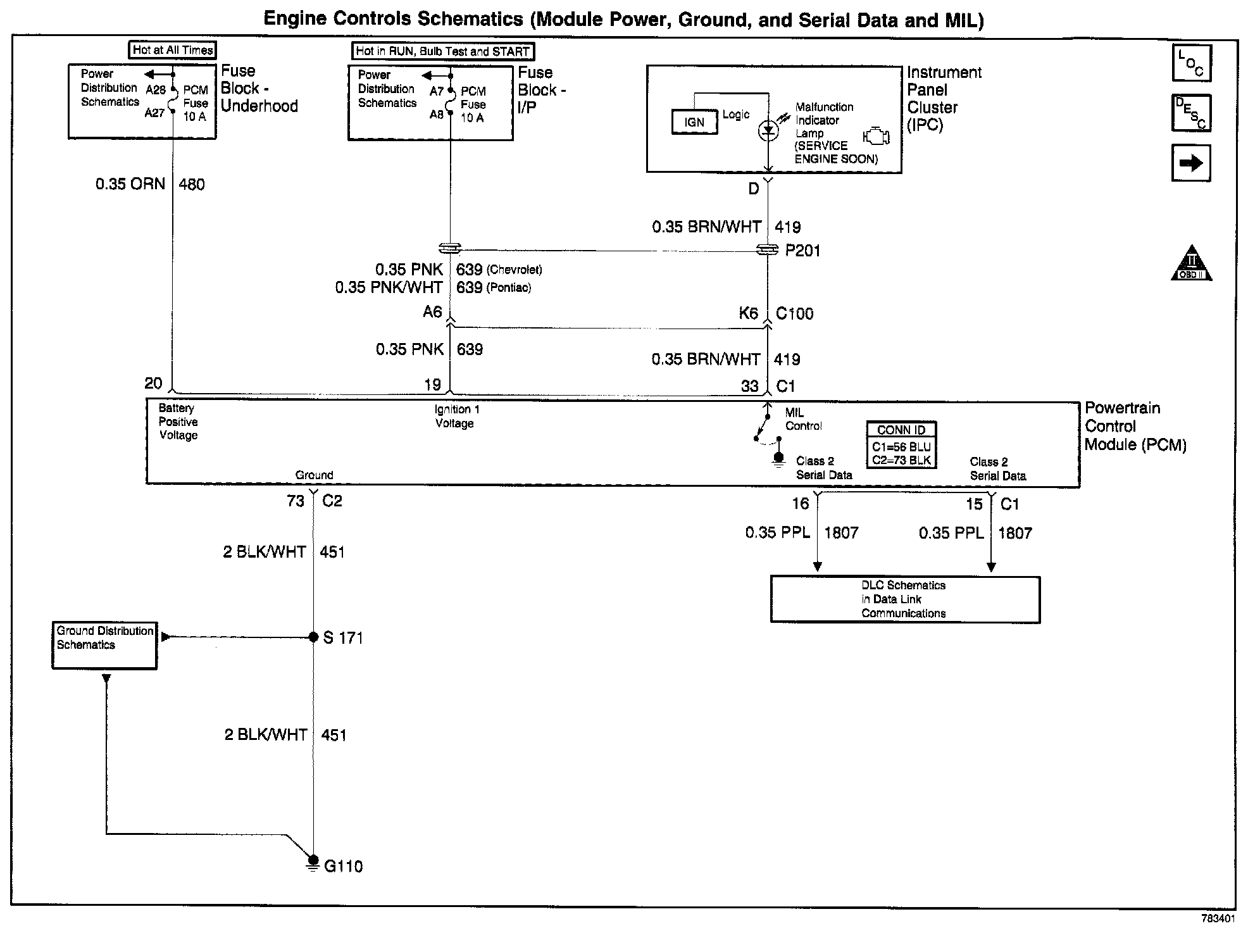

Engine Controls Schematics: Module Power, Ground, Serial Data And MIL:
