Fluid - A/T: Testing and Inspection

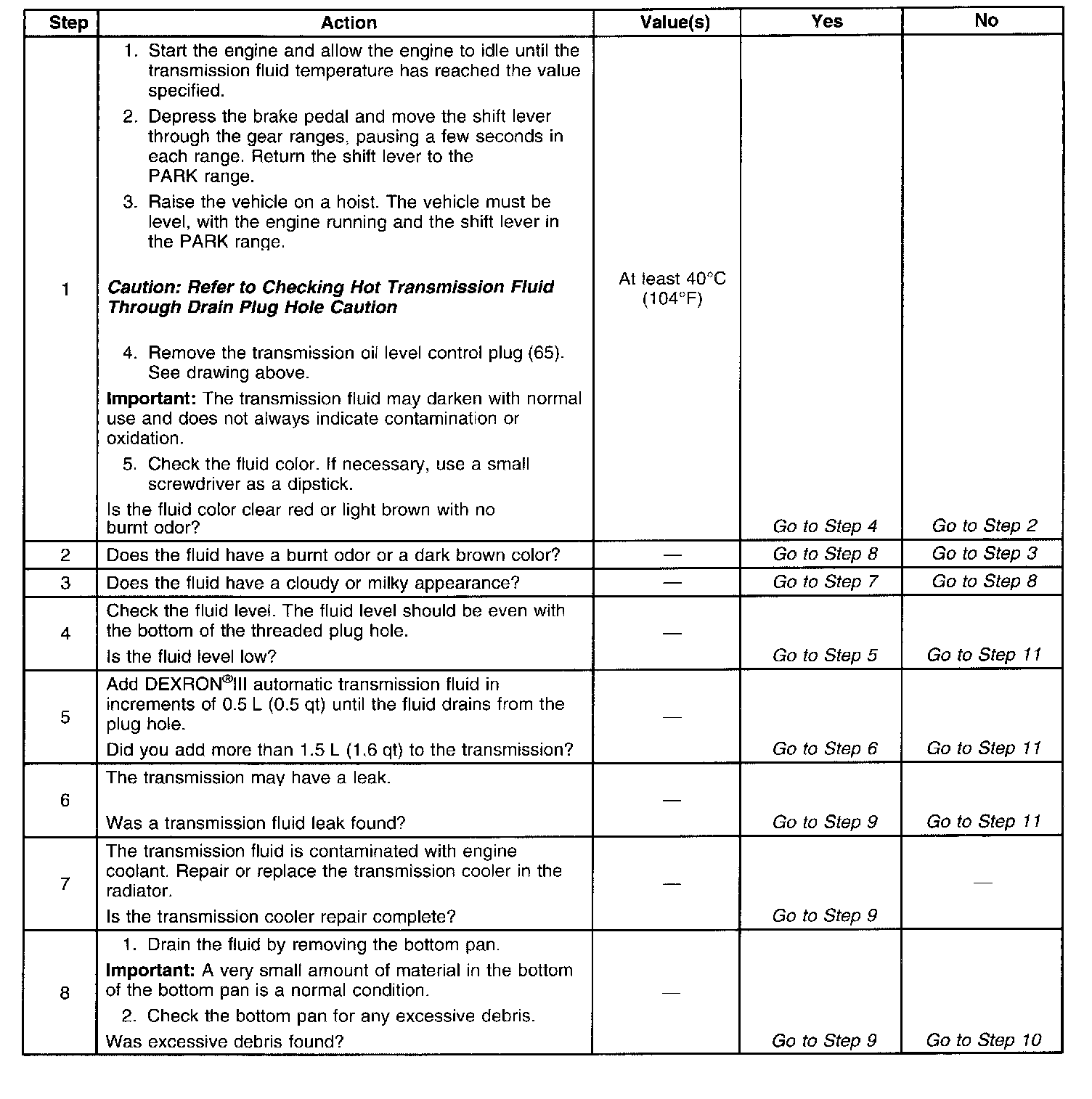

Transmission Fluid Checking Procedure

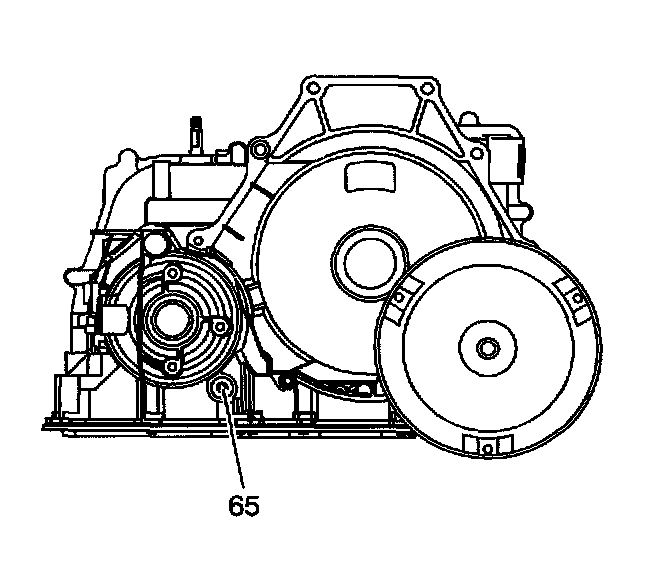

The oil level control plug (65) is located on the torque converter side of the transmission.
