Steering Column - Tilt

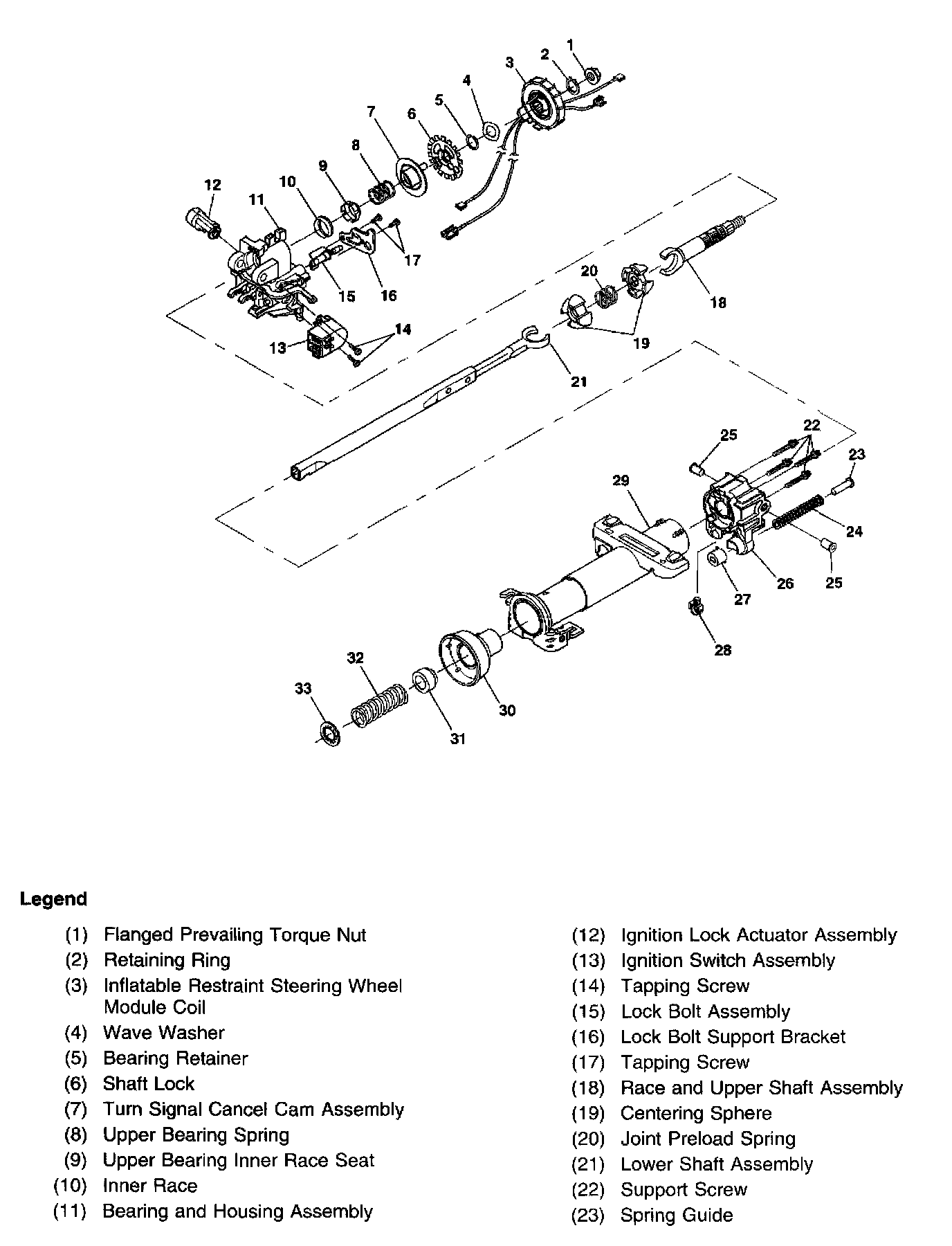

Steering Column Disassembled View (Tilt Column)





Part 1 of 2





Part 2 of 2
