Steering Column - Standard

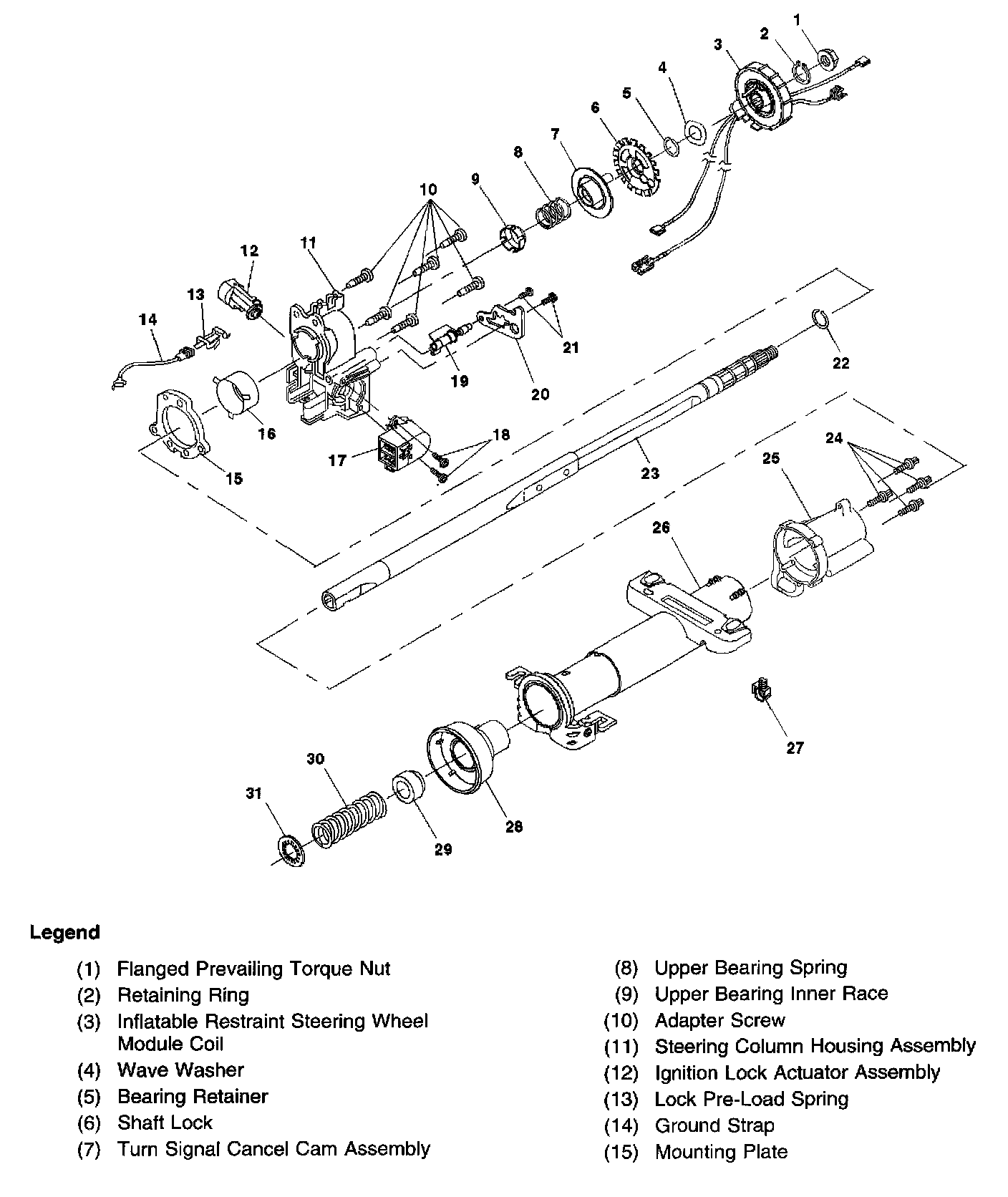

Steering Column Disassembled View (Standard Column)





Part 1 of 2





Part 2 of 2
