Transmission Speed Sensor, A/T

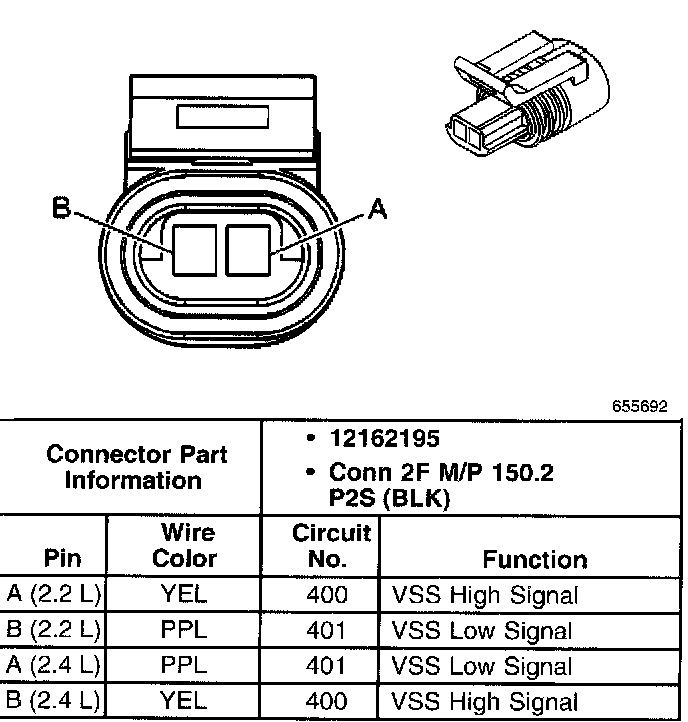

Automatic Transmission Output Shaft Speed Sensor Connector, Wiring Harness Side
