Shift Interlock, A/T

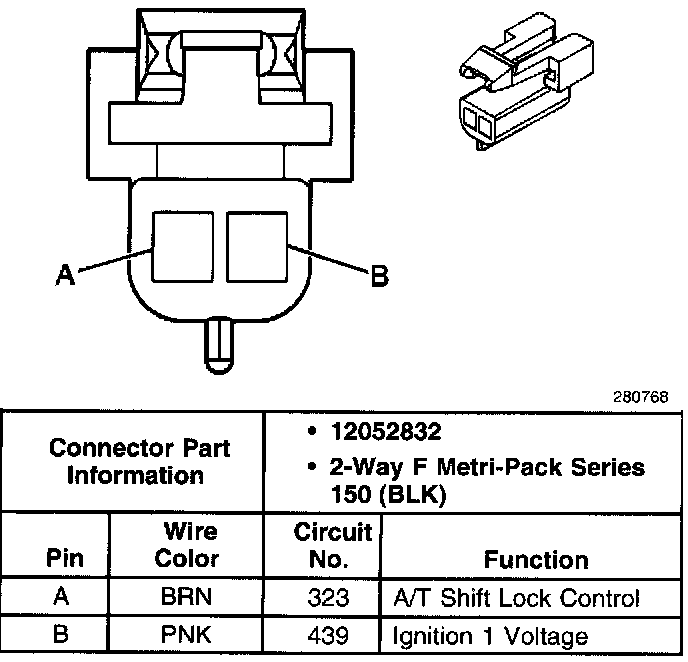

Automatic Transmission Shift Lock Control Connector End Views





A/T Shift Lock Solenoid
