Home >> Chevrolet >> 2002 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump and Oil Pan Components

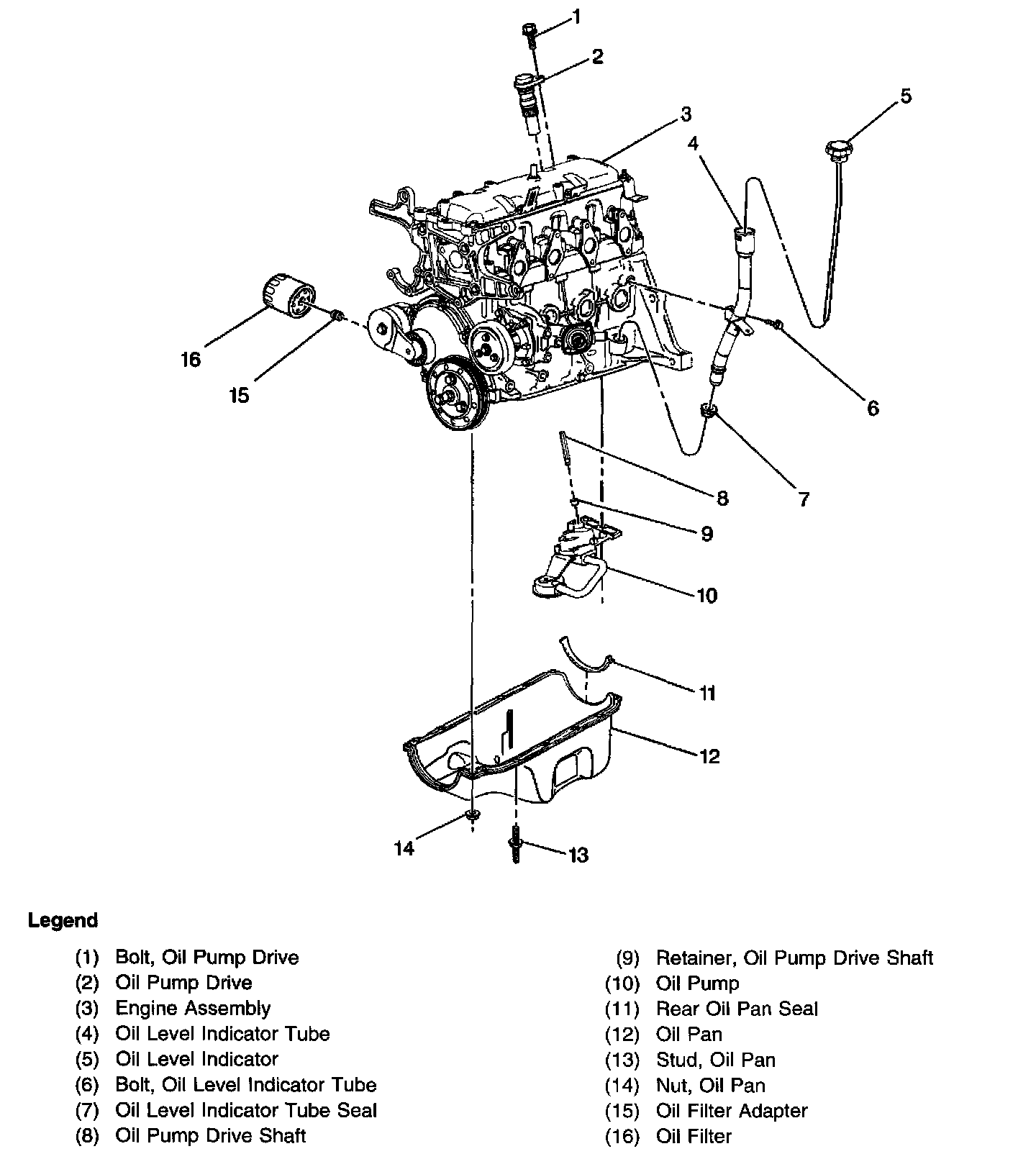

Oil Pump and Oil Pan Components
