Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block I/P Application Table
Fuse Block I/P Application Table

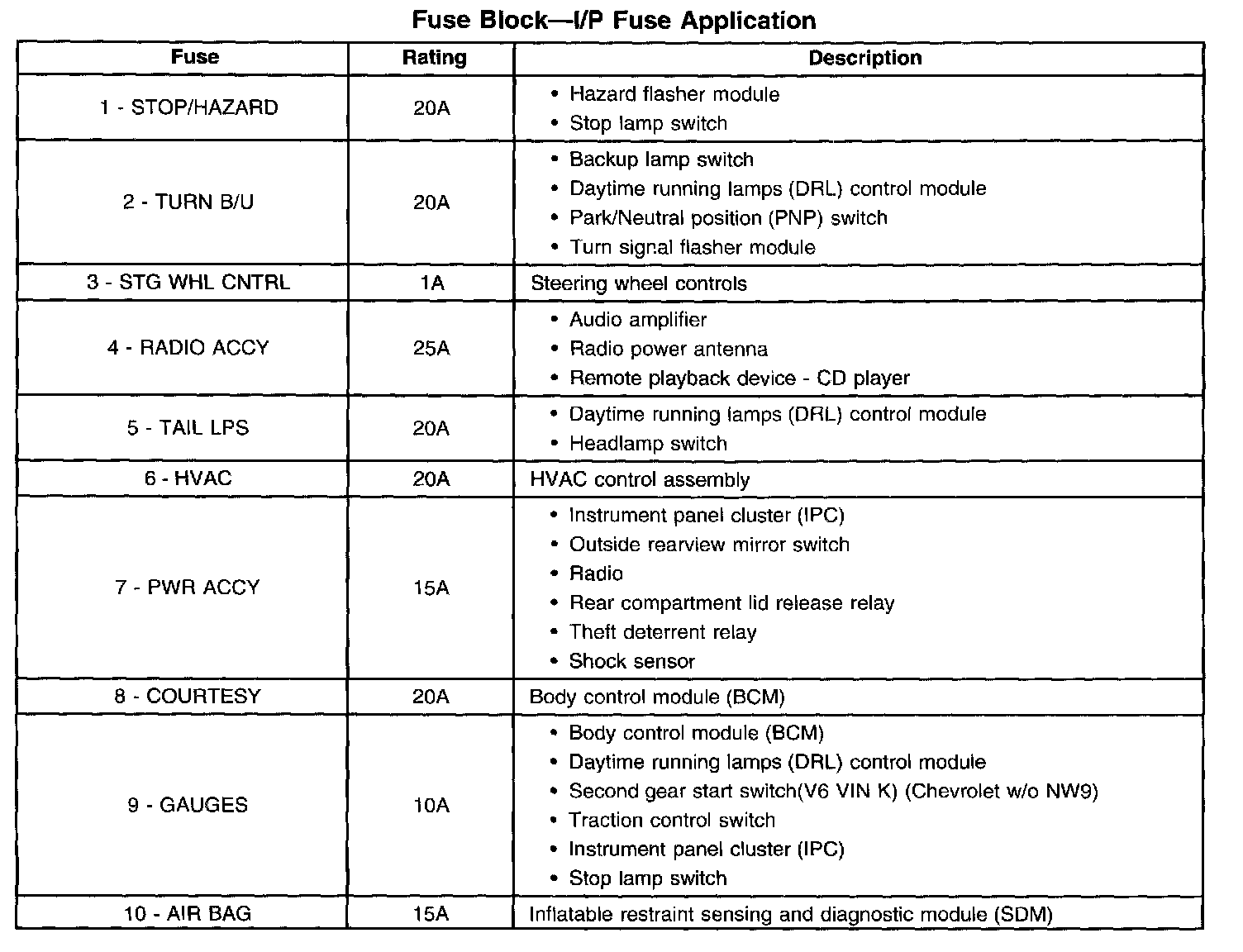

Fuse Block - I/P Fuse Application Part 1:

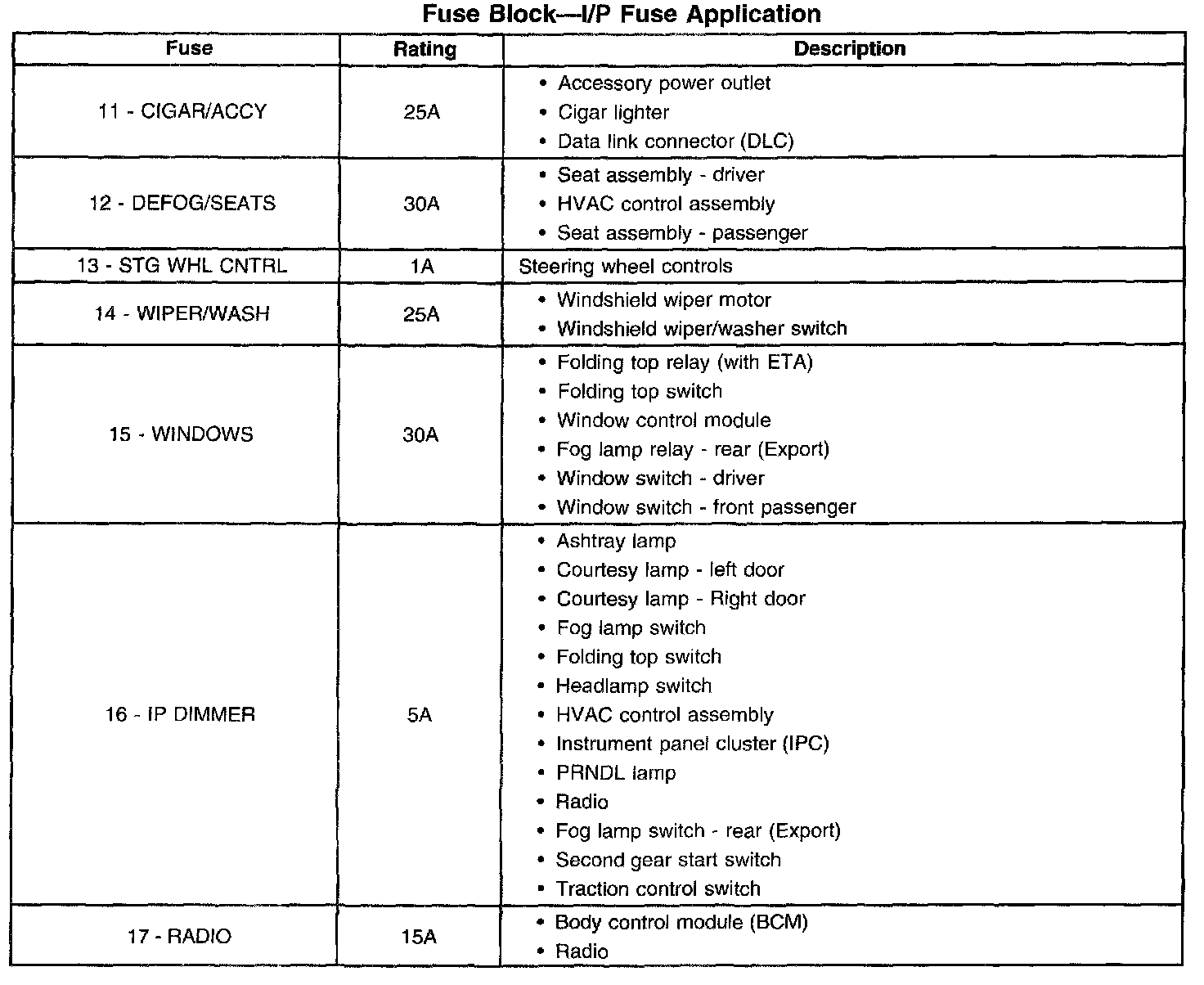

Fuse Block - I/P Fuse Application Part 2:
