Ignition Control Module Connector End View

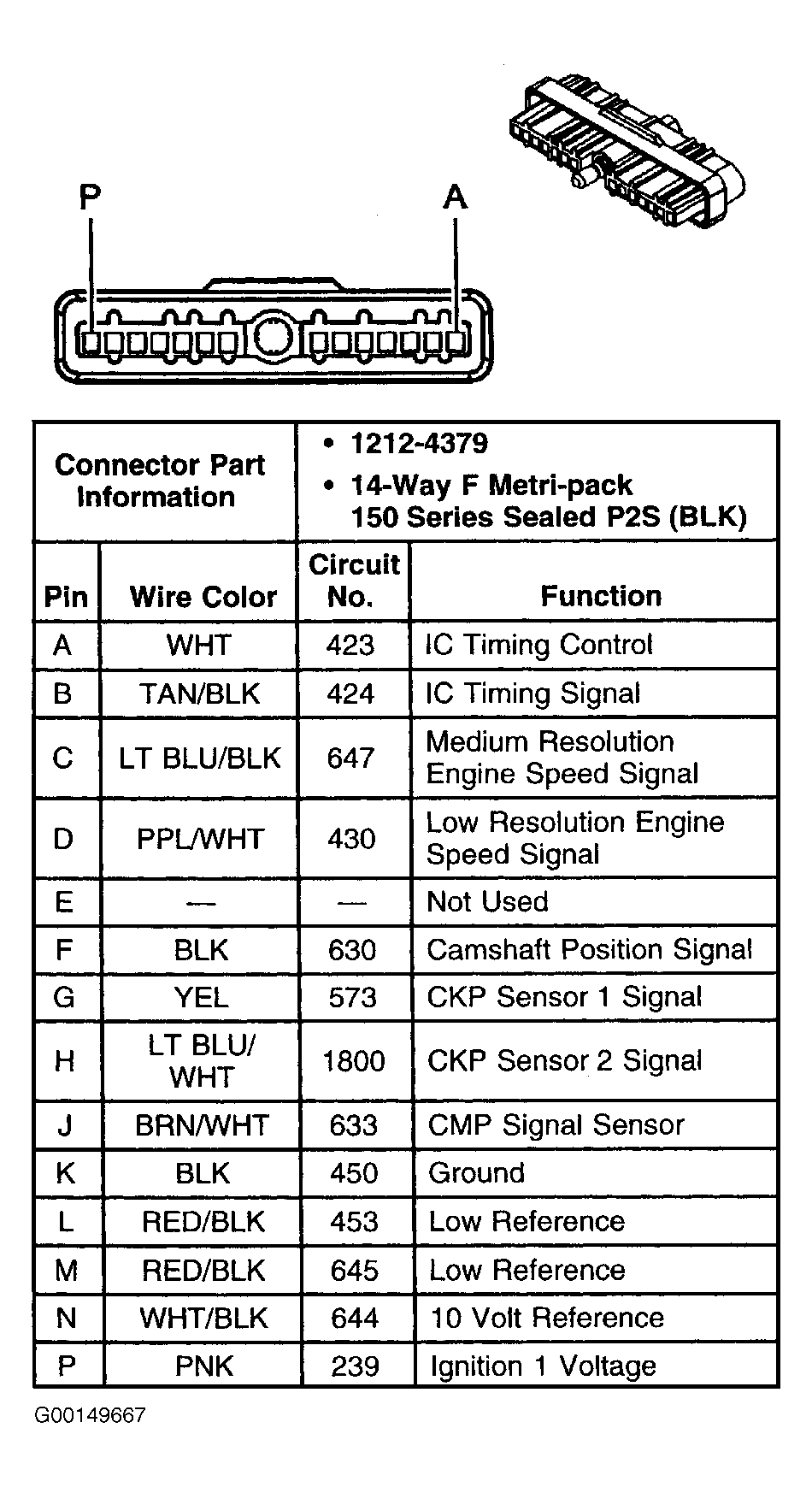

Fig 1: Ignition Control Module Connector End View

G00149667

Courtesy of GENERAL MOTORS CORP.
