Electrical Symbols

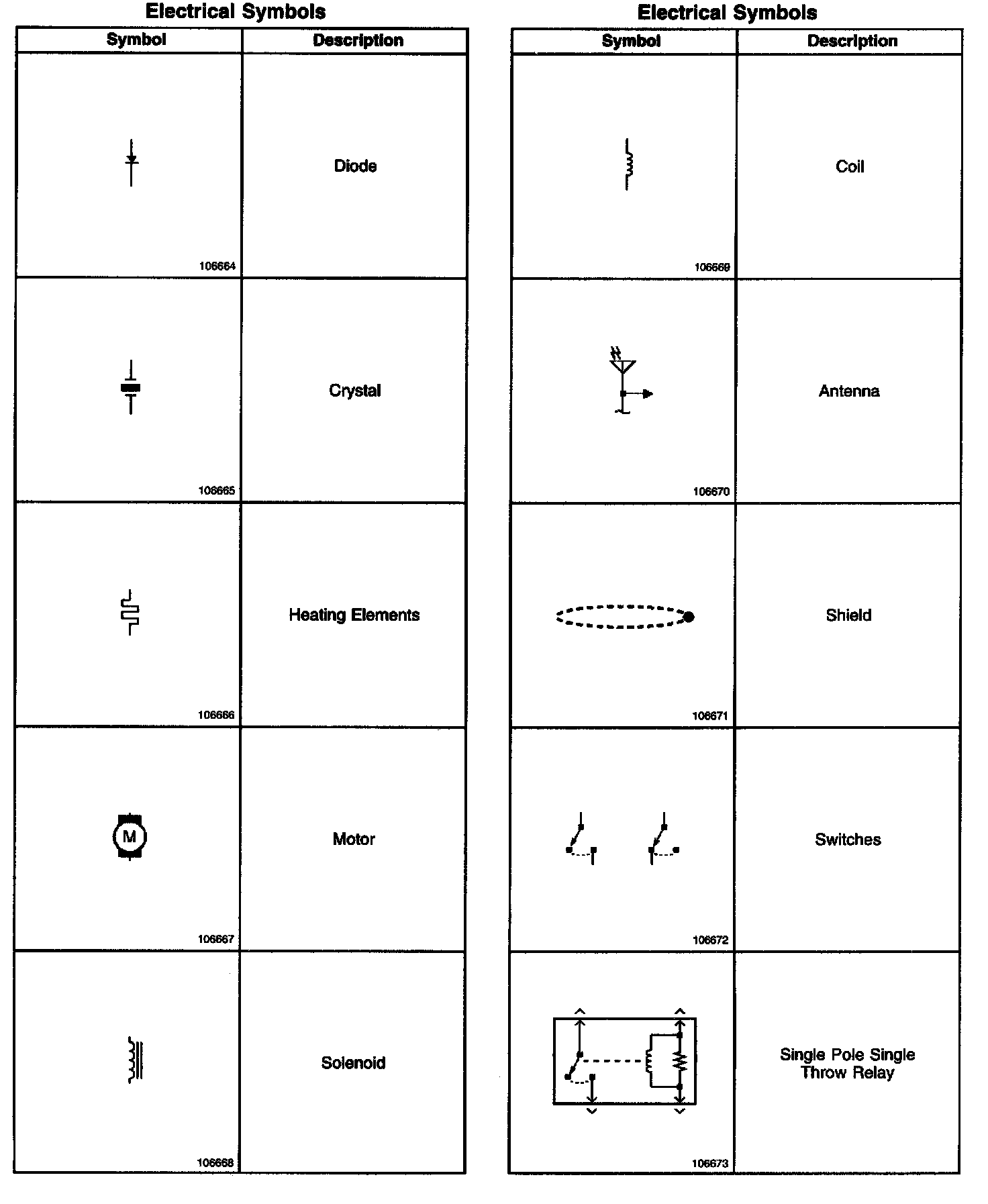

Electrical Symbols Part 1:

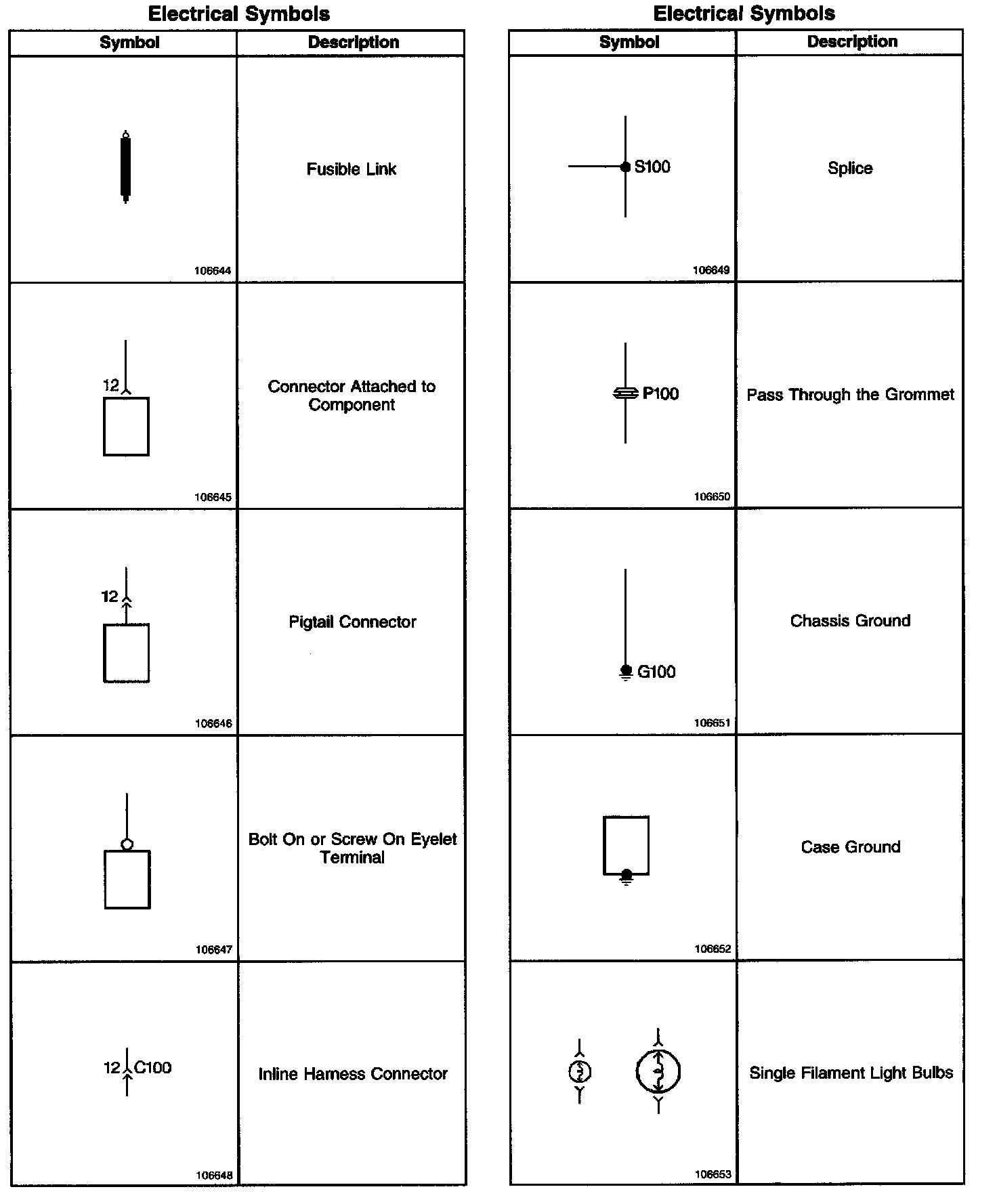

Electrical Symbols Part 2:

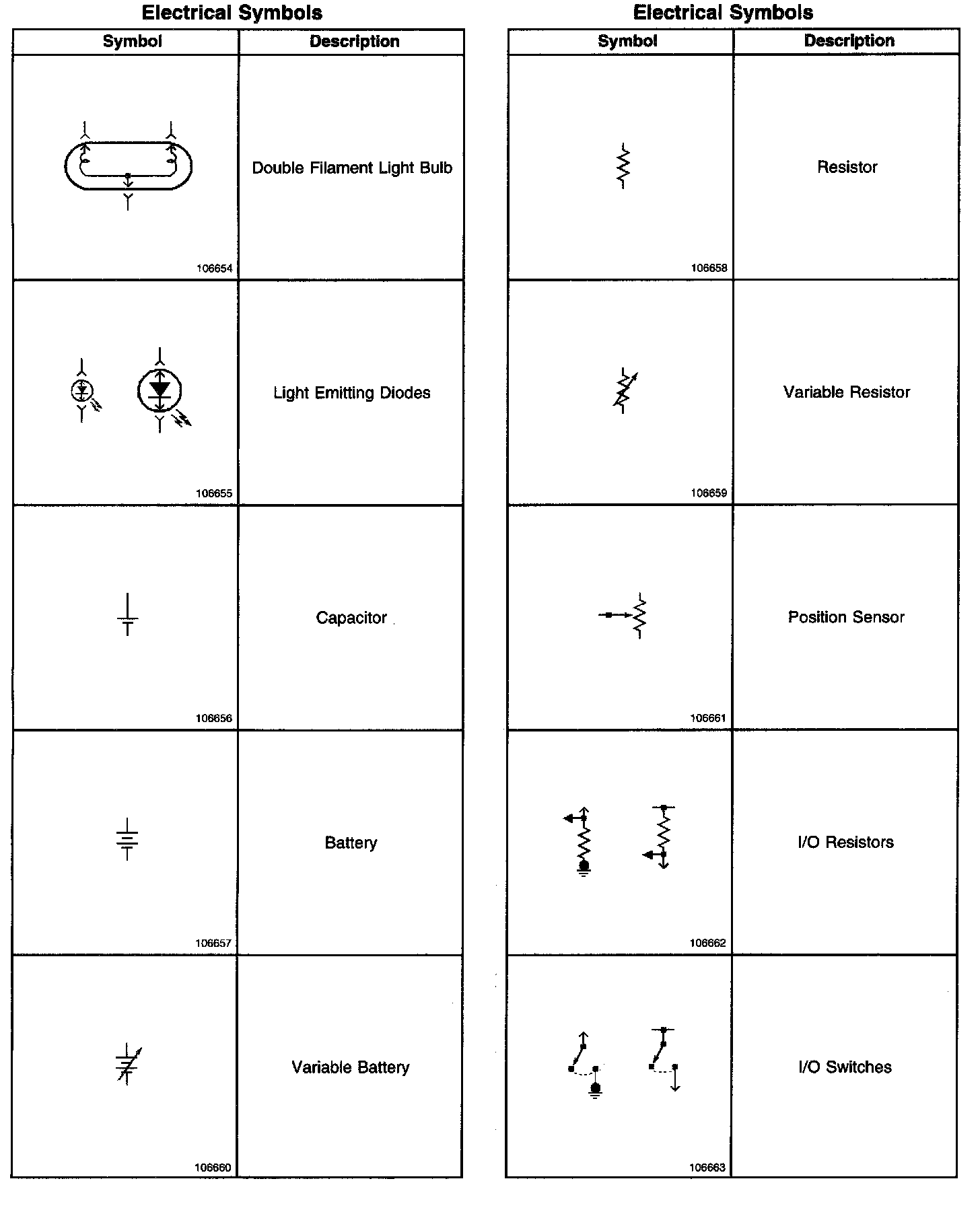

Electrical Symbols Part 3:

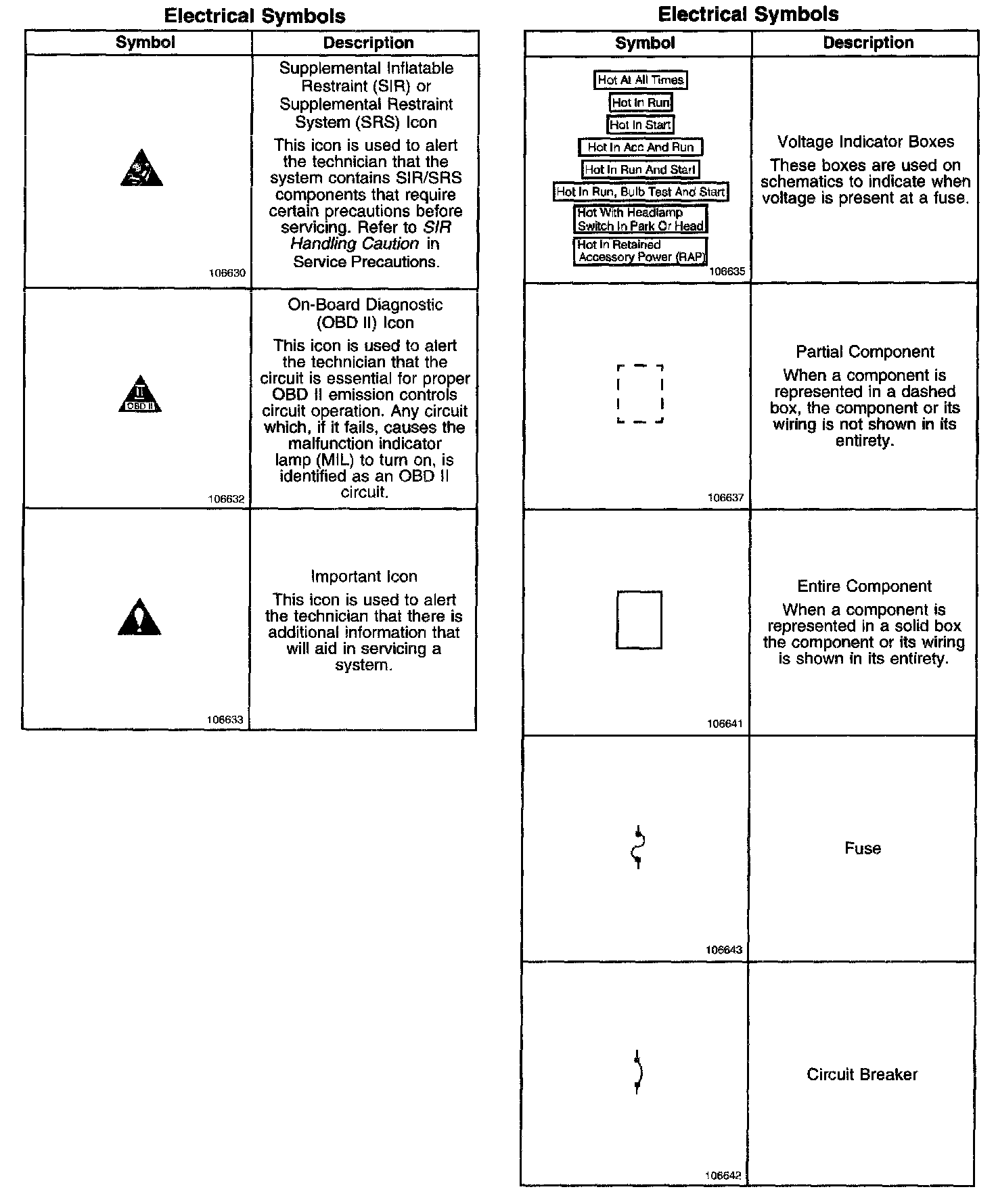

Electrical Symbols Part 4:




Electrical Symbols Part 5:
