Home >> Chevrolet >> 2002 >> Astro Van 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

Disassembled Views (M/L Van and G Van)

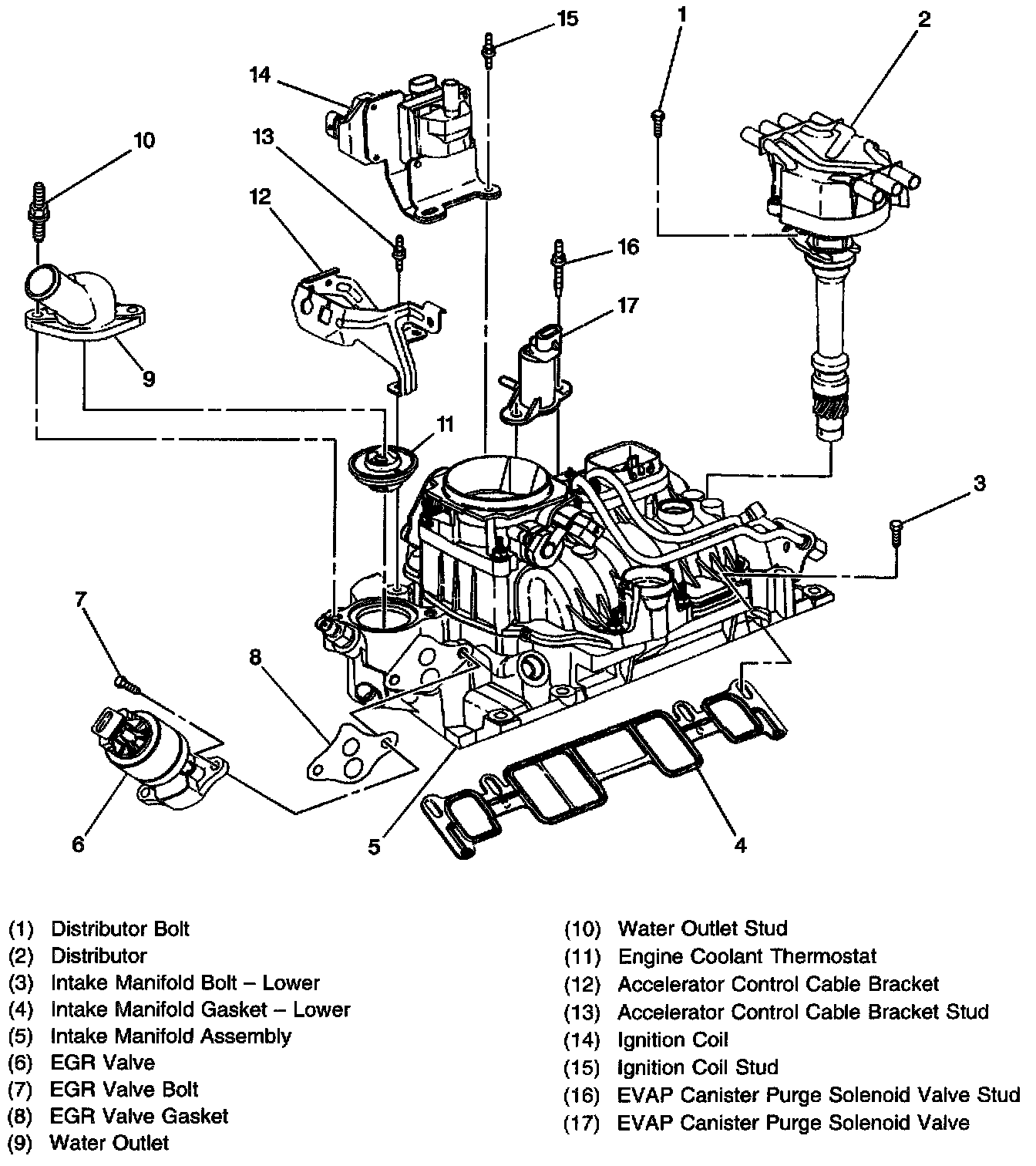

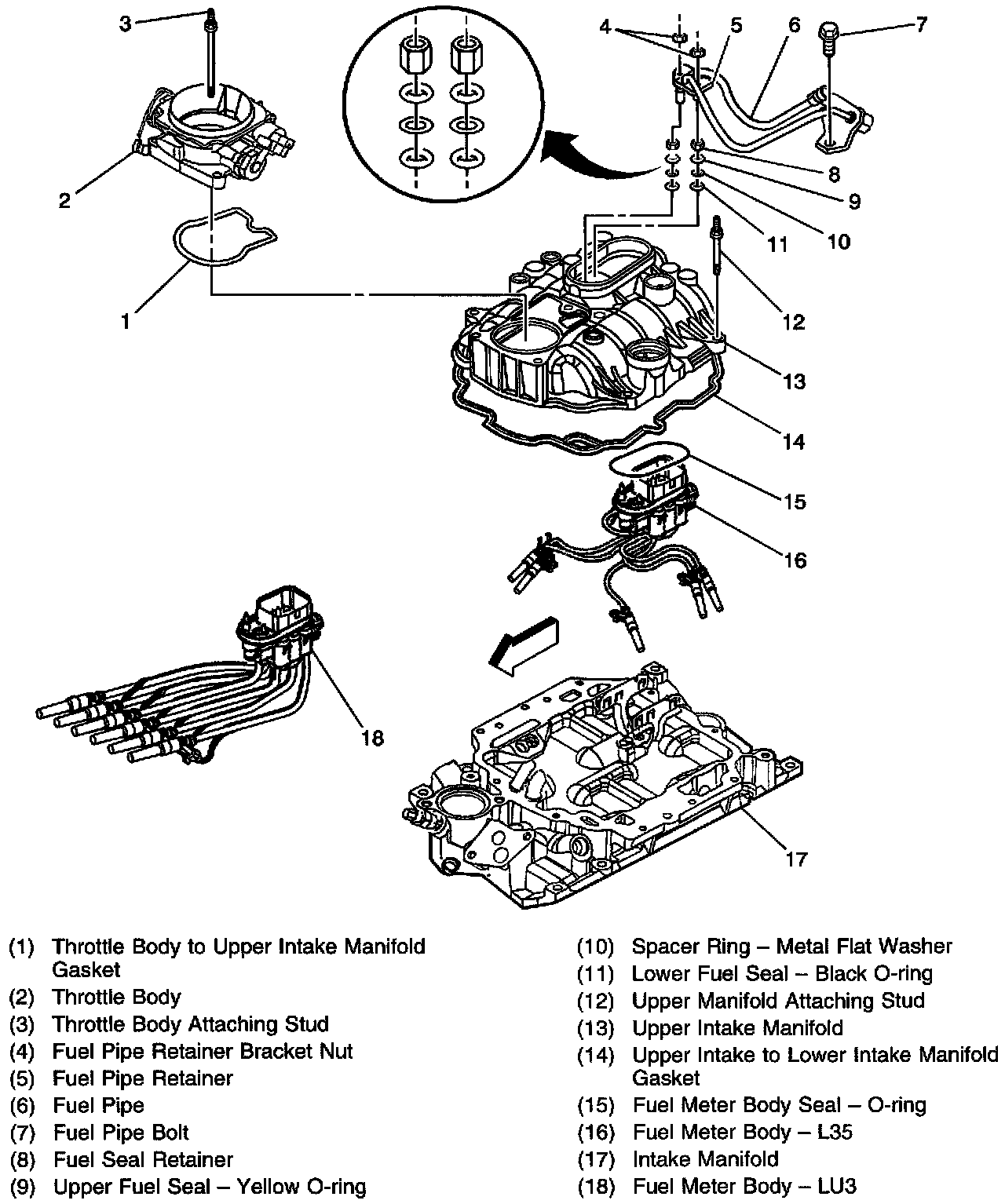

Upper and Lower Intake Manifold View

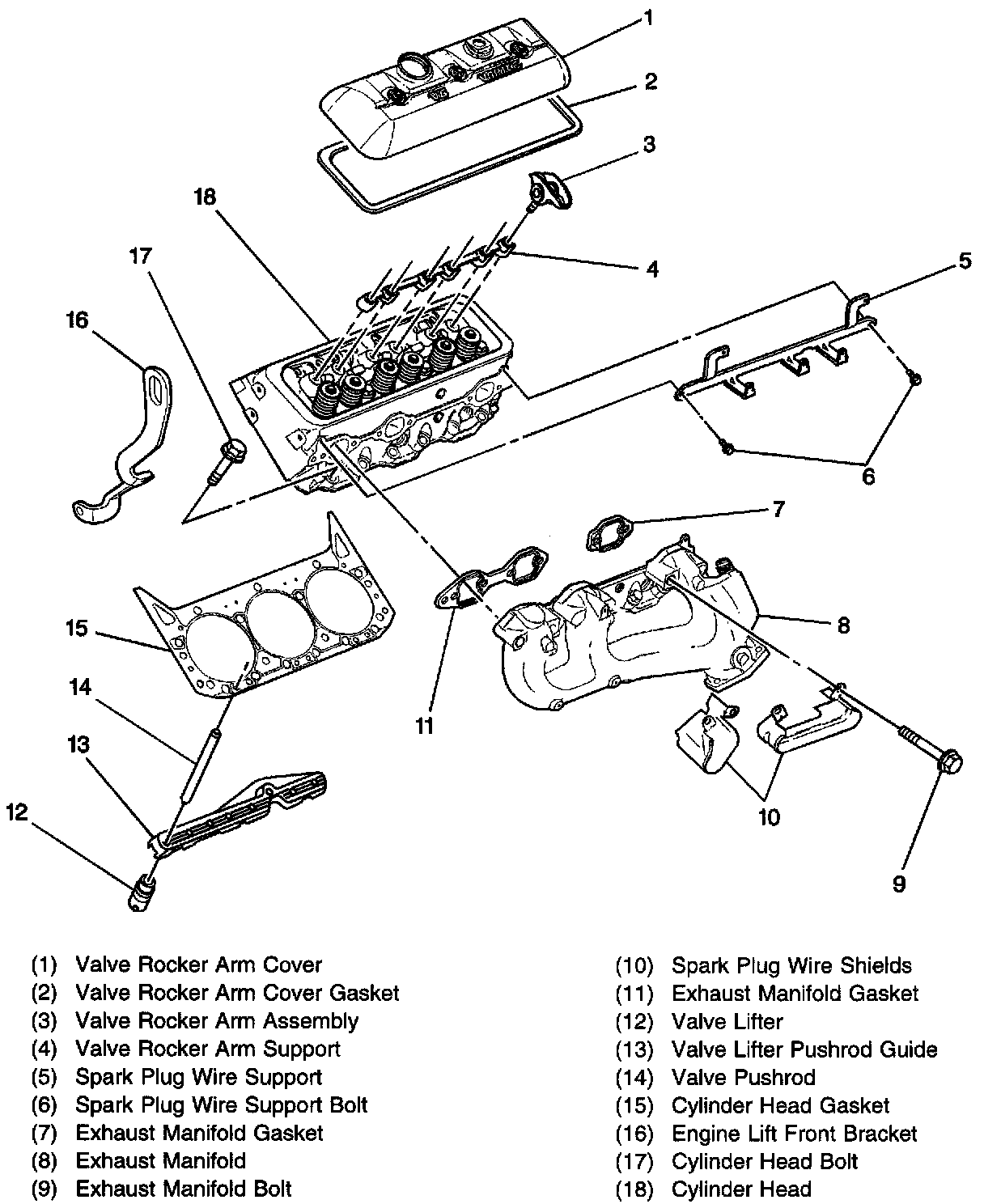

Upper Engine View 1





Upper Engine View 2

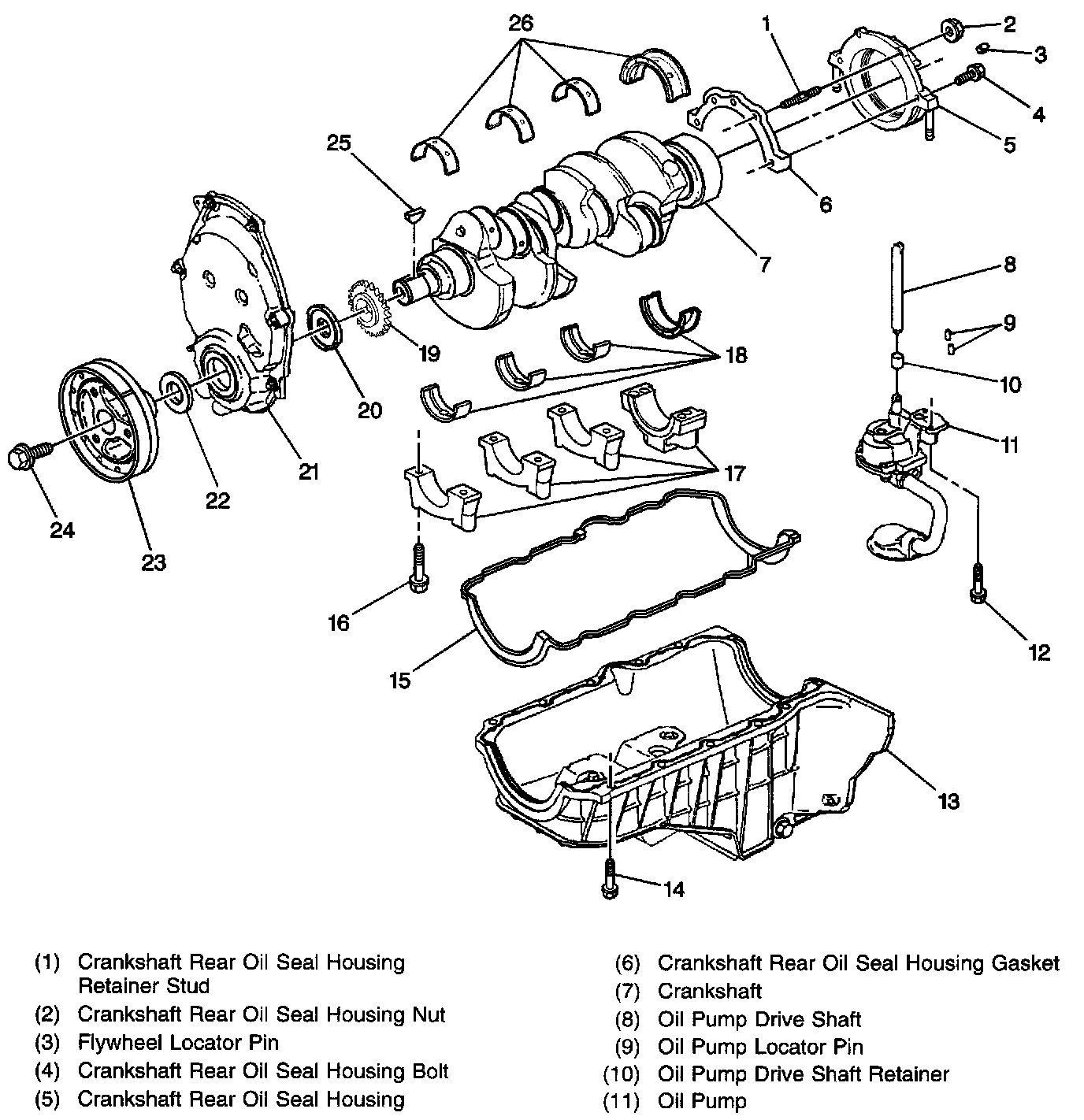

Lower Engine View 1

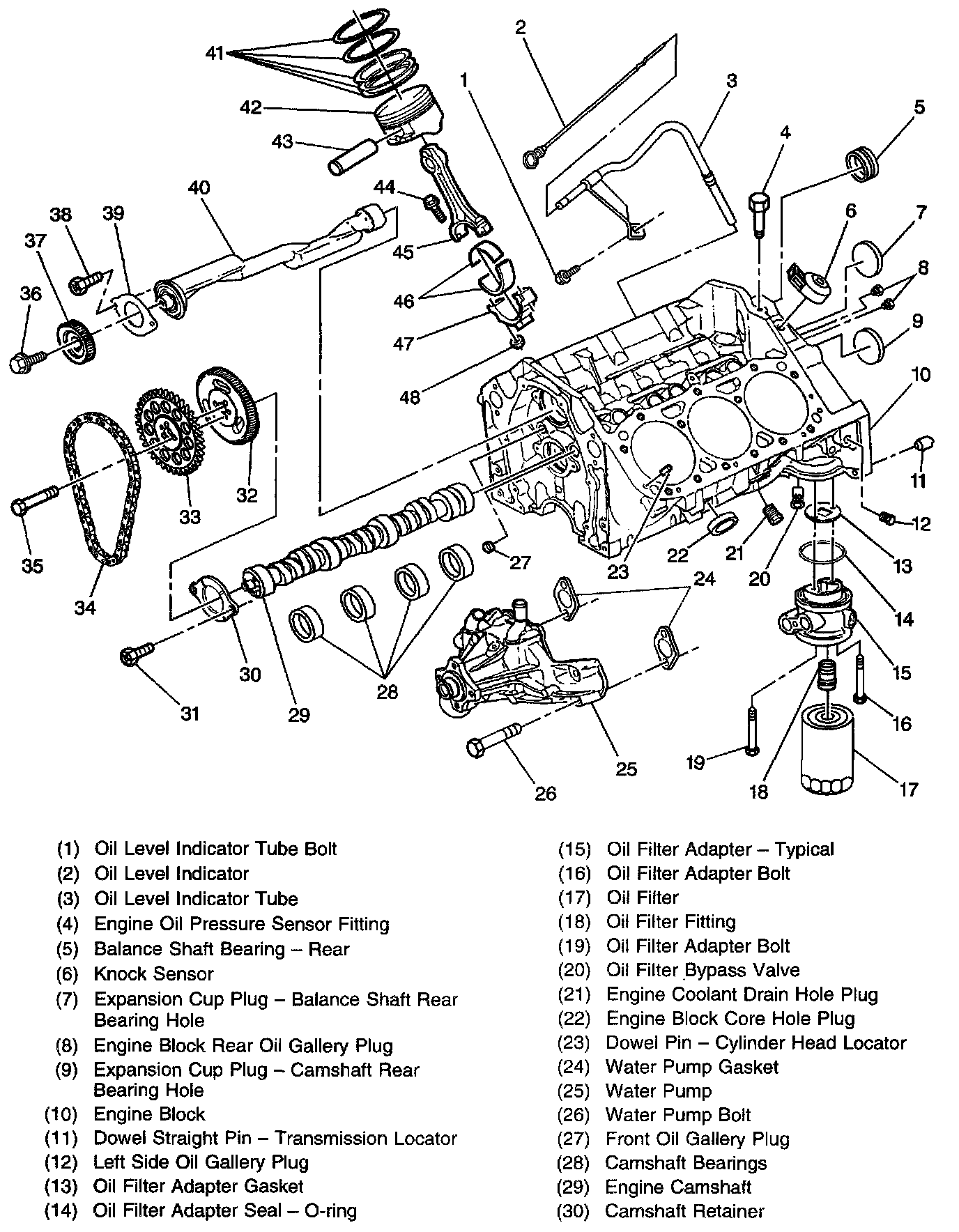

Lower Engine View 2
