Home >> Chevrolet >> 2001 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Pass Key III Module

Pass Key III Module

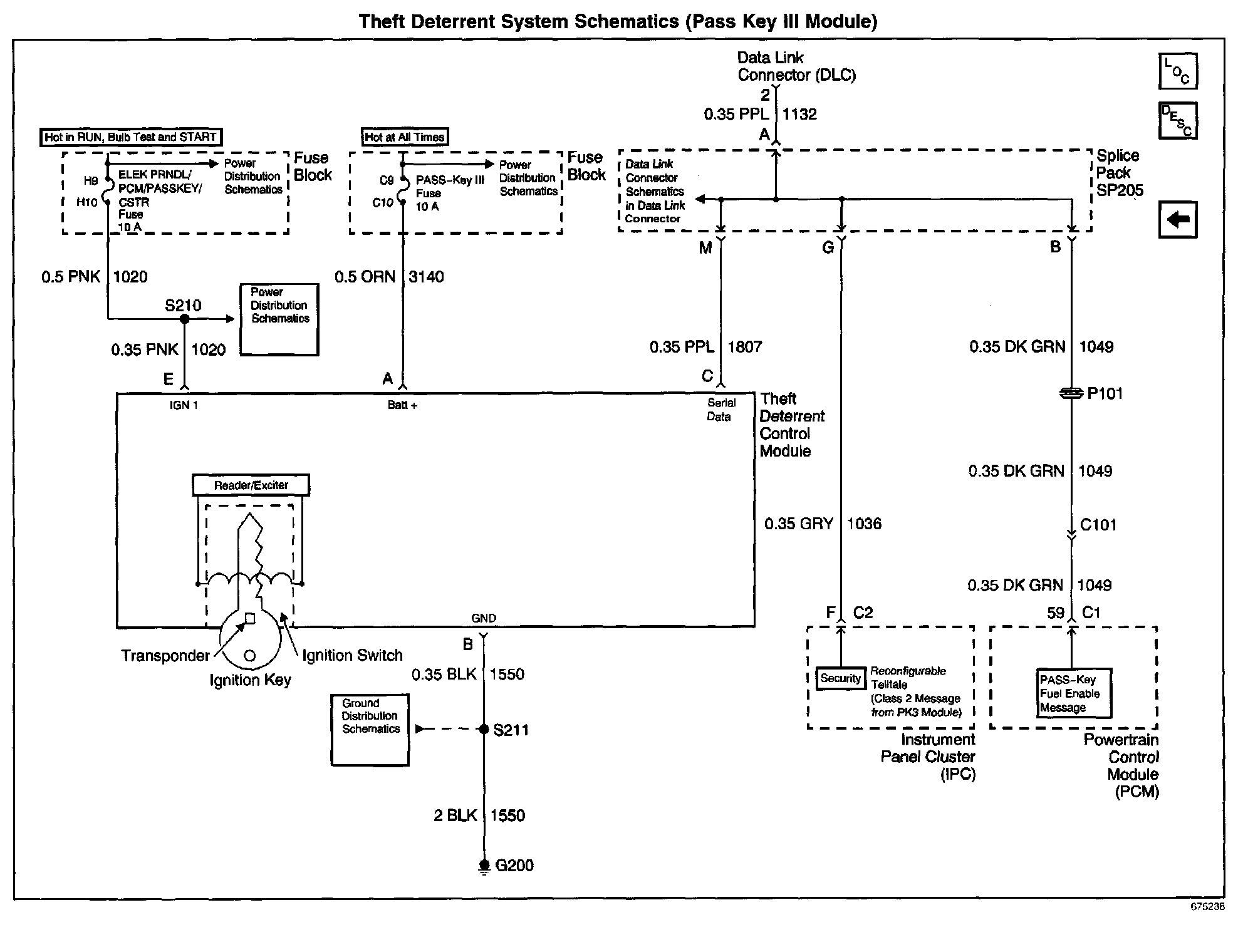

Theft Deterrent System Schematics: Pass Key III Module:
