Home >> Chevrolet >> 2001 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Traction Control Module

Traction Control Module

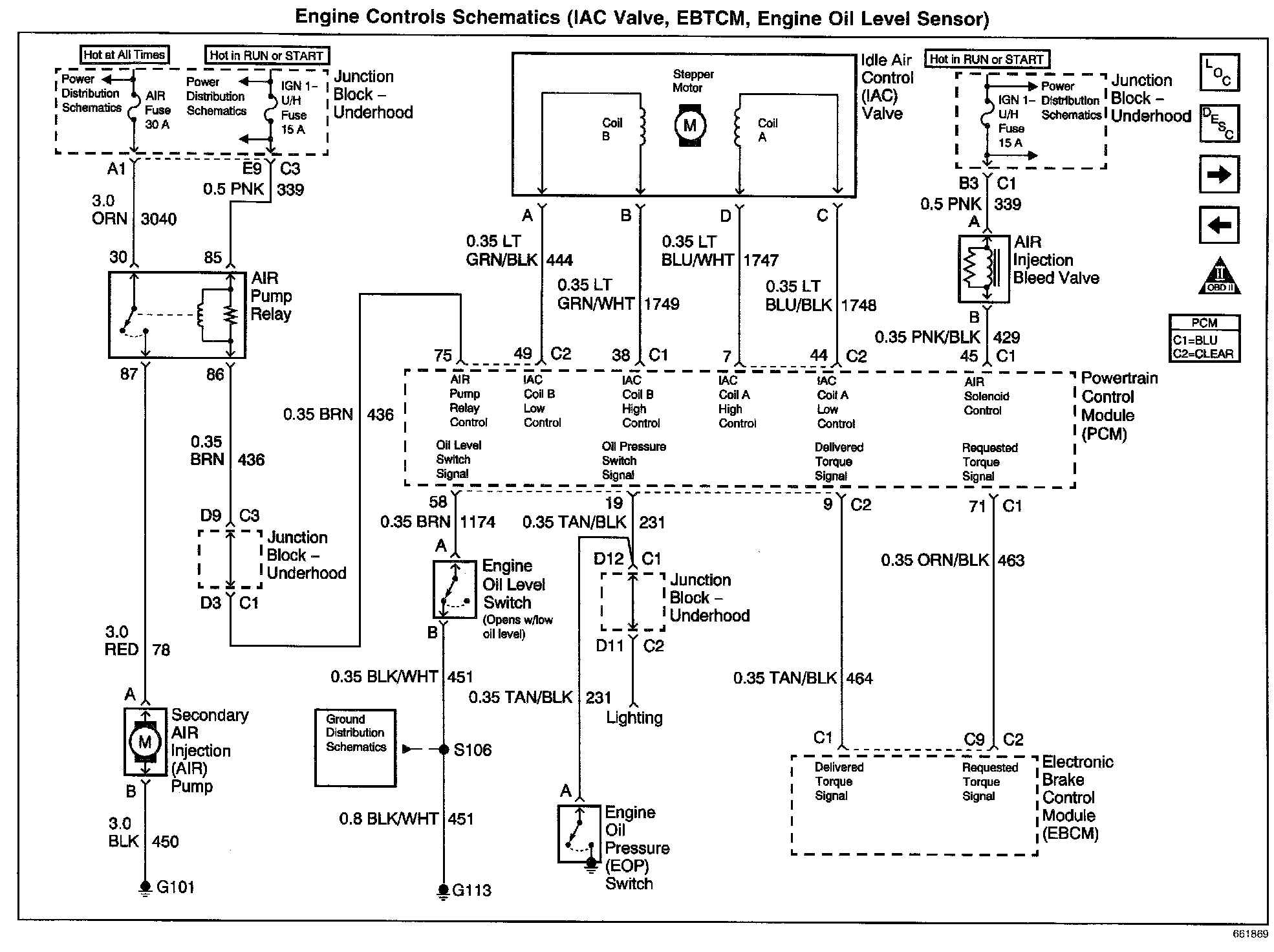

Engine Controls Schematics: IAC Valve, EBTCM, Engine Oil Level Sensor:
