Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

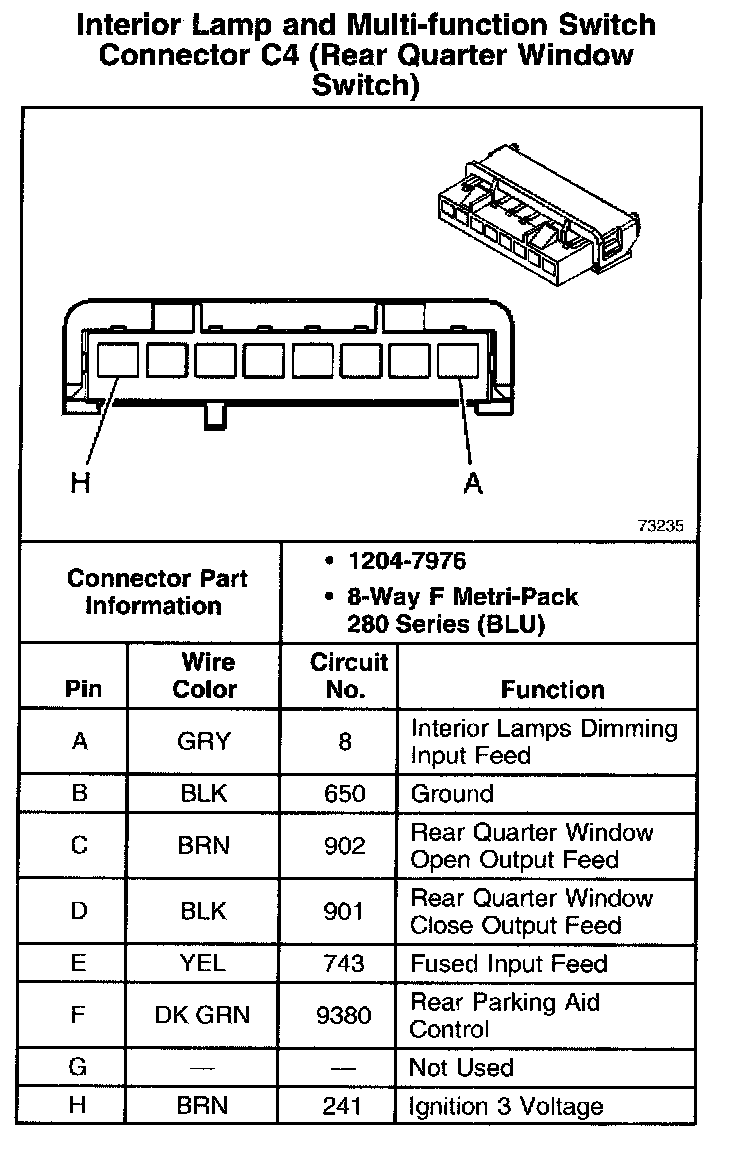

Interior Lamp and Multi-function Switch Connector C4 (Rear Quarter Window Switch):

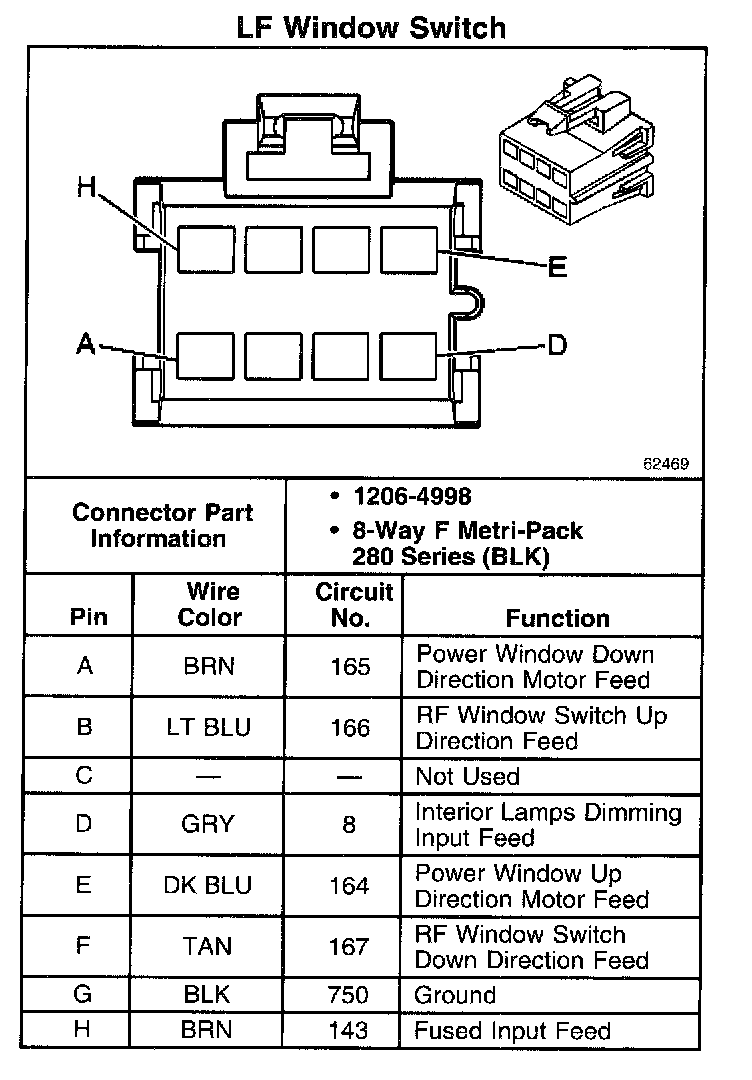

LF Window Switch:

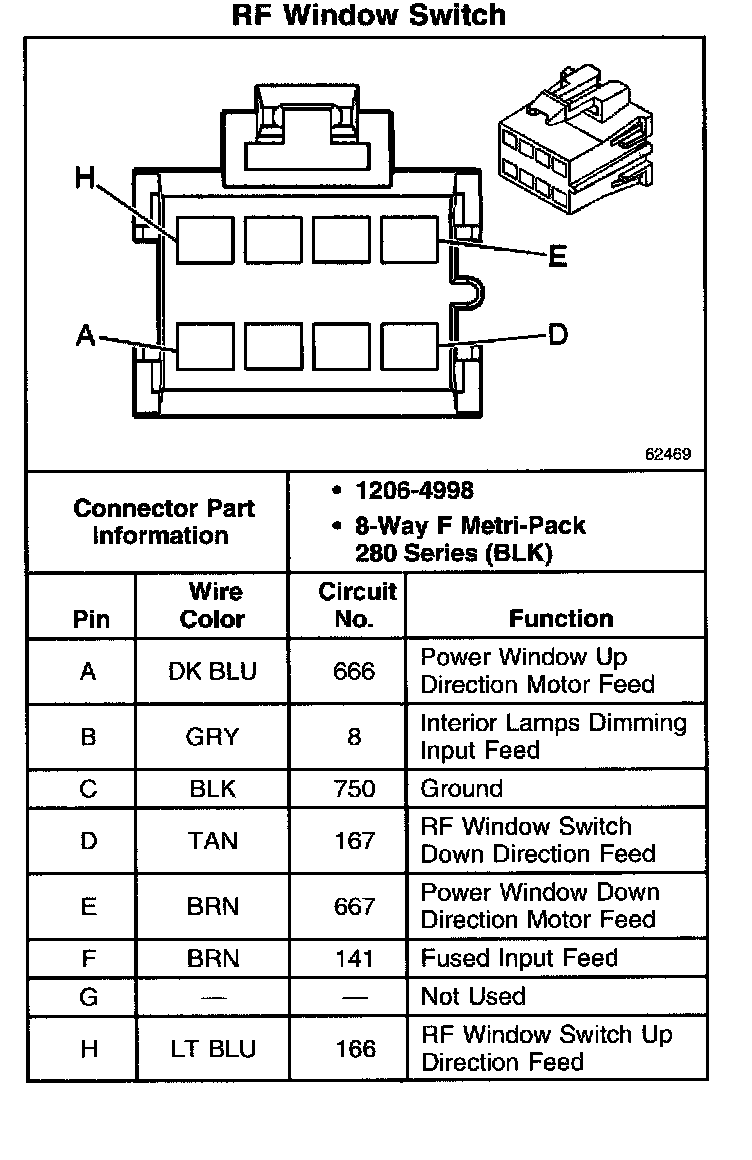

RF Window Switch:
