Home >> Chevrolet >> 2001 >> Tracker 4WD V6-2.5L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> ECT Sensor, MAP Sensor, TP Sensor, IAT Sensor

ECT Sensor, MAP Sensor, TP Sensor, IAT Sensor

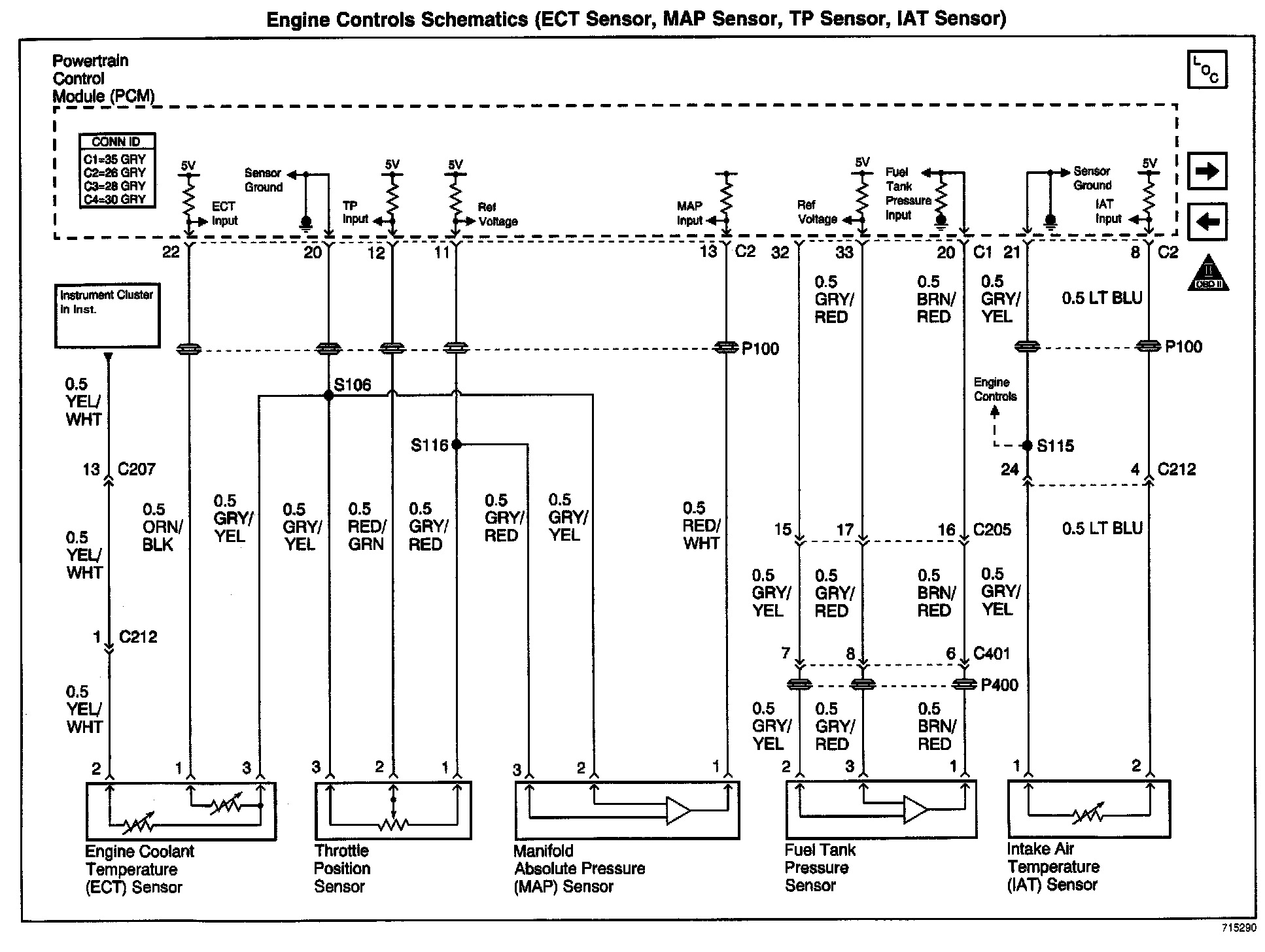

Engine Controls Schematics: ECT Sensor, MAP Sensor, TP Sensor, IAT Sensor:
