ECT Sensor, MAP Sensor, TP Sensor, IAT Sensor
ECT Sensor, MAP Sensor, TP Sensor, IAT Sensor

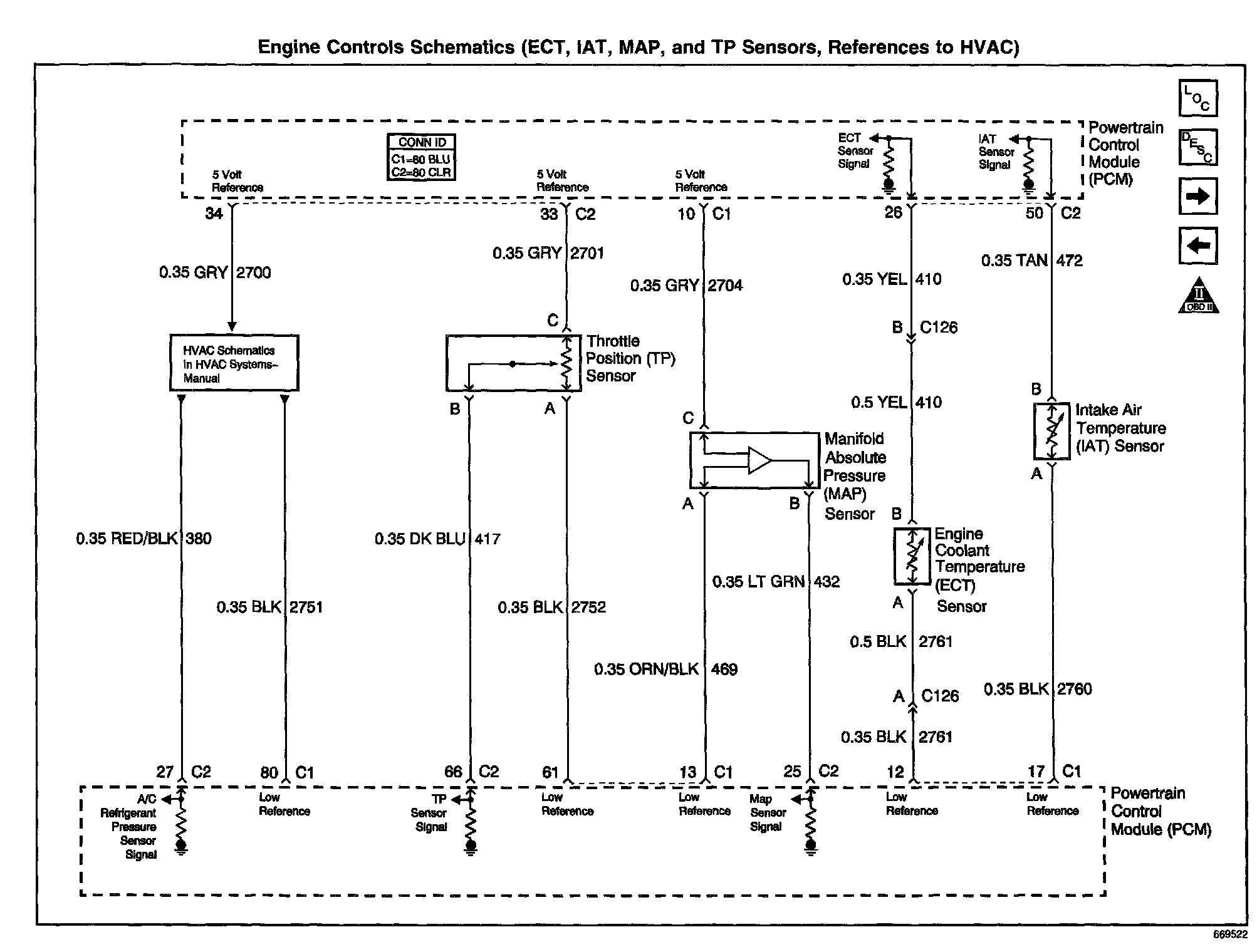

Engine Controls Schematics: ECT, IAT, MAP, And TP Sensors, Reference To HVAC:
