Chevrolet
>>
2001
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Junction Block-Left I/P
Junction Block-Left I/P

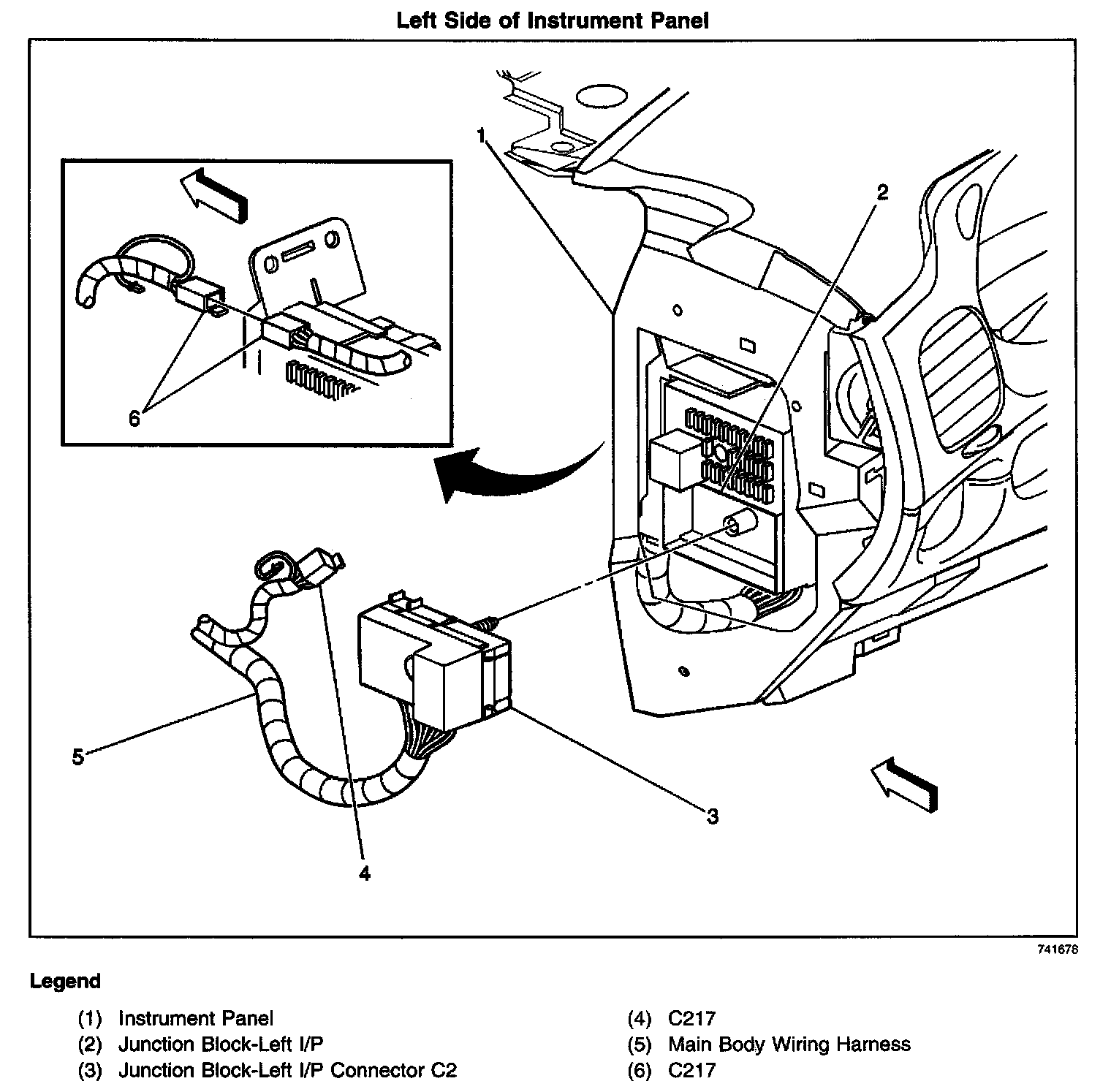

Locations View:
Locations View:

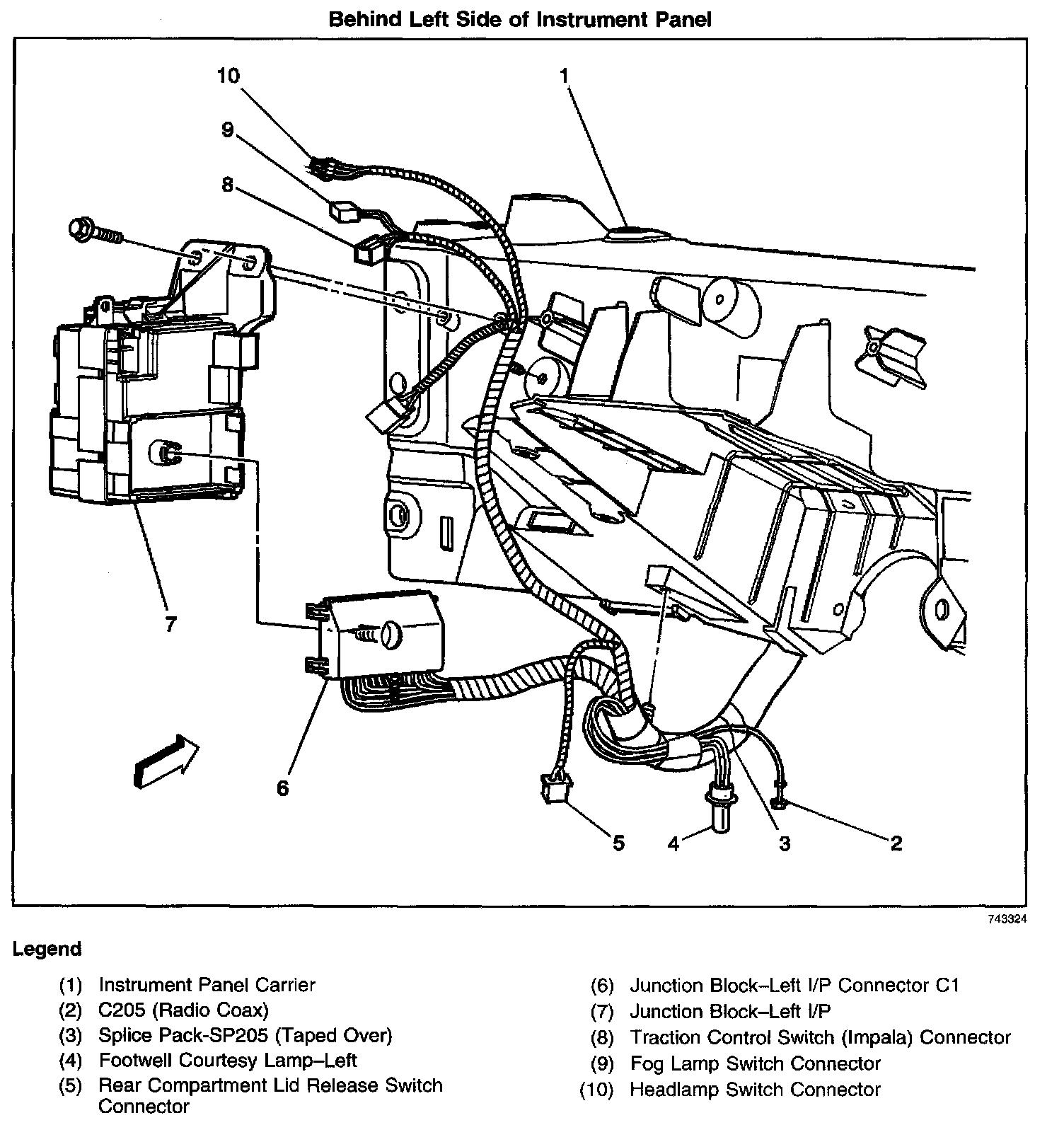

Left side of the I/P, behind an access panel
