Thread Repair Specifications

Thread Repair Specifications

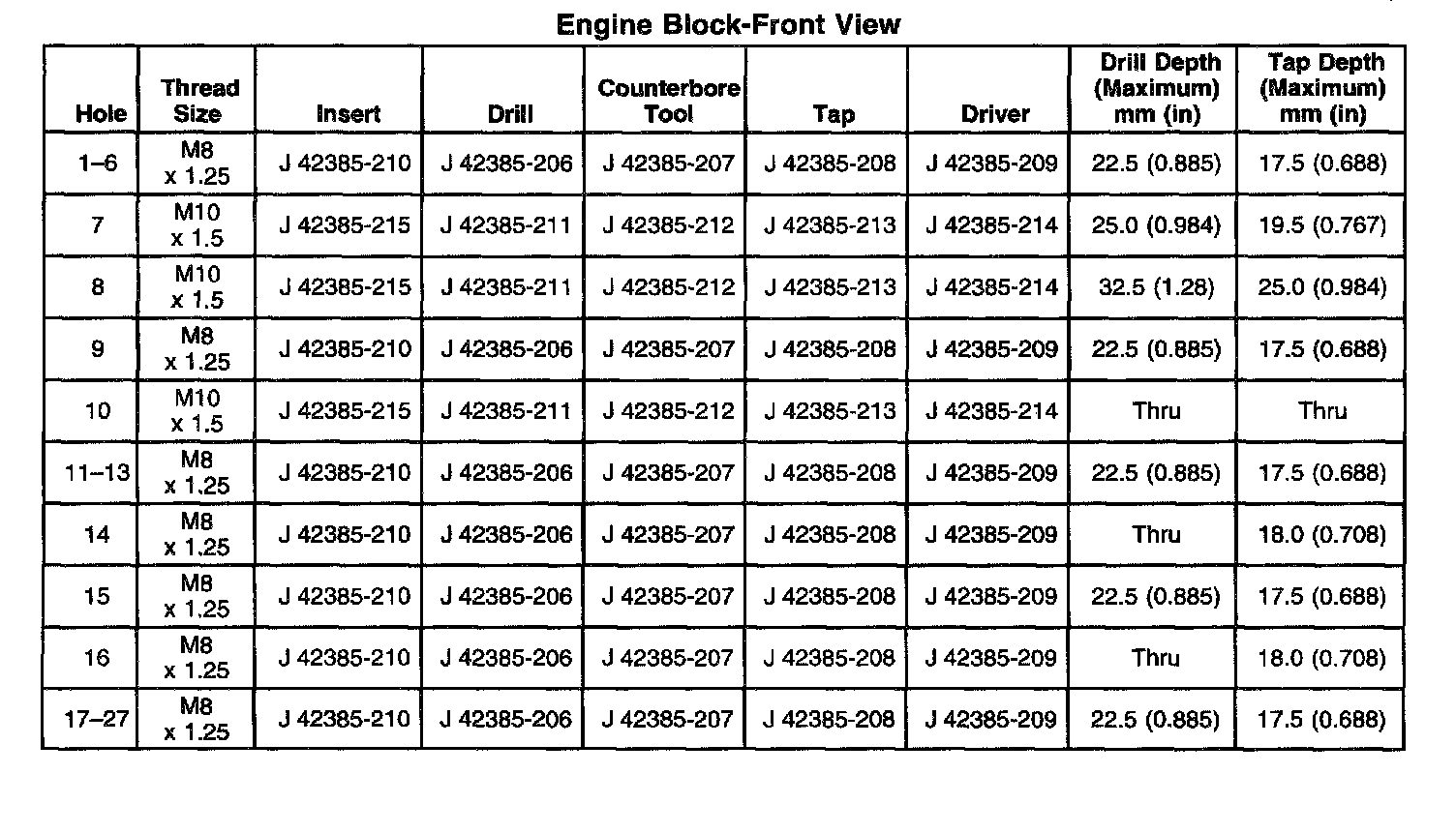

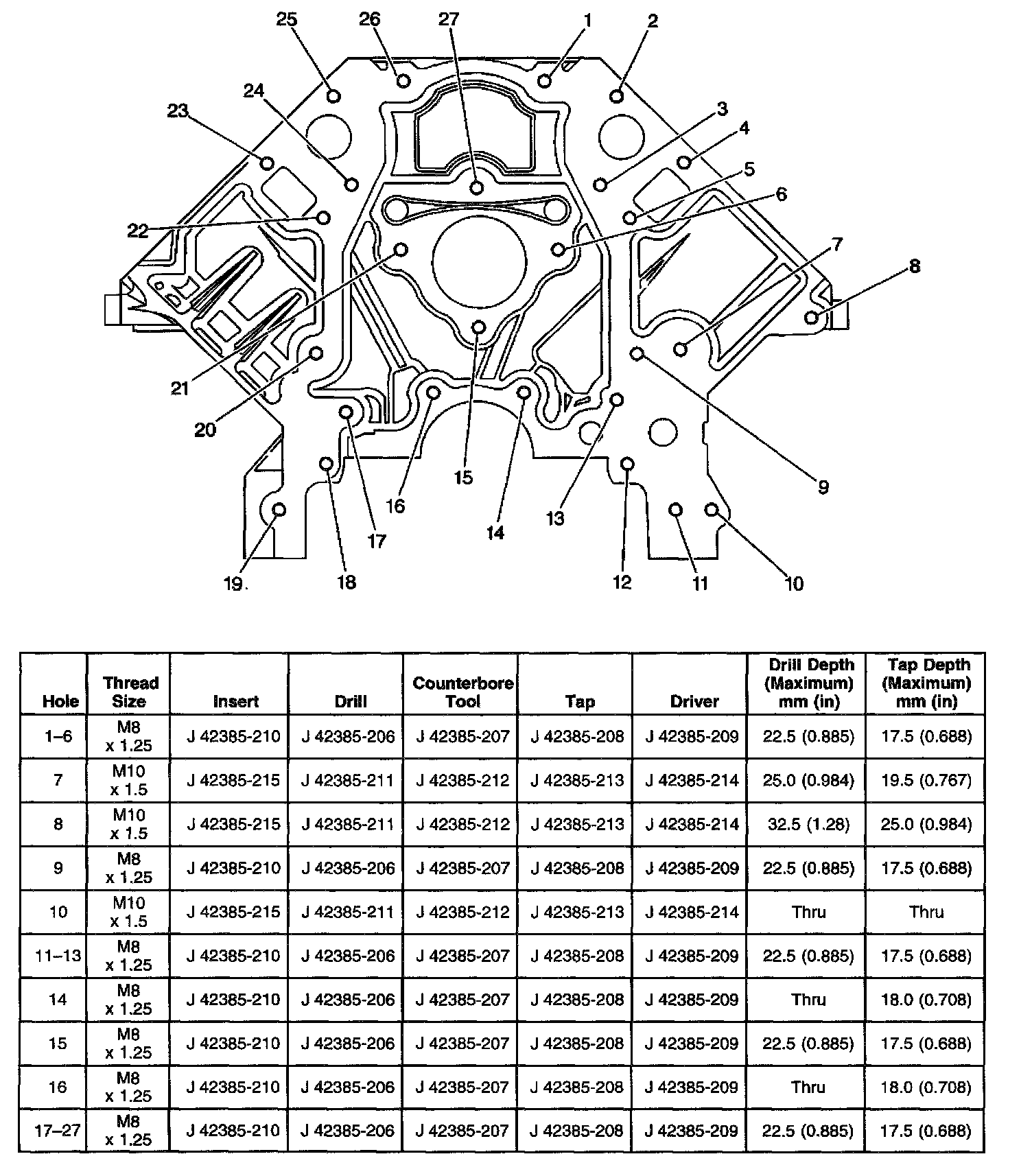

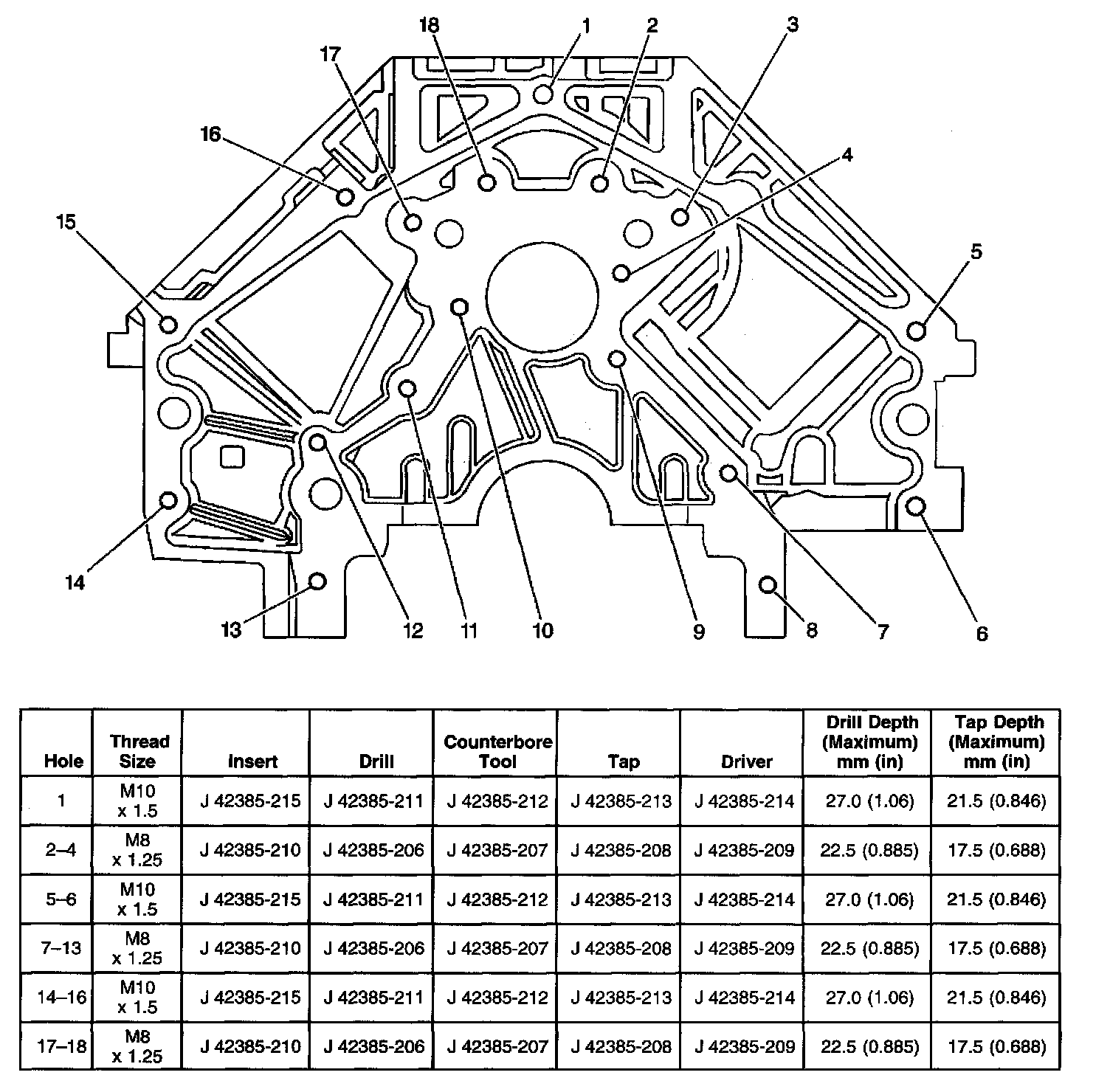

Engine Block-Front View





Part 1 of 2





Part 2 of 2

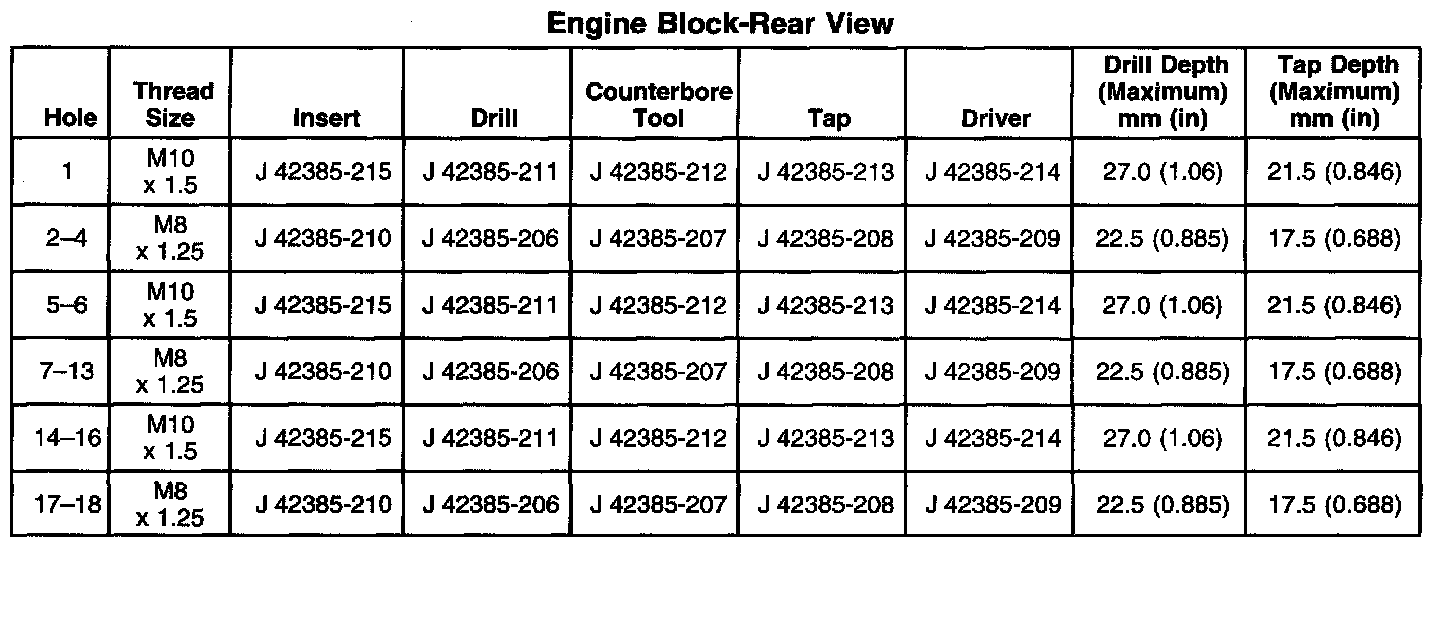

Engine Block Rear View





Part 1 of 2





Part 2 of 2

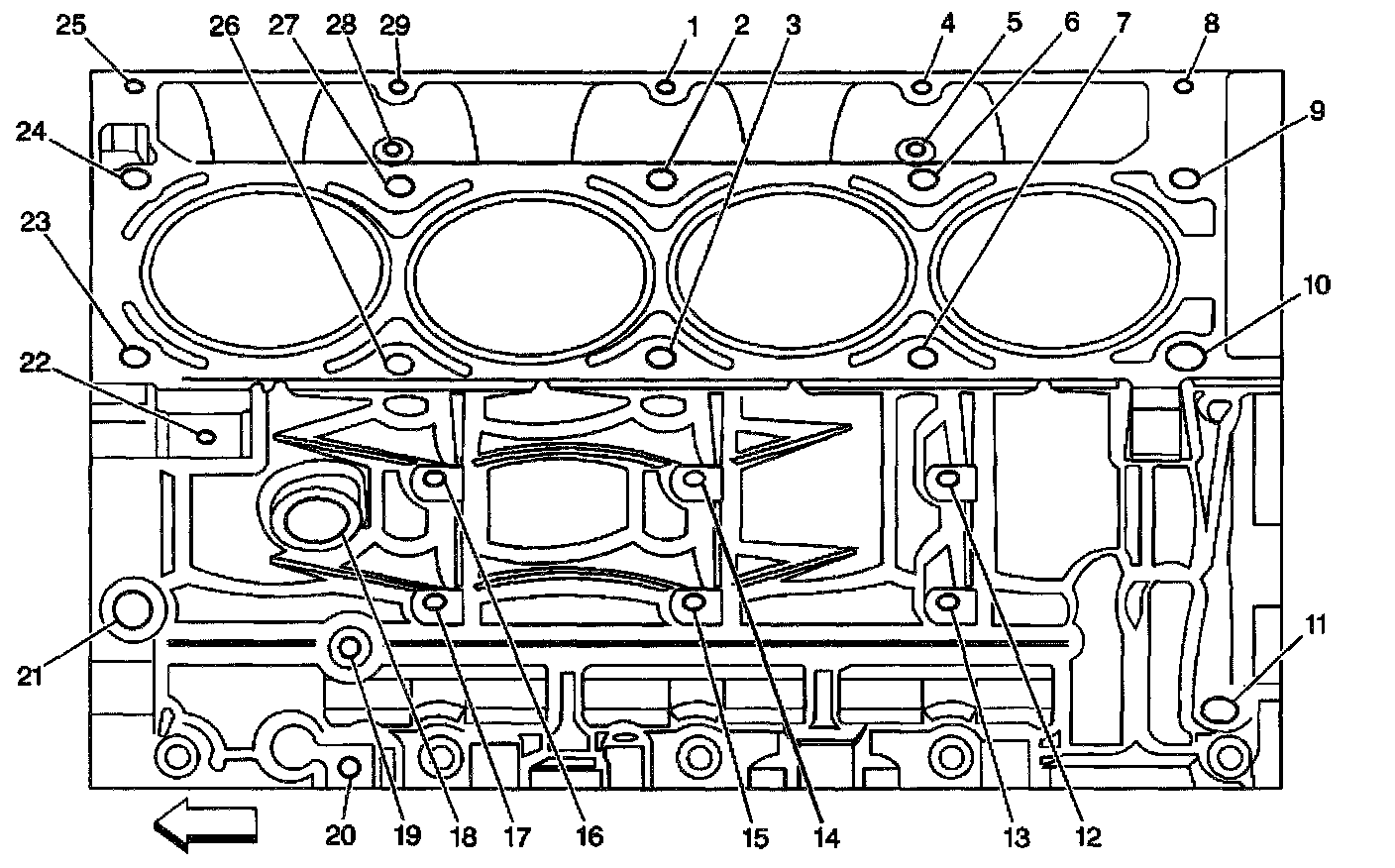

Engine Block-Left Side View





Part 1 of 2





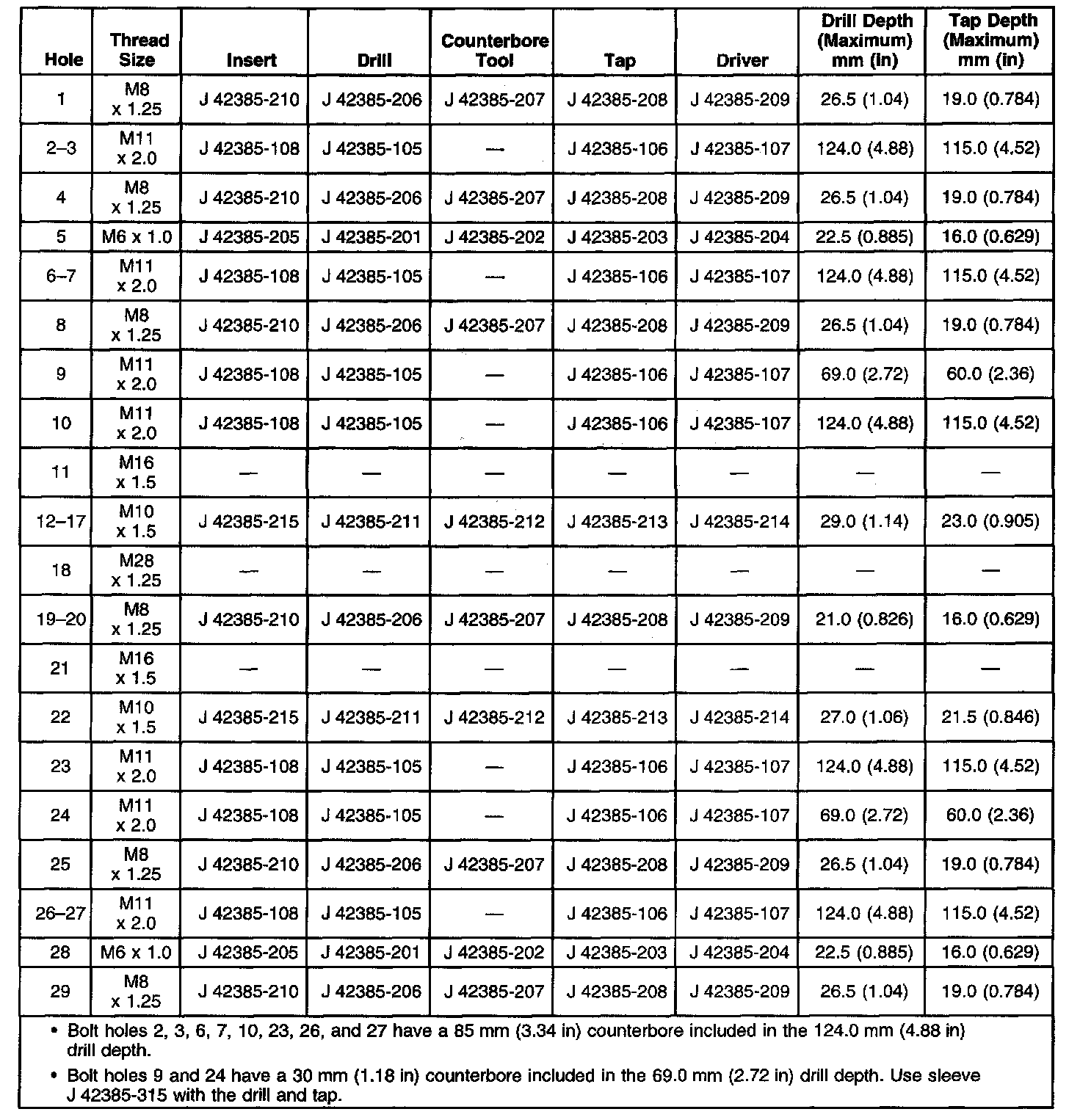

Part 2 of 2

Engine Block-Right Side View





Part 1 of 2





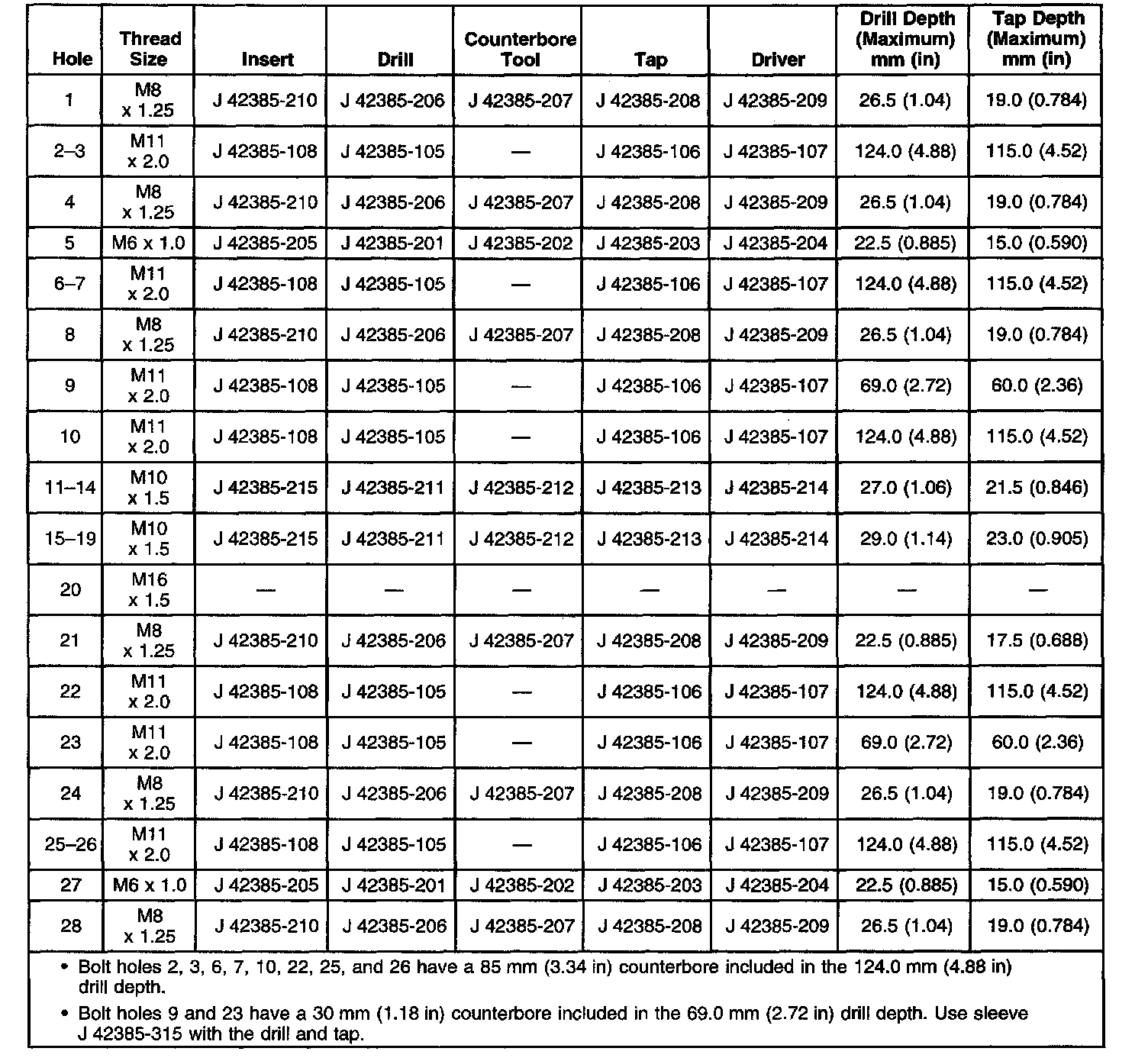

Part 2 of 2

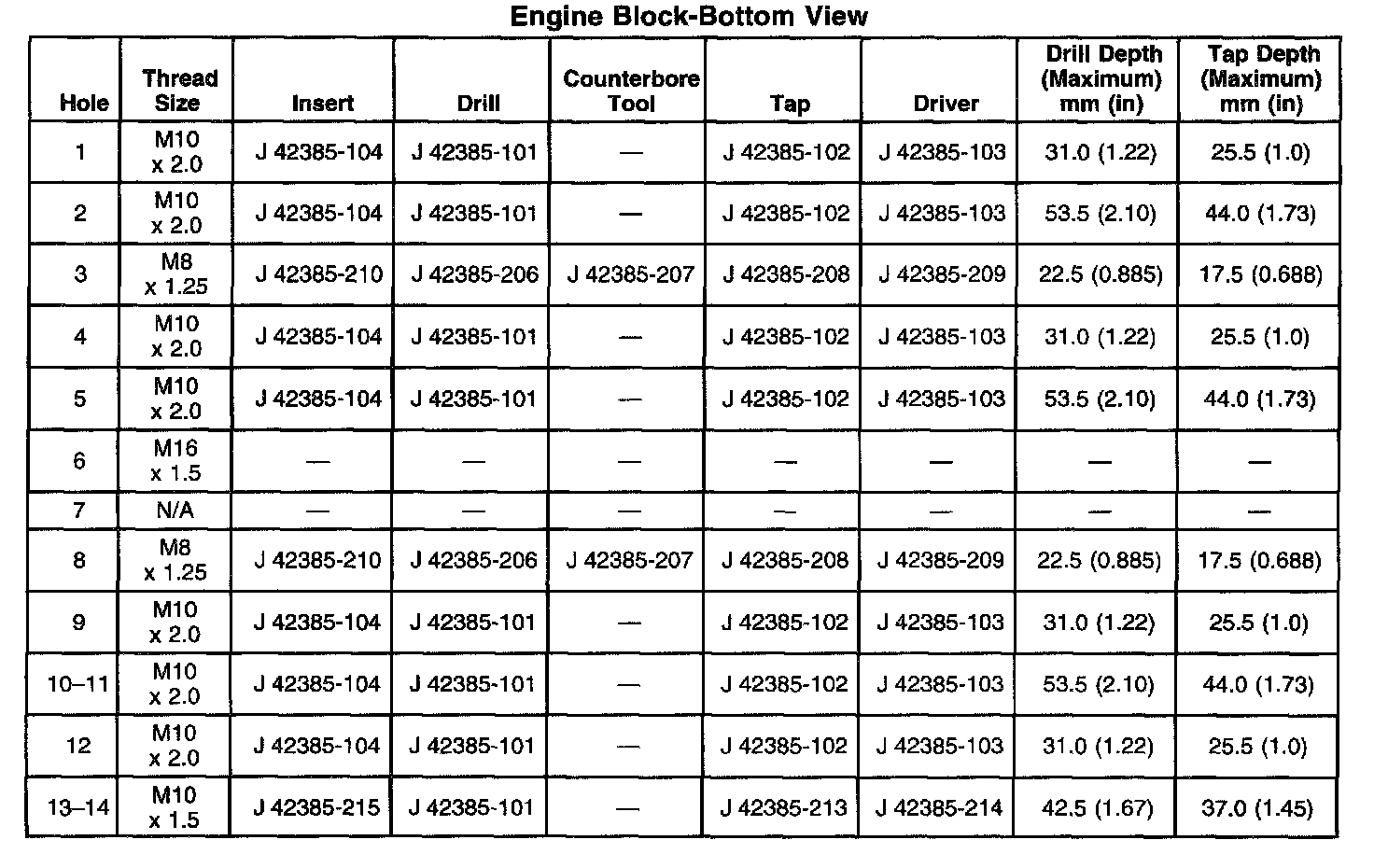

Engine Block-Bottom View





Part 1 of 3





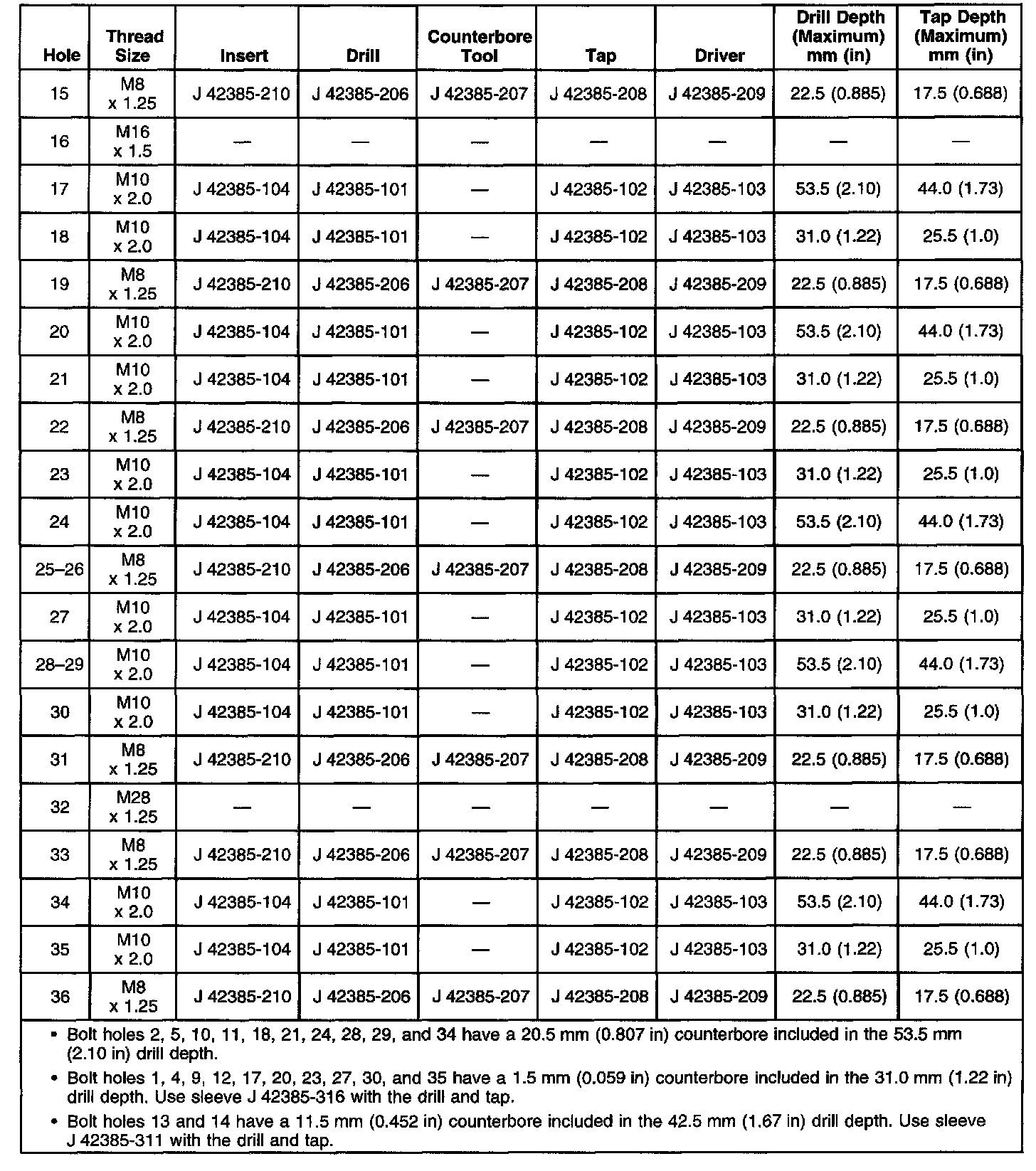

Part 2 of 3





Part 3 of 3

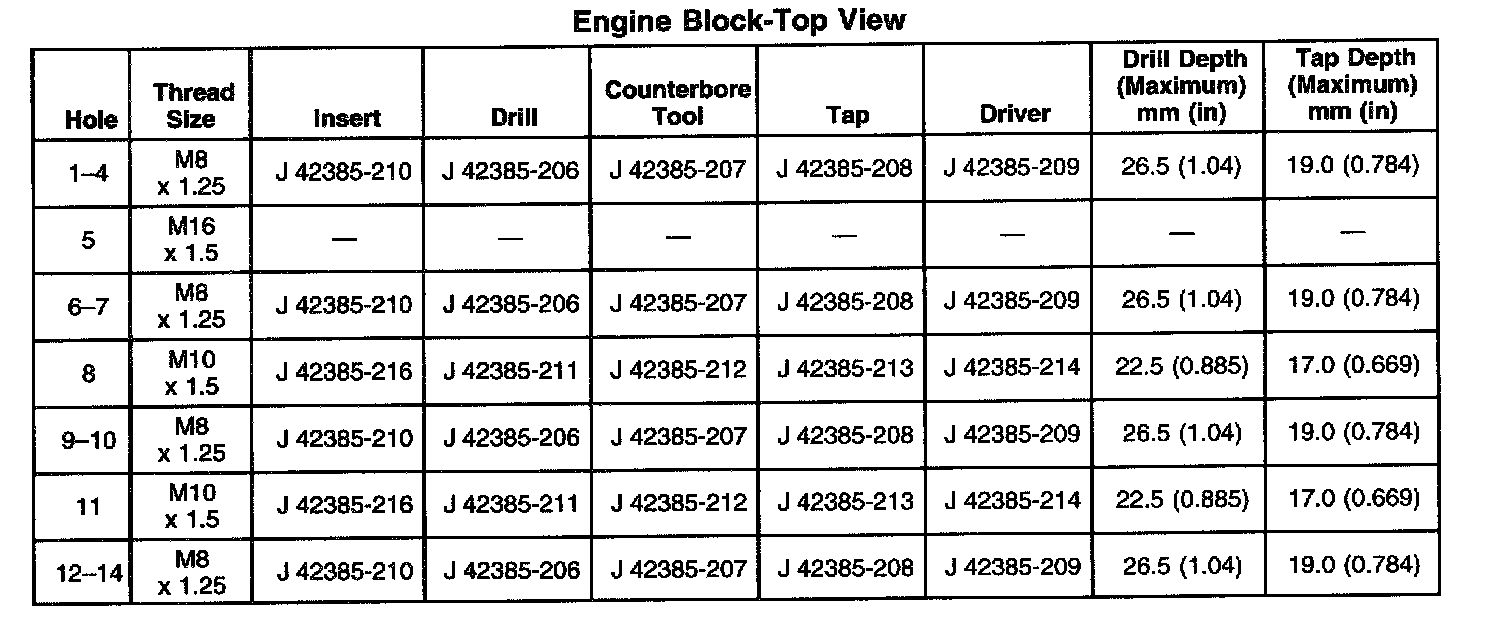

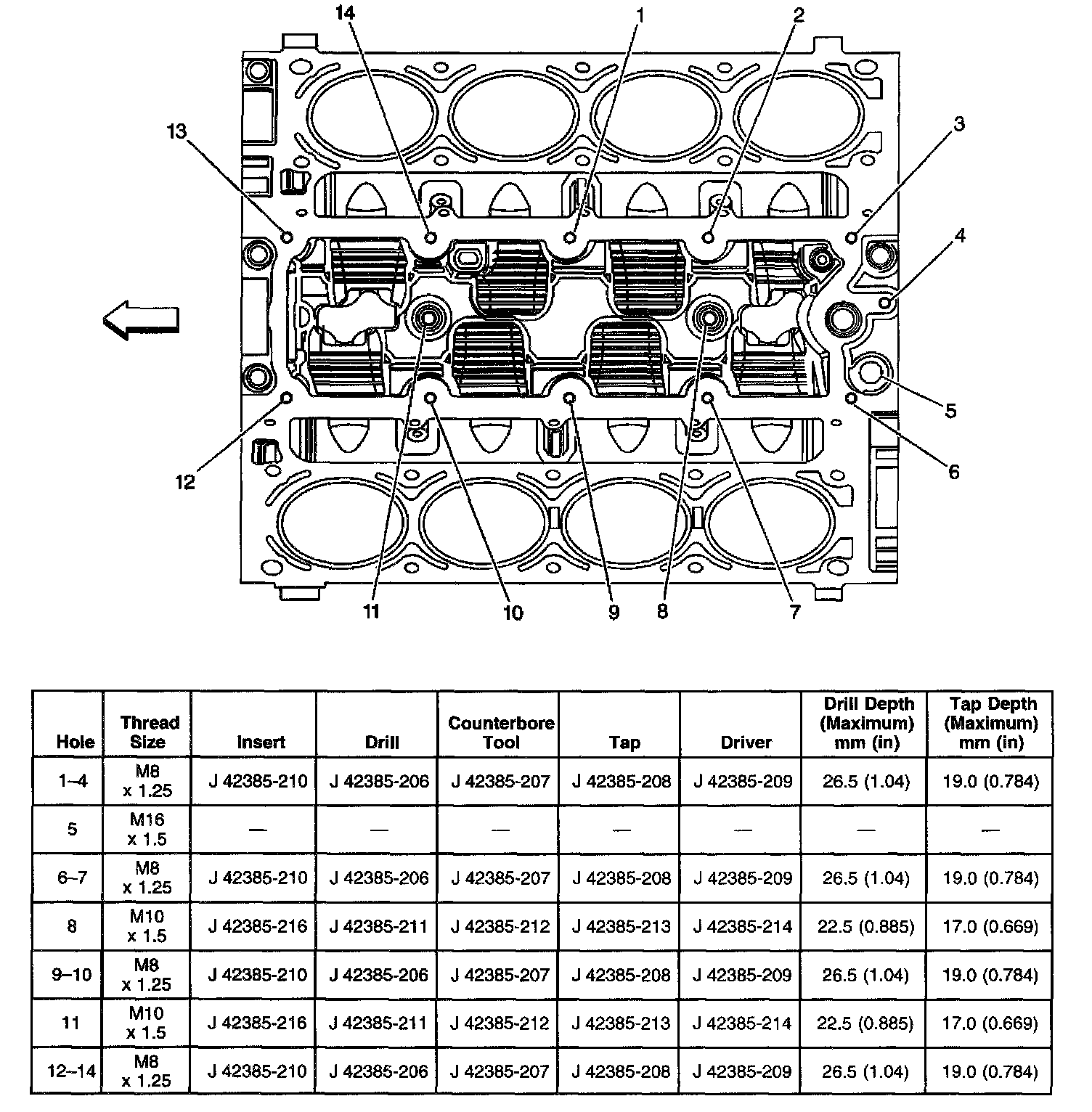

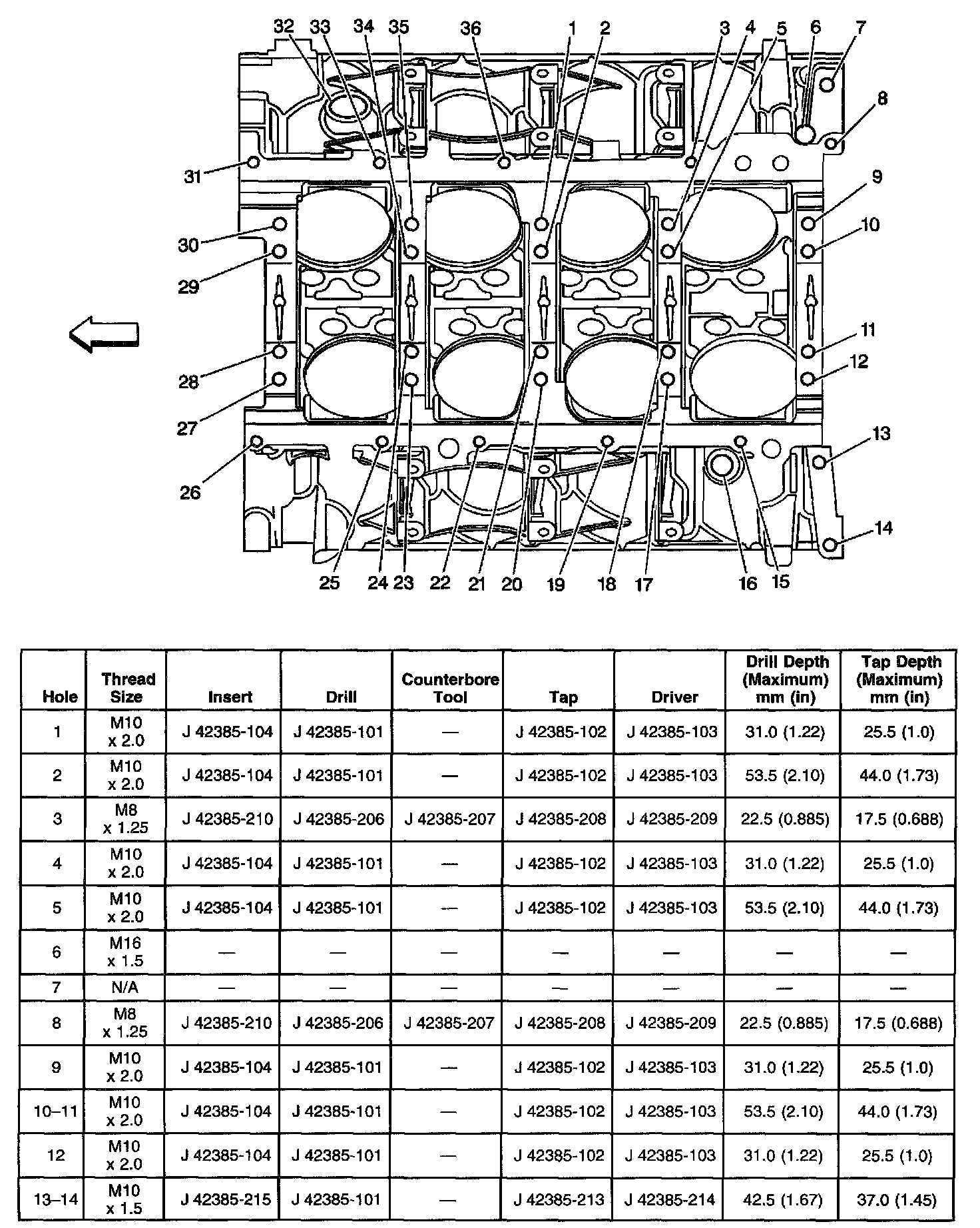

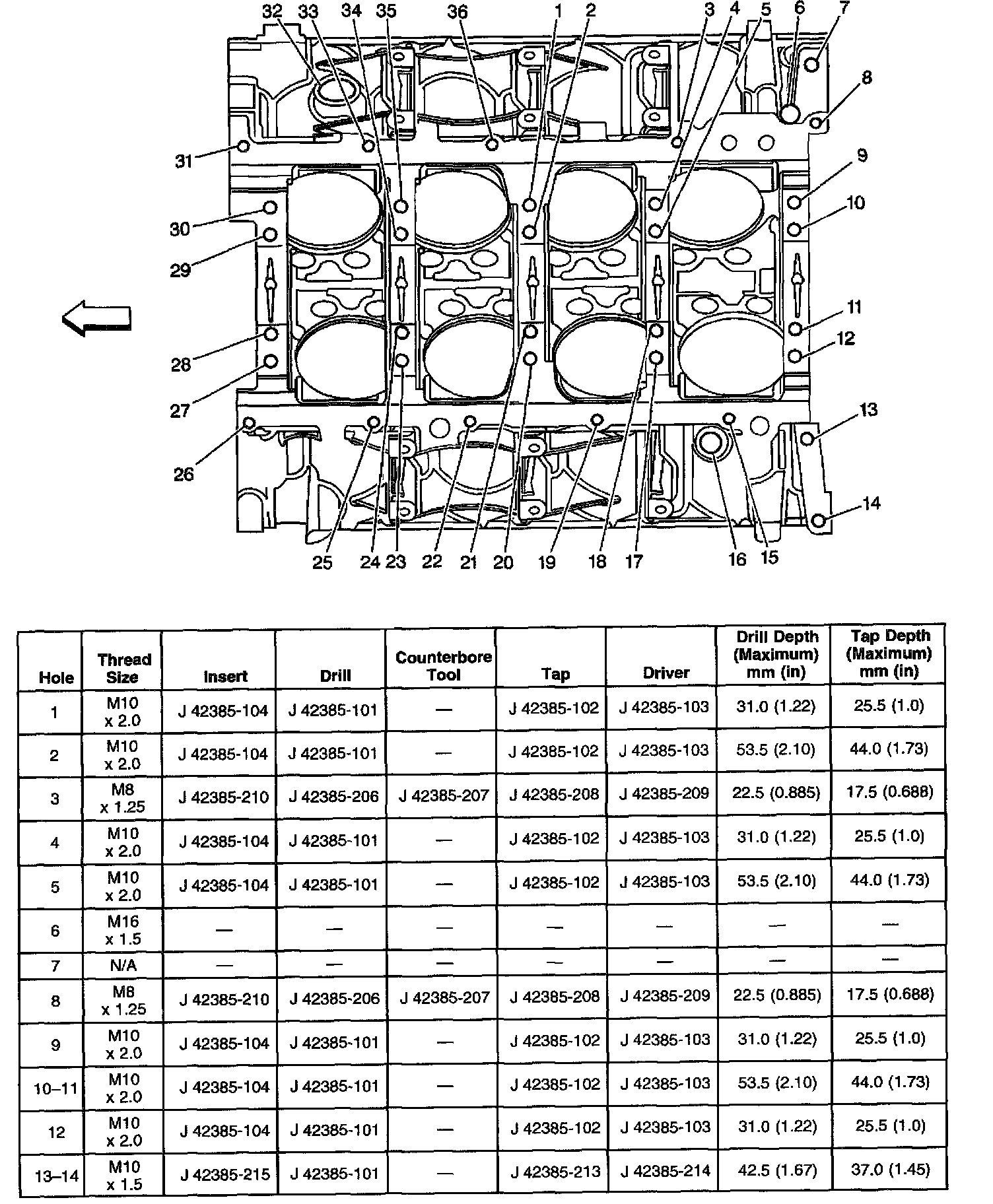

Engine Block-Top View





Part 1 of 2





Part 2 of 2

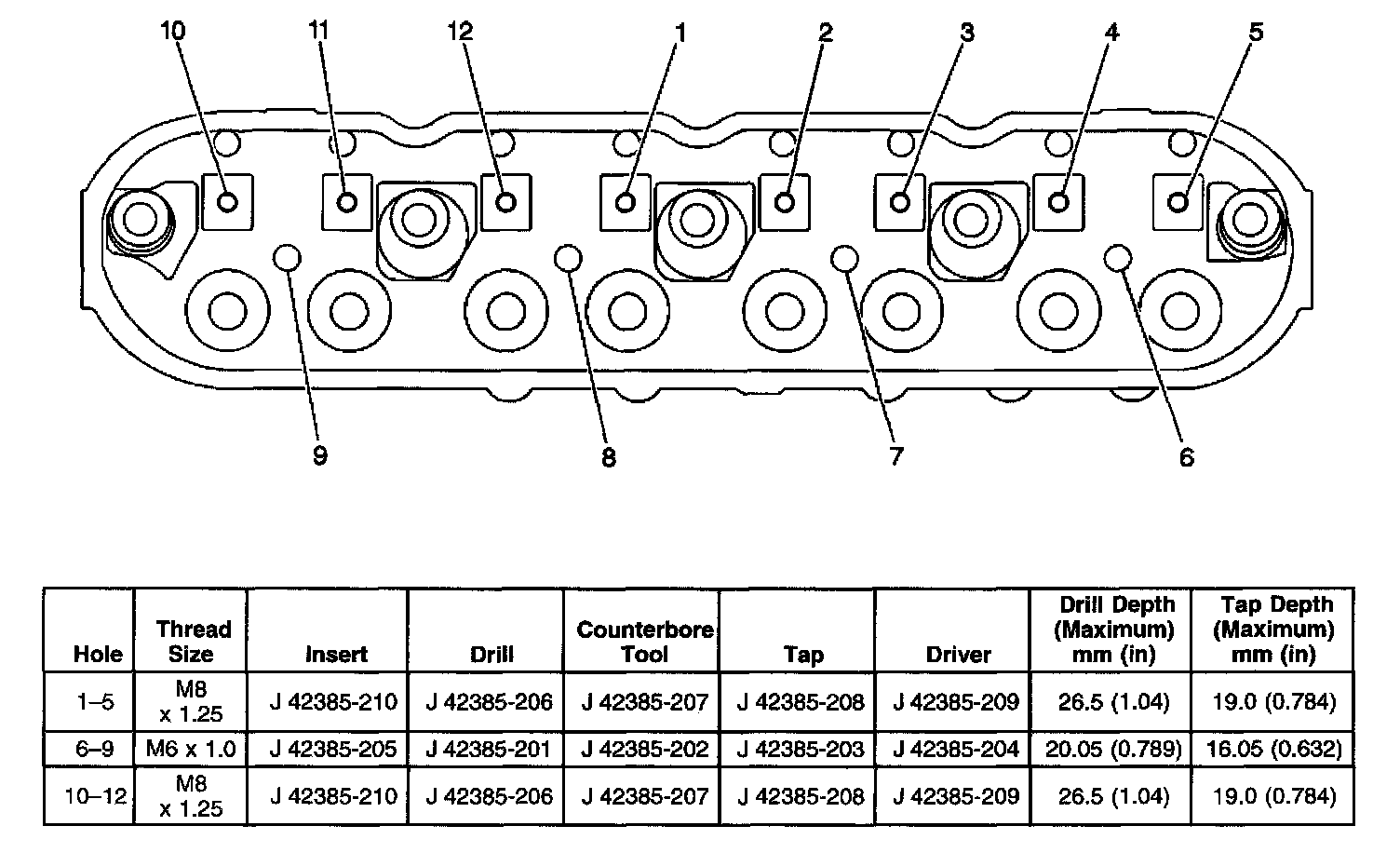

Cylinder Head-Top View





Part 1 of 2





Part 2 of 2

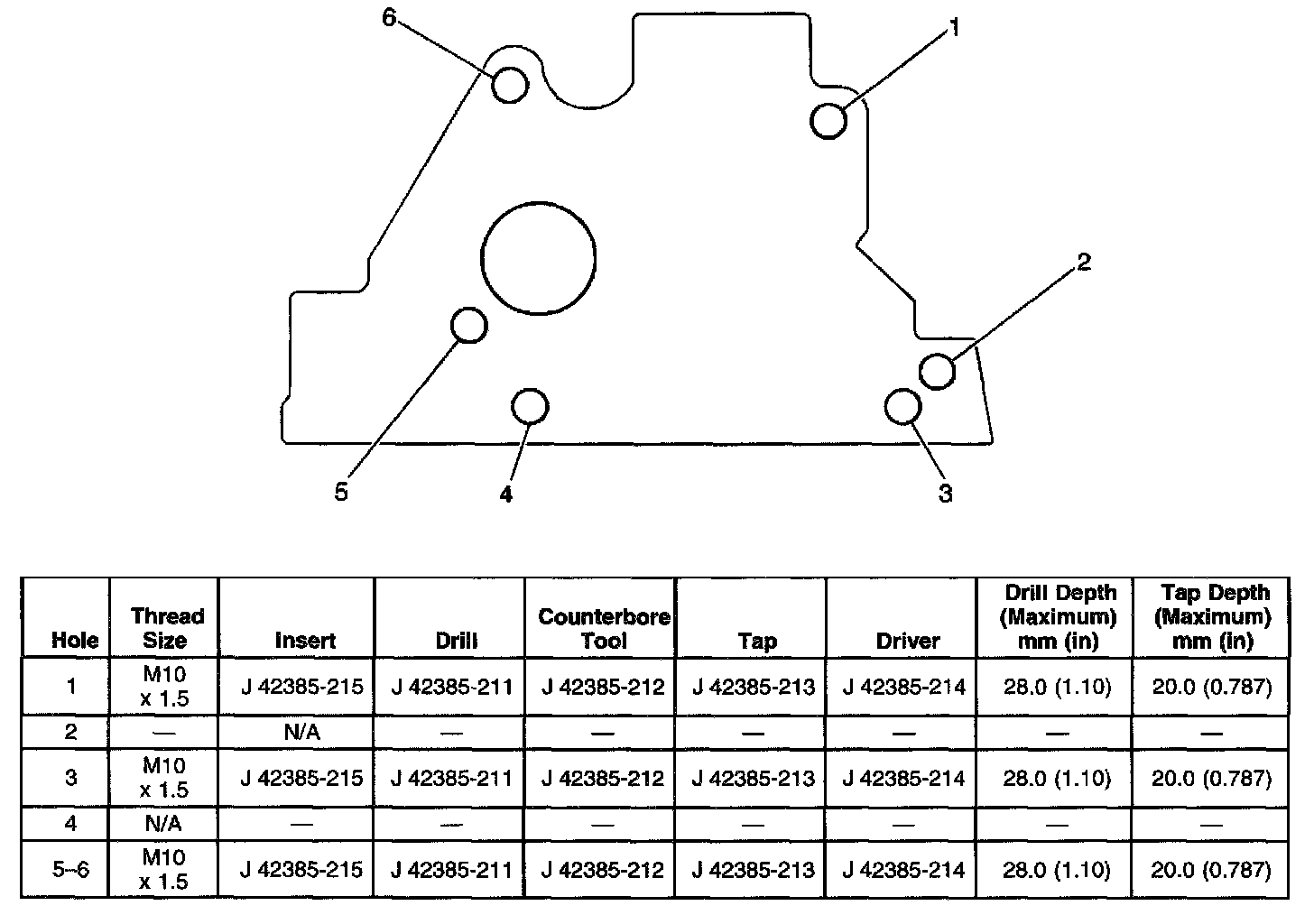

Cylinder Head-End View





Part 1 of 2





Part 2 of 2

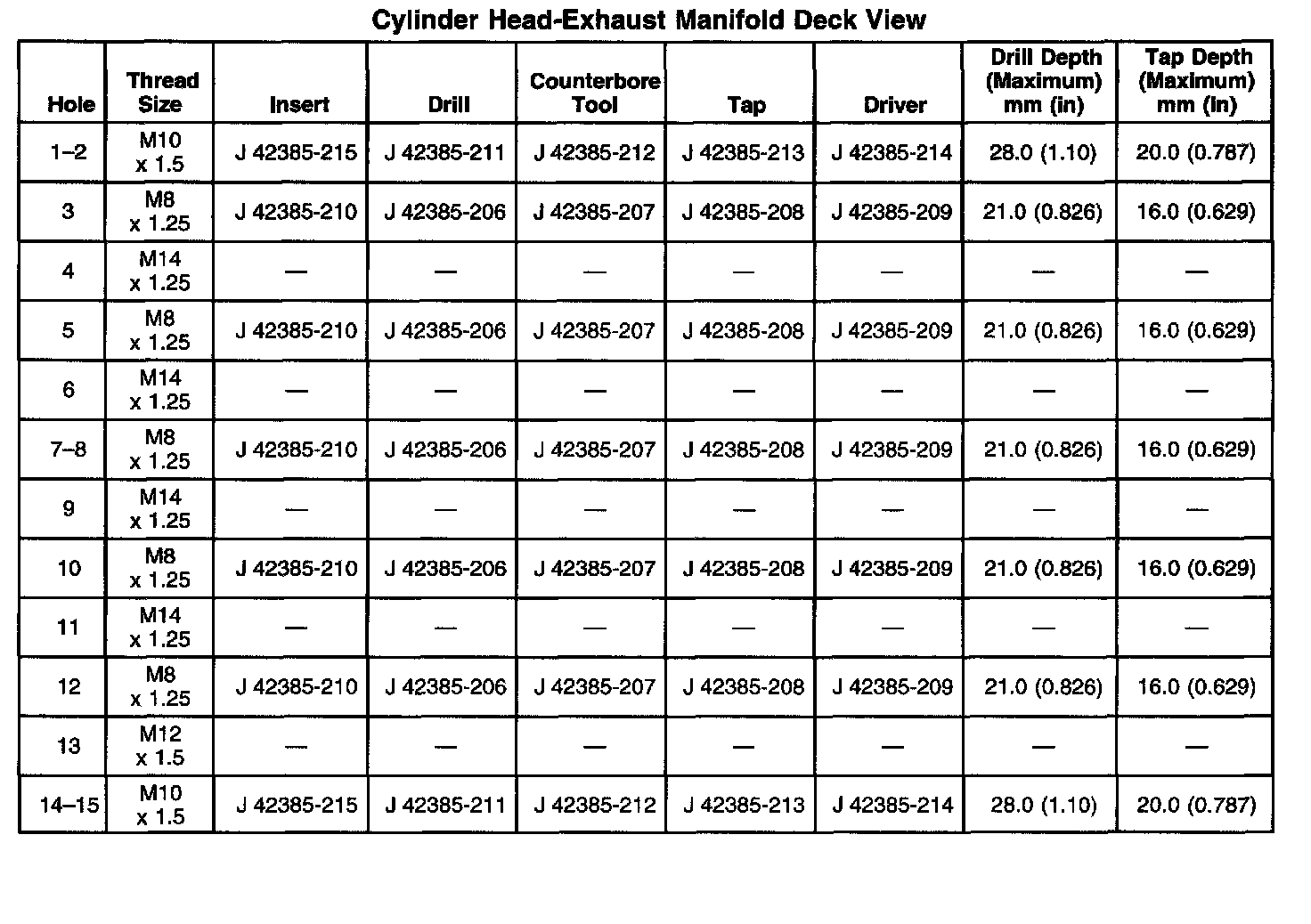

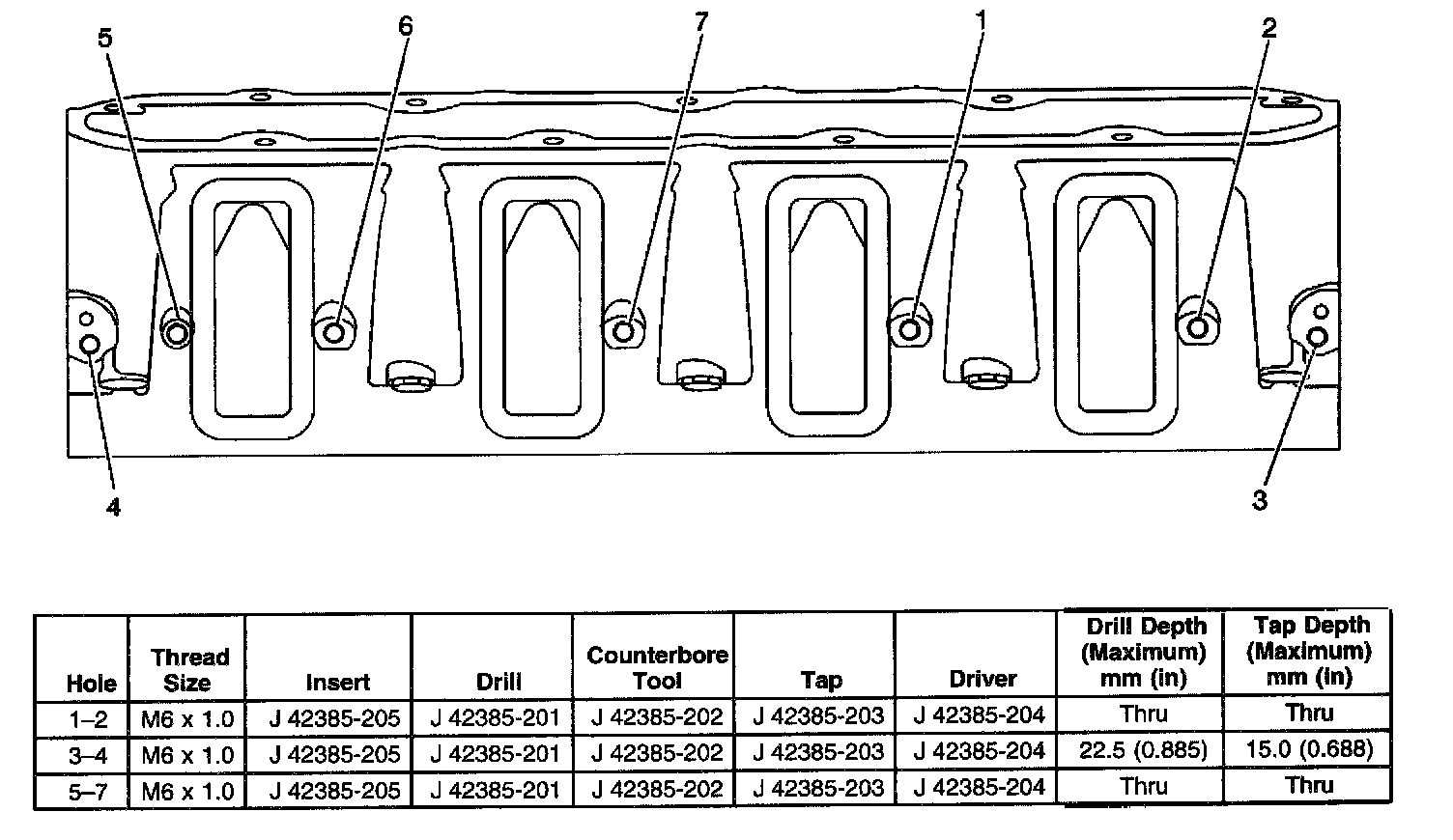

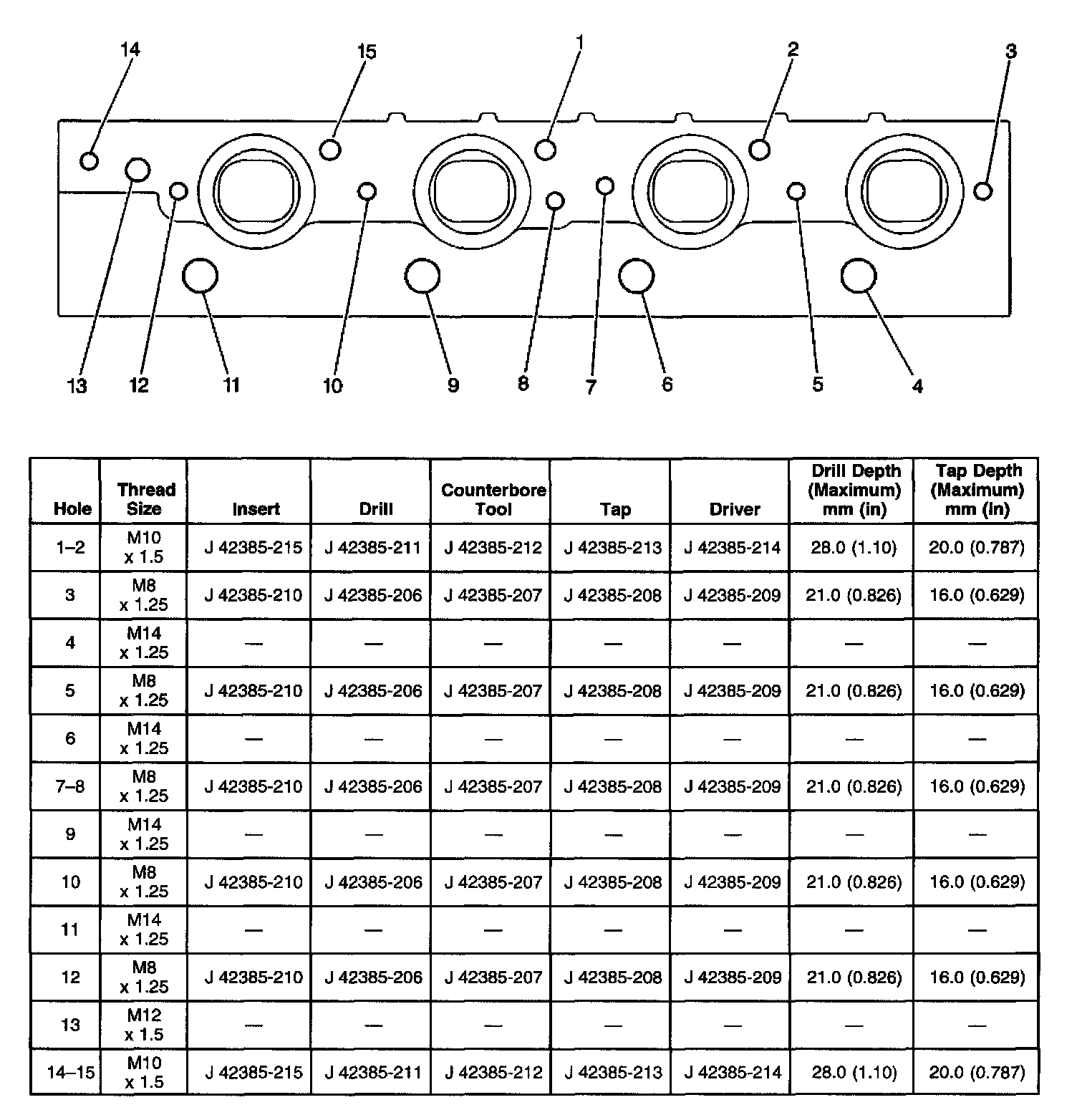

Cylinder Head-Exhaust Manifold Deck View





Part 1 of 2





Part 2 of 2

Cylinder Head-Intake Manifold Deck View





Part 1 of 2





Part 2 of 2
