Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Steering Column - Telescoping

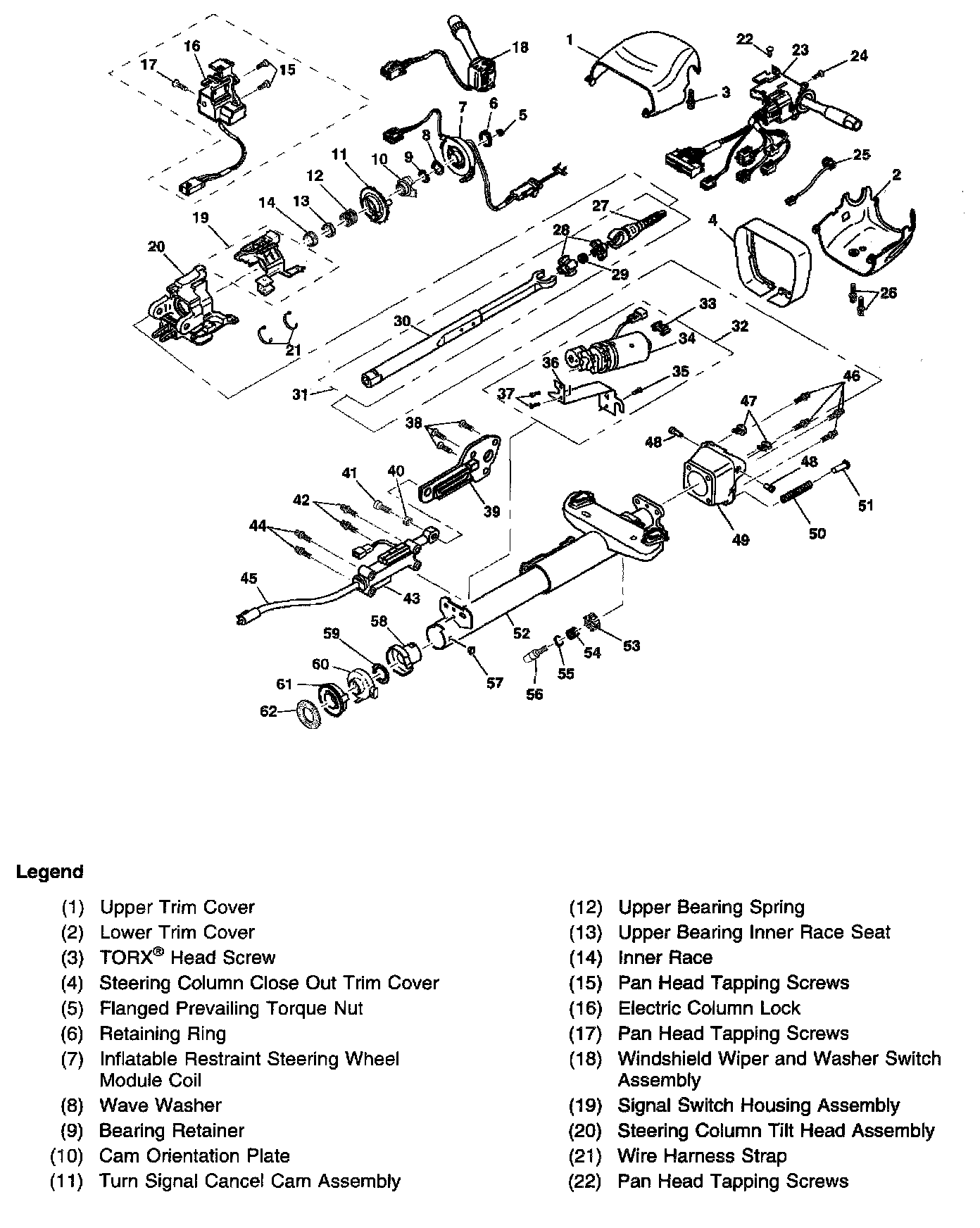

Steering Column - Telescoping

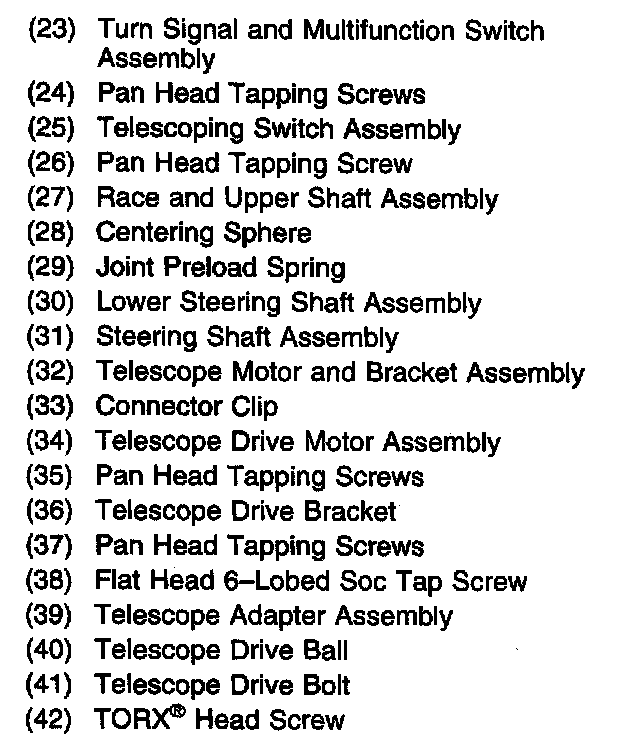

Part 1 of 3





Part 2 of 3





Part 3 of 3
