Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Intake Manifold/Upper Engine Pinning

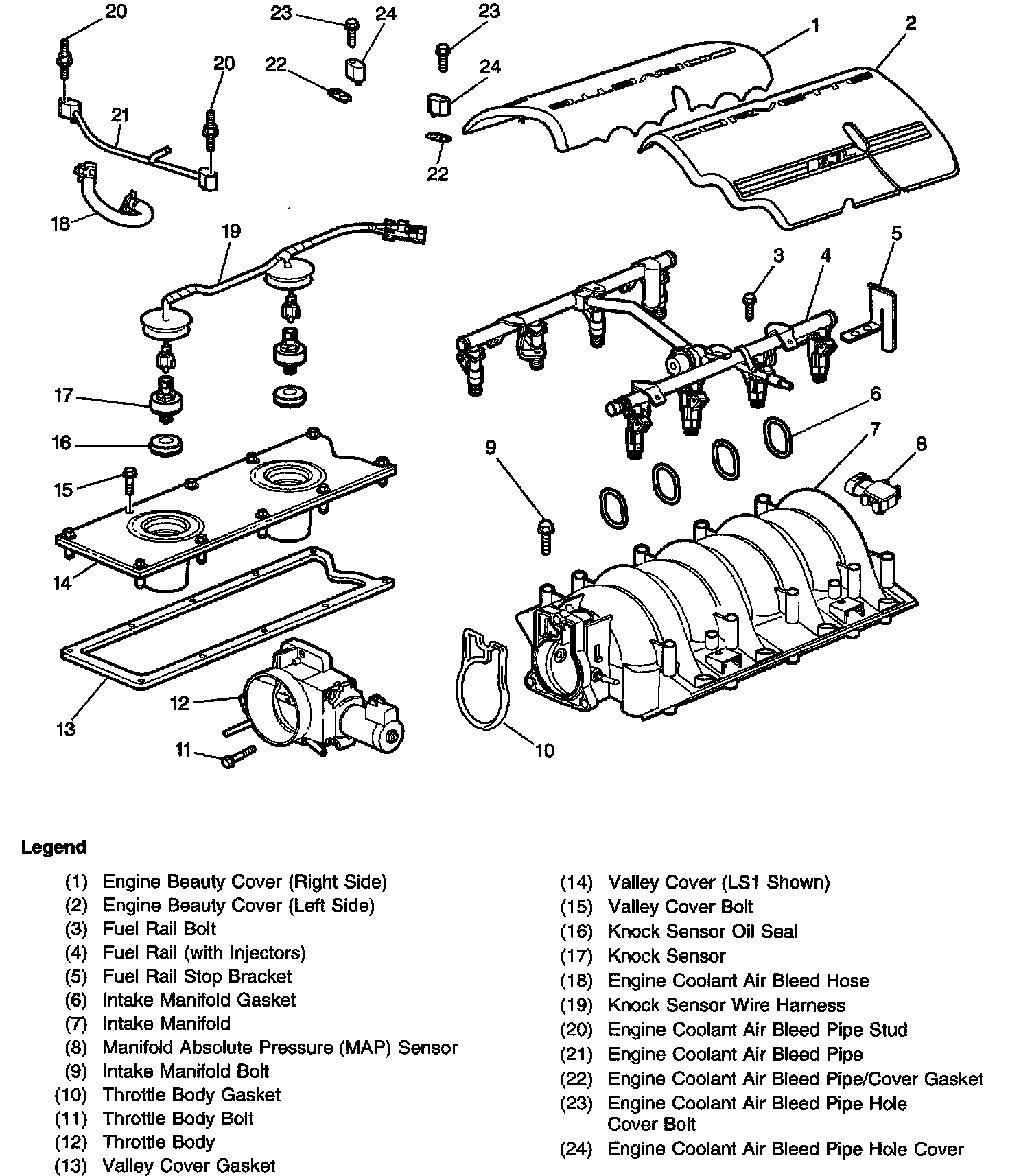

Intake Manifold/Upper Engine Pinning
