Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

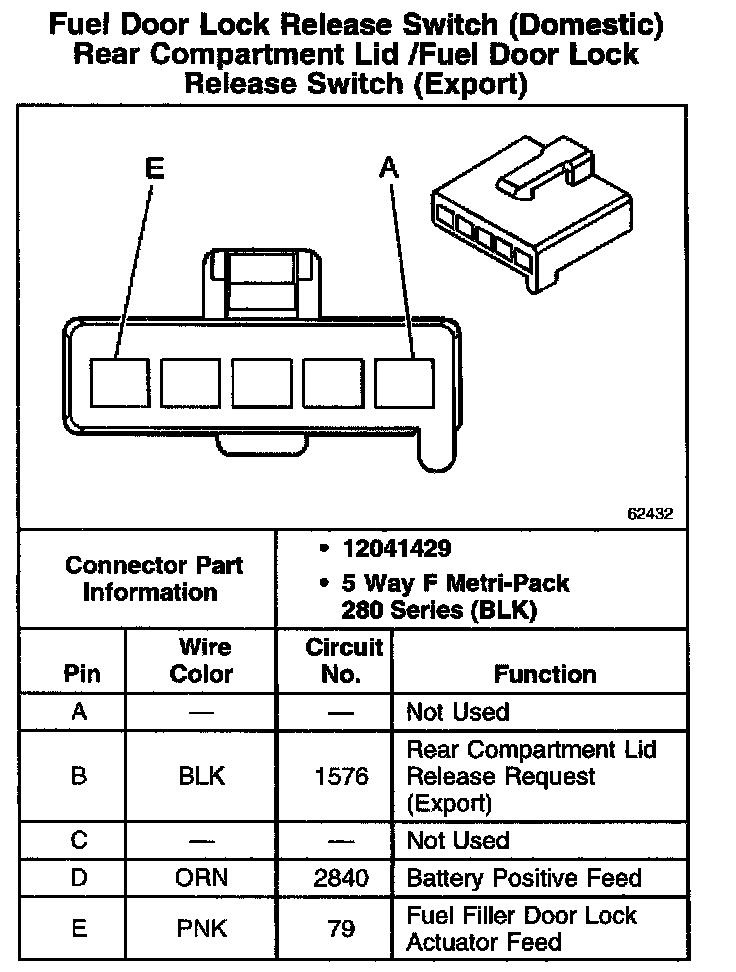

Fuel Door Lock Release Switch (Domestic) Rear Compartment Lid/Fuel Door Lock Release Switch (Export):
