Vehicle Speed Output

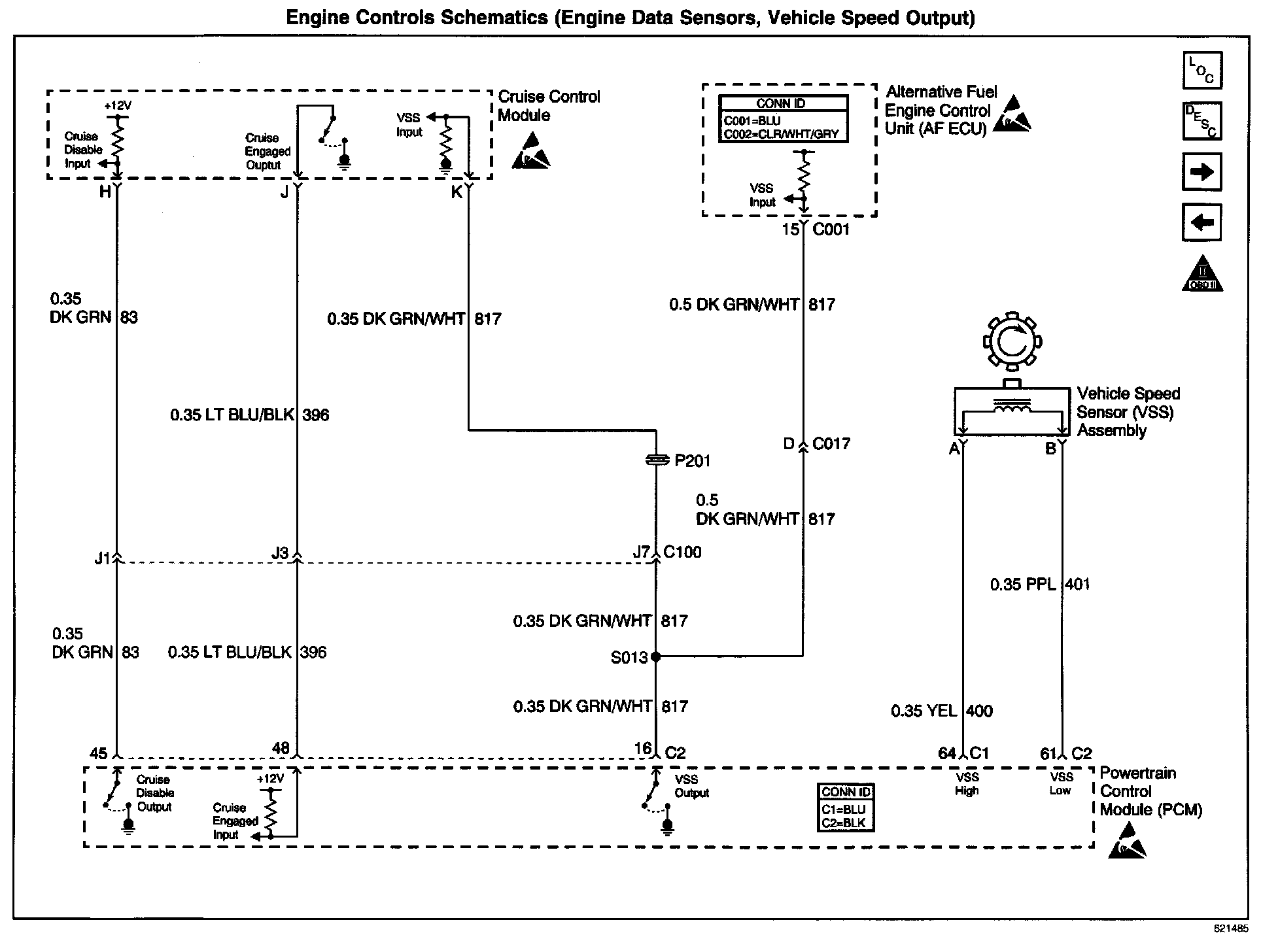

Engine Controls Schematics: Engine Data Sensors, Vehicle Speed Output - Bi-Fuel/Alternative Fuels:
