Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Connector Views >> Park/Neutral Position (PNP) Switch C2

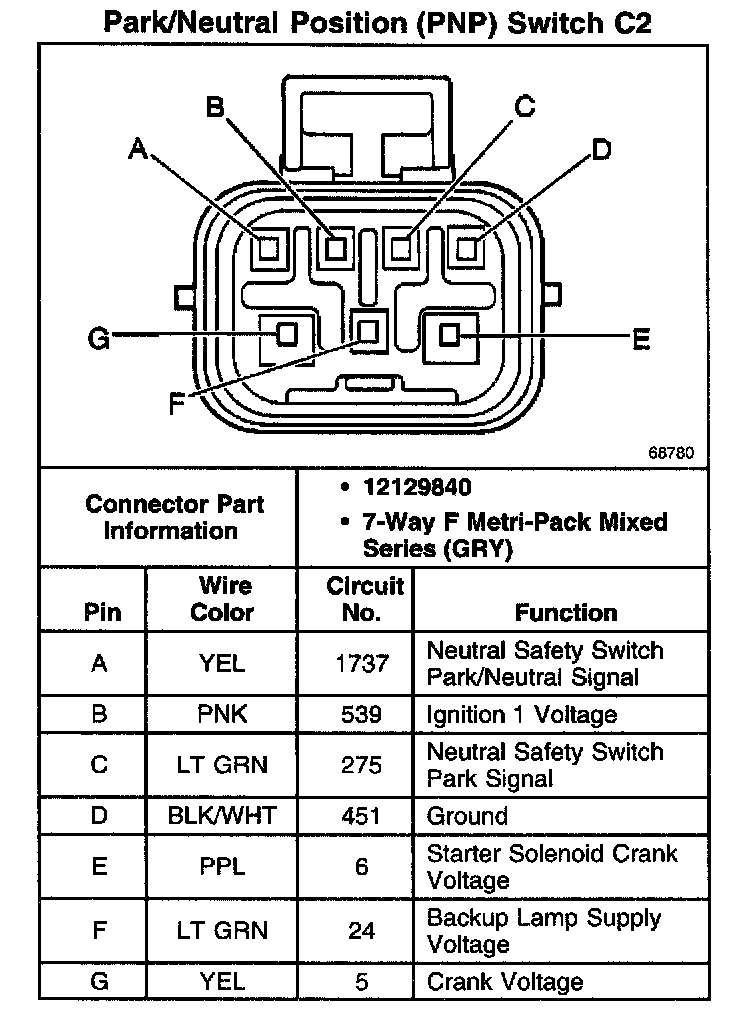

Park/Neutral Position (PNP) Switch C2

Park/Neutral Position (PNP) Switch C2:
