Diagram Information and Instructions
>>
Electrical Symbols
Electrical Symbols

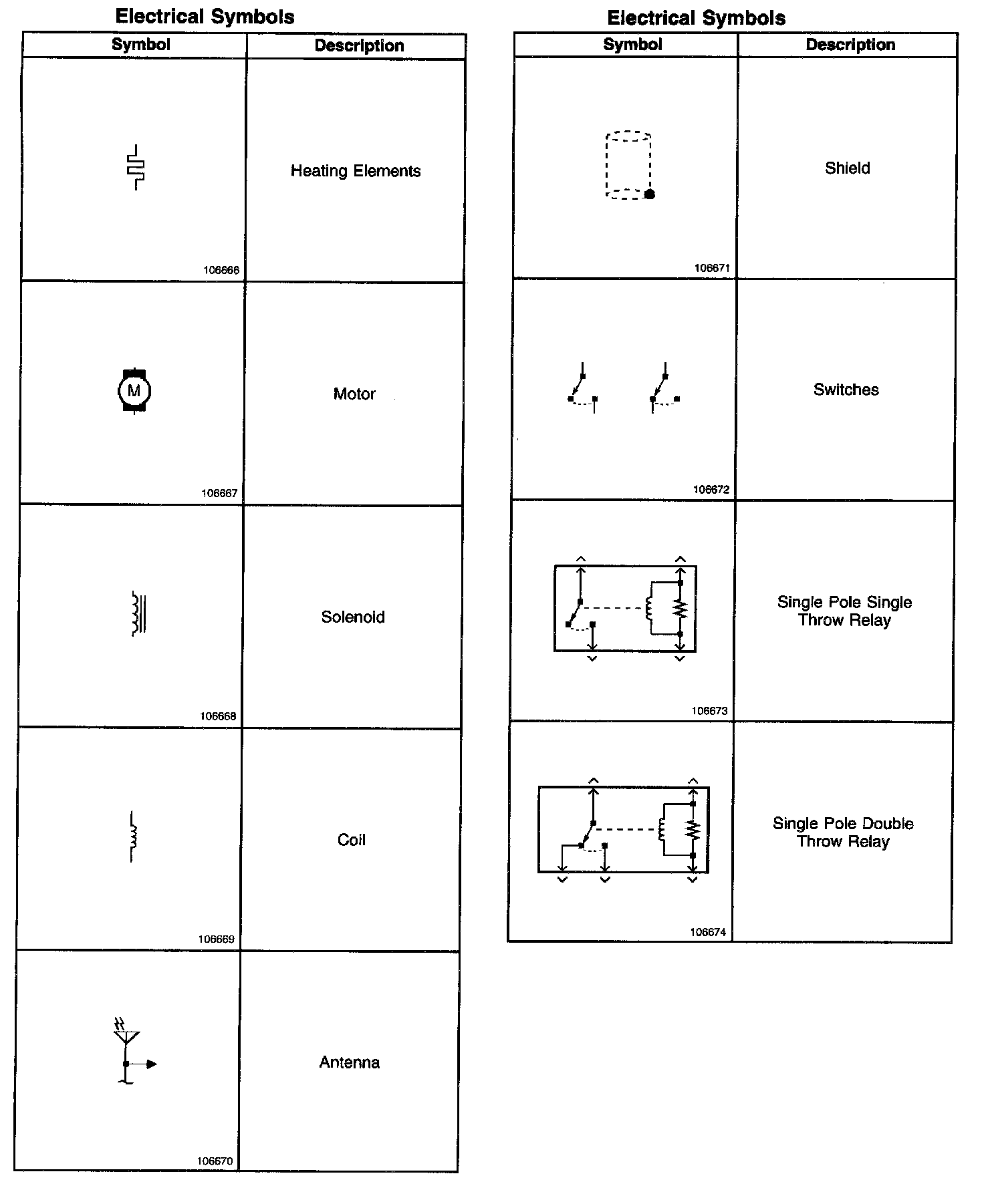

Electrical Symbols (Part 1 Of 4):

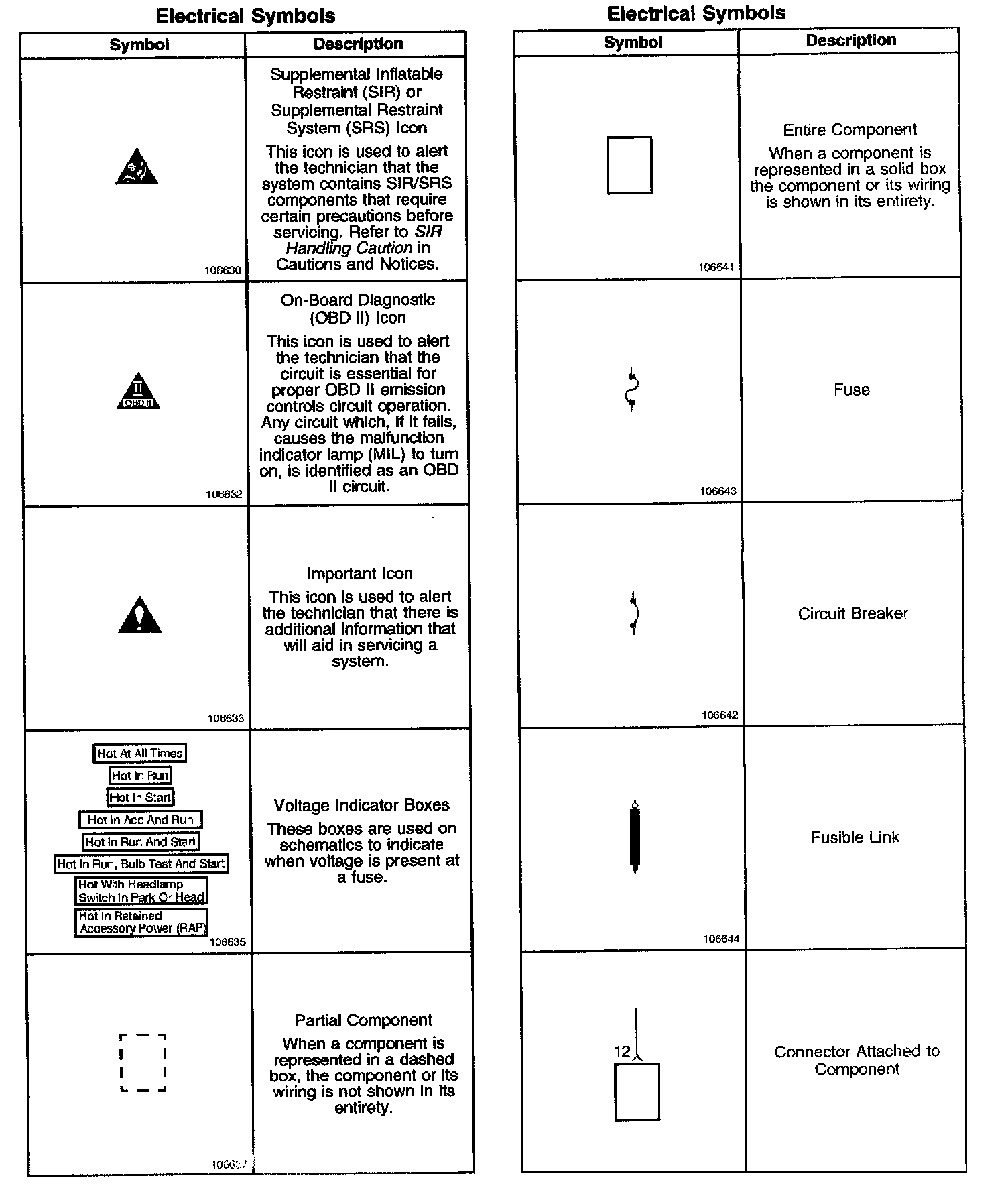

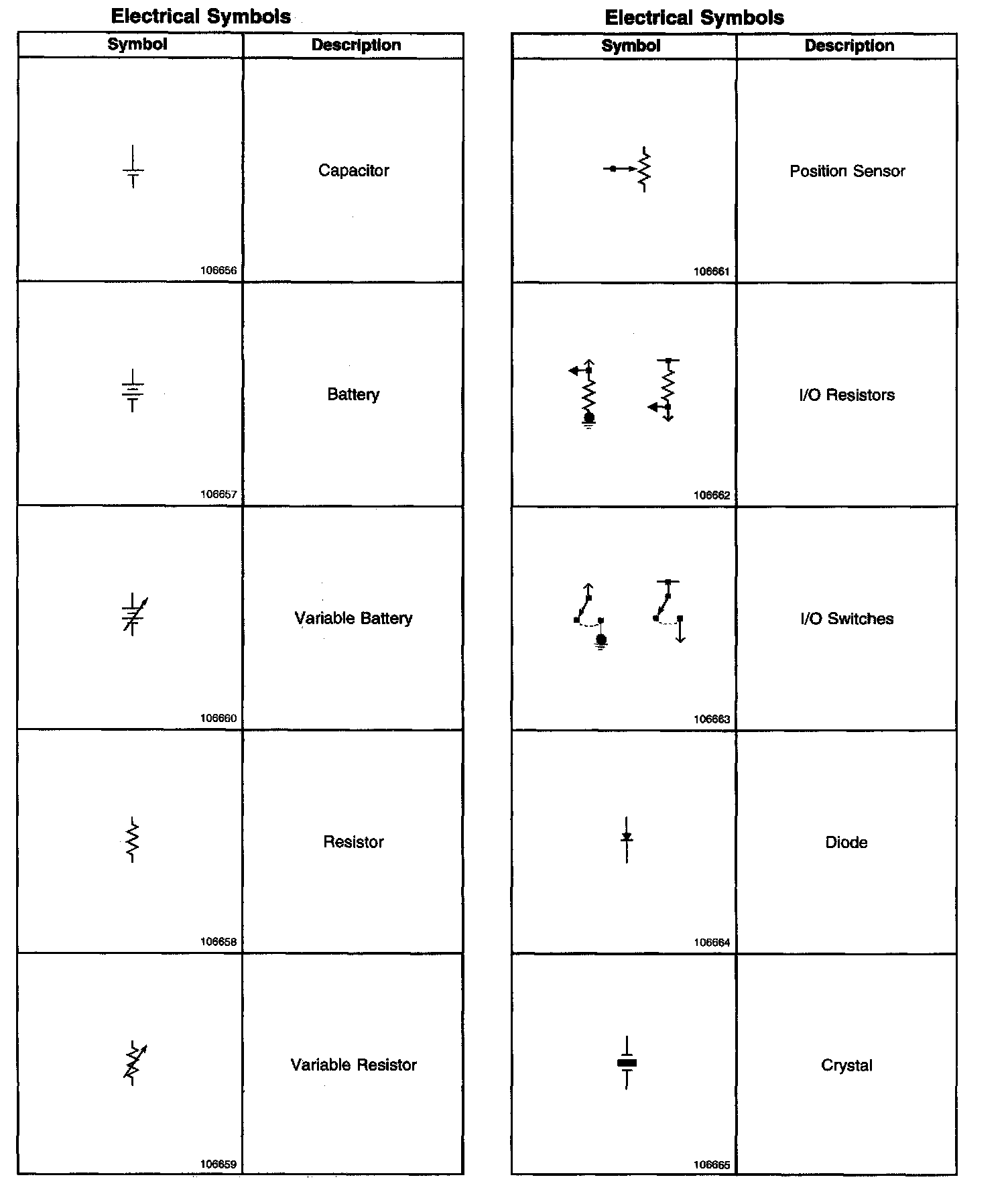

Electrical Symbols:

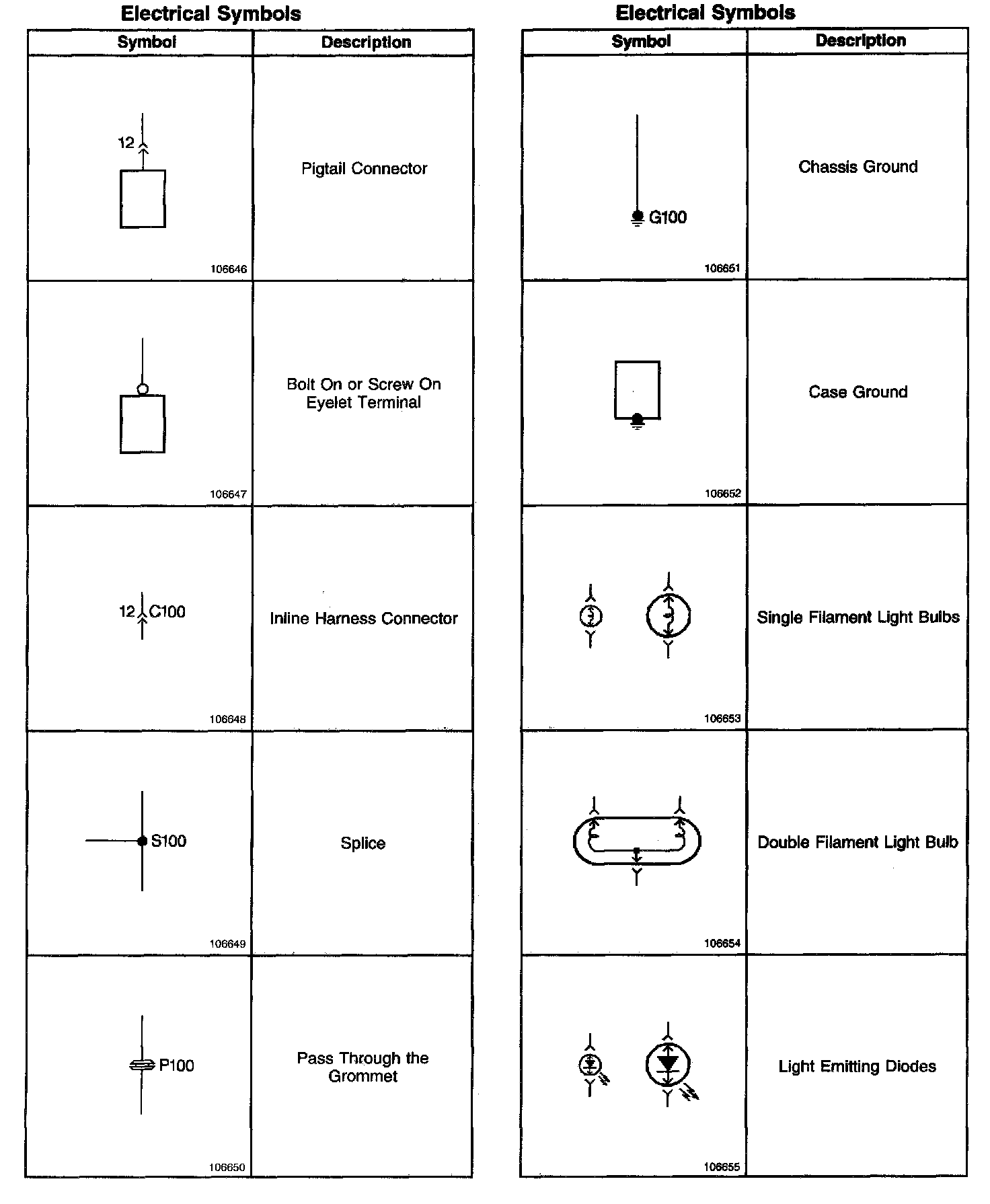

Electrical Symbols:
