Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Free-Motion Design-Front Wheel Halfshaft

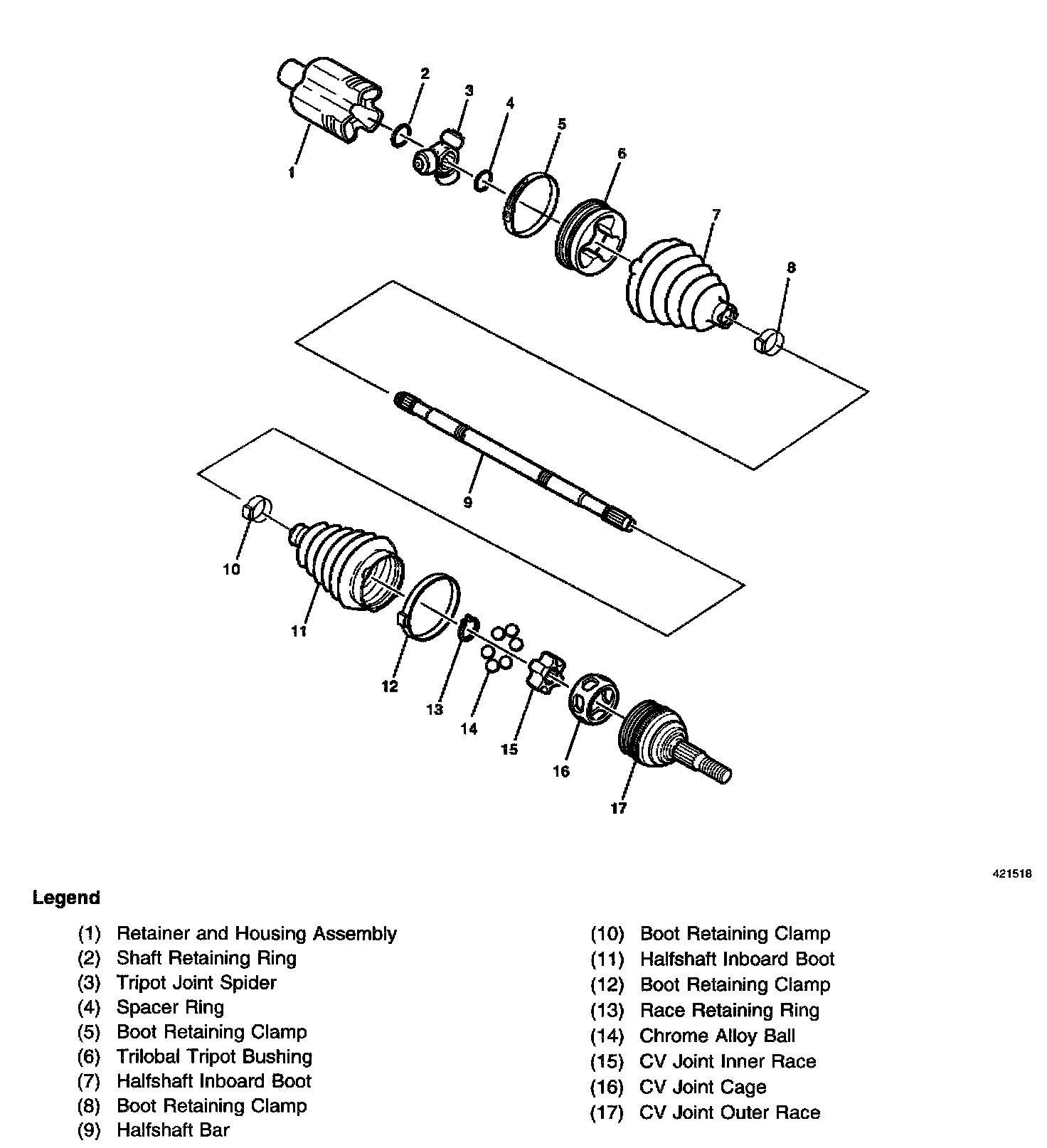

Free-Motion Design-Front Wheel Halfshaft
